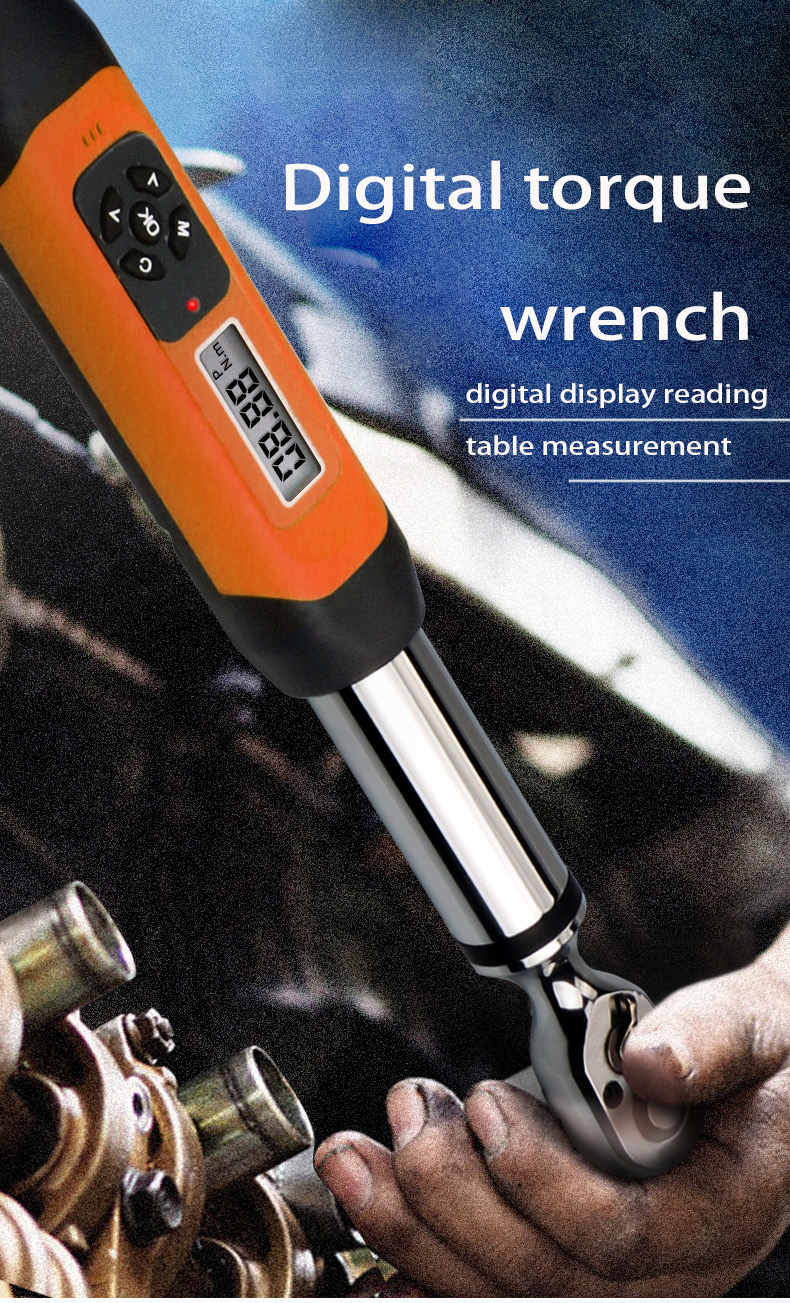

Truck Tire Maintenance Torque Wrench - High Precision & Adjustable

Economical ratchet head digital display torque wrench and adjustable head digital display torque wrench are different from common torque wrench. Among them, the adjustable head wrench with its own ratchet head can be replaced at open-oral head, plum head, movable opening head plug. Both have powerful operational capabilities, including: set torque, set unit, save data, delete data, export data and user-friendly control. The digital display reduces the difficulty of the operation and the requirements of users.

Product Detail

Pictures Details

product detail

Features

● Digital screen display to show the torque data.

● Precision : Clockwise ±2%, counterclockwise ±2.5%.

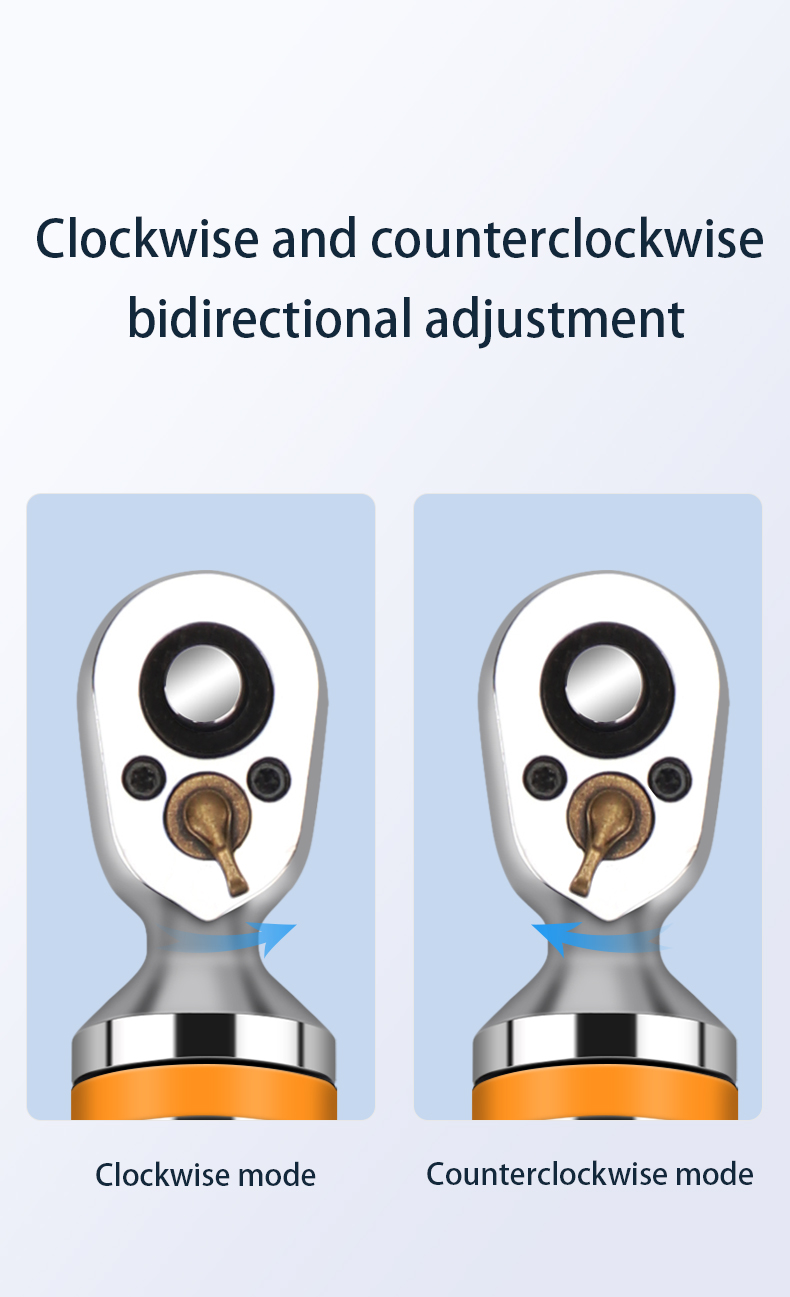

● Clockwise and counterclockwise bidirectional adjustment.

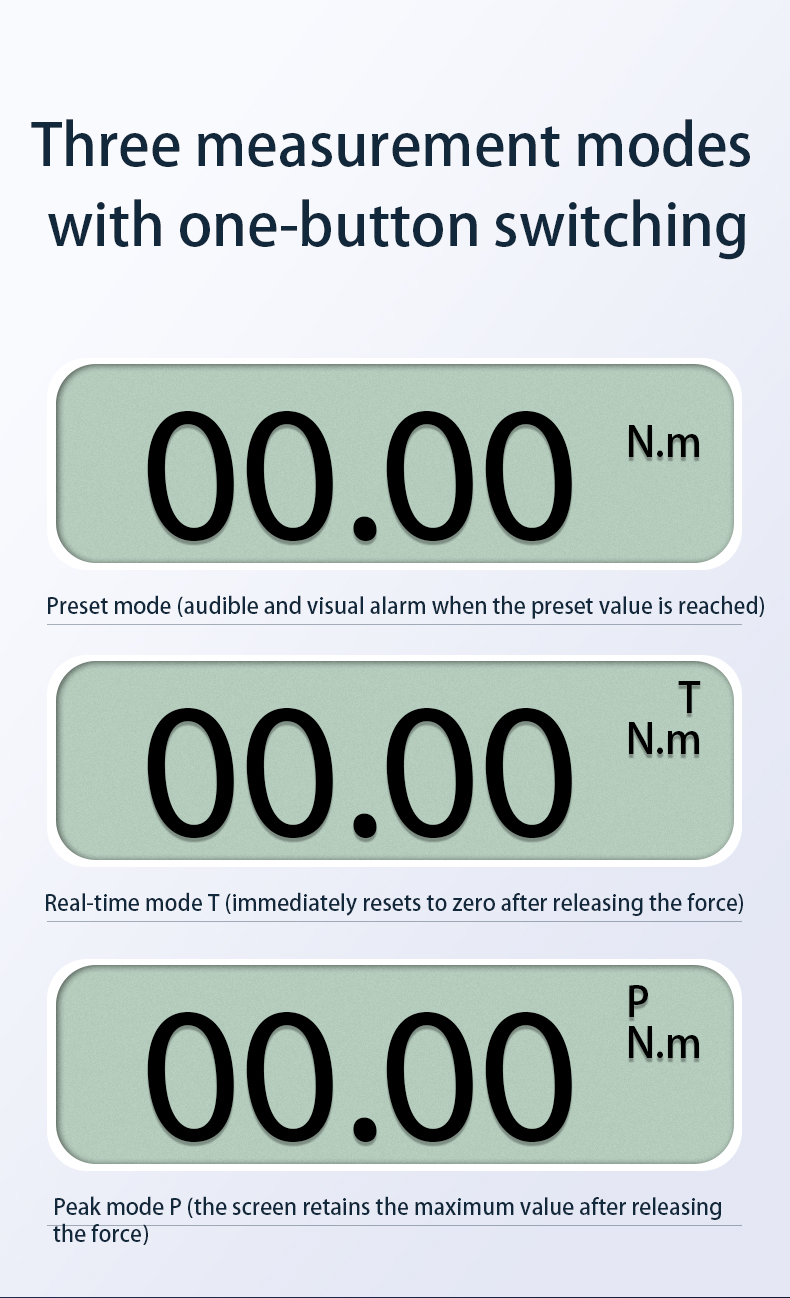

● One-click switch between peak mode and real-time mode.

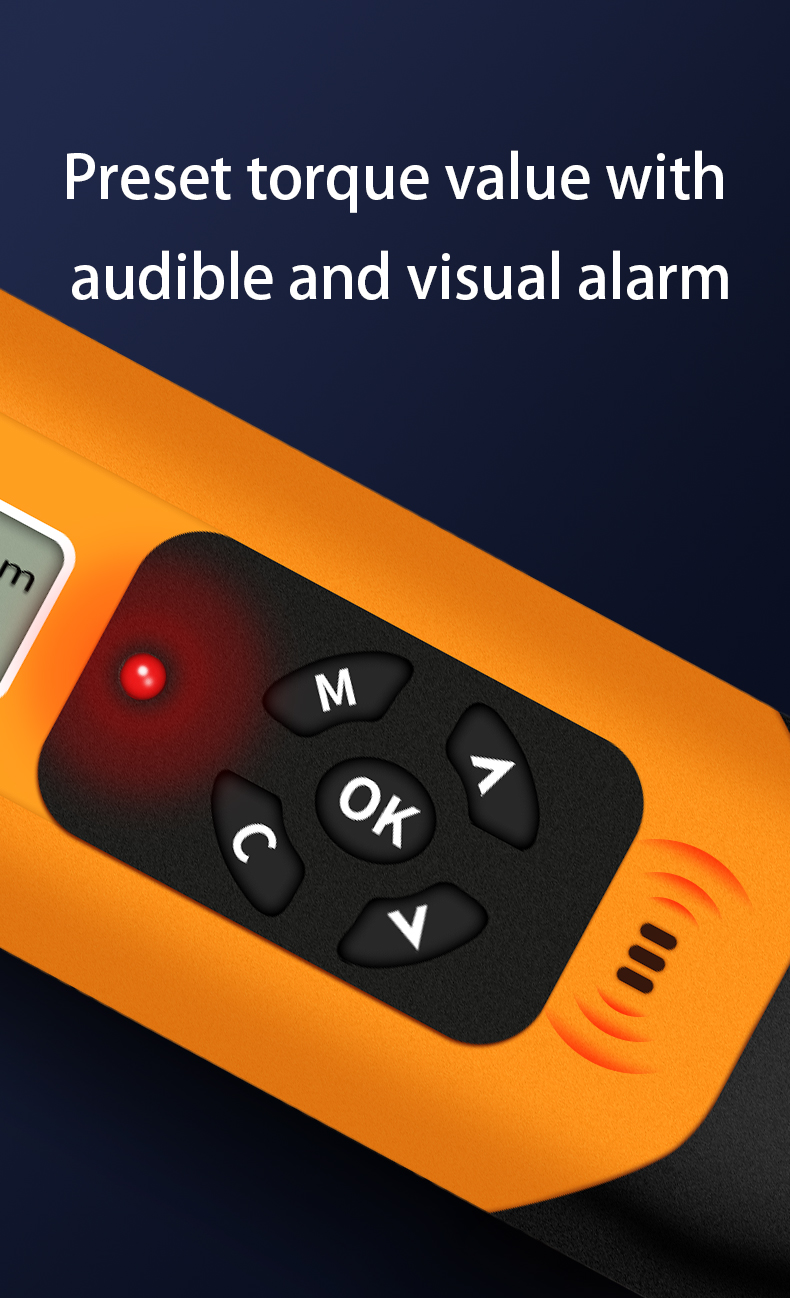

● Buzzer and LCD Light alarm (When preset value is reached).

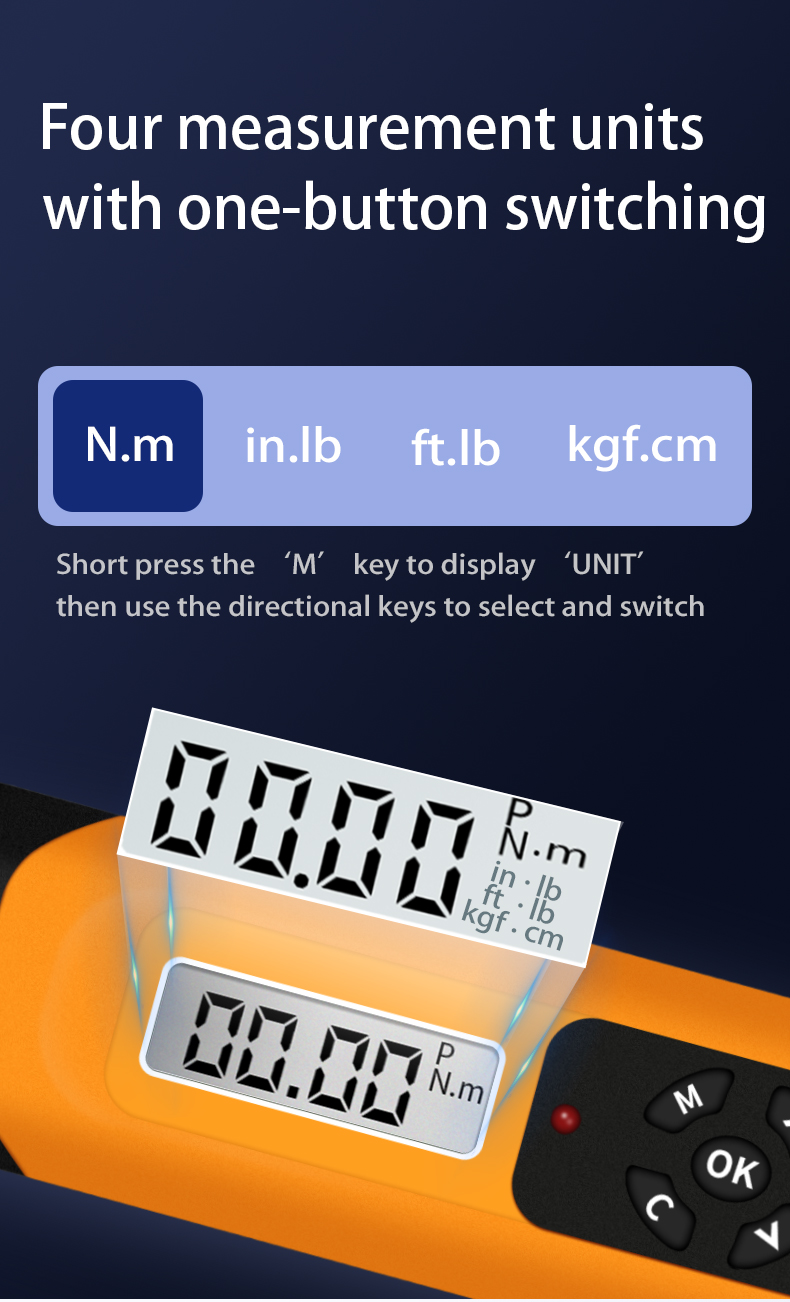

● Four types of engineering units (ft.lb、in.lb、N.m、kgf.cm).

● 99 sets of record data can be saved.

● Automatically switch itself off after 2 minutes.

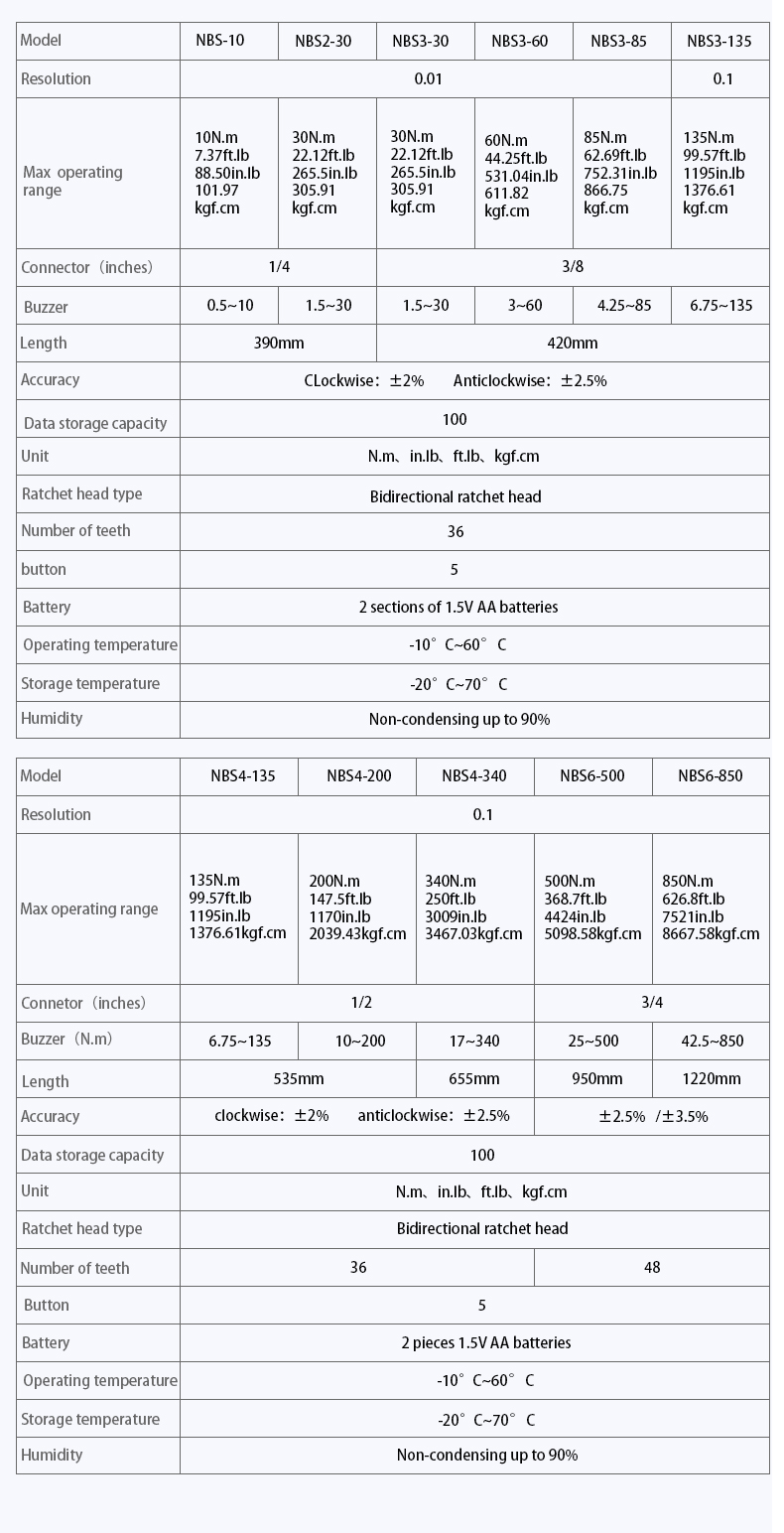

Product specification

Model

NBS2-10

NBS2-30

NBS3-30

NBS3-60

NBS3-85

NBS3-135

NBS4-135

NBS4-200

NBS4-340

NBS6-500

NBS6-850

Minimum value mark

0.01

0.1

Maximum operating range

10N.m

7.37ft.lb

88.50in.lb

101.97kgf.cm

30N.m

22.12ft.lb

265.5in.lb

305.91kgf.cm

30N.m

22.12ft.lb

265.5in.lb

305.91kgf.cm

60N.m

44.25ft.lb

531.04in.lb

611.82kgf.cm

85N.m

62.69ft.lb

752.31in.lb

866.75kgf.cm

135N.m

99.57ft.lb

1195in.lb

1376.61kgf.cm

135N.m

99.57ft.lb

1195in.lb

1376.61kgf.cm

200N.m

147.5ft.lb

1770in.lb

2039.43kgf.cm

340N.m

250ft.lb

3009in.lb

3467.03kgf.cm

500N.m

368.7ft.lb

4424in.lb

5098.58kgf.cm

850N.m

626.8ft.lb

7521in.lb

8667.58kgf.cm

Connector（inches）

1/4

3/8

1/2

3/4

Buzzer range（N.m）

0.6~10

1.8~30

3.6~60

5.1~85

8.1~135

12~200

20.4~340

30~500

5.1~850

Length

390

420

535

655

950

1220

Gross weight(kg)

0.73

0.86

0.87

1.25

1.44

3.72

4.44

Accuracy*1

Clockwise：：±2%

Counterclockwise：±2.5%

Clockwise：±2.5%

Counterclockwise：±3.5%

Mode

Peak Mode（P）/Real-Time Mode（T）

Data storage capacity

Unit

N.m、in.lb、ft.lb、kgf.cm

Battery

2pcs 1.5V 5# Battery

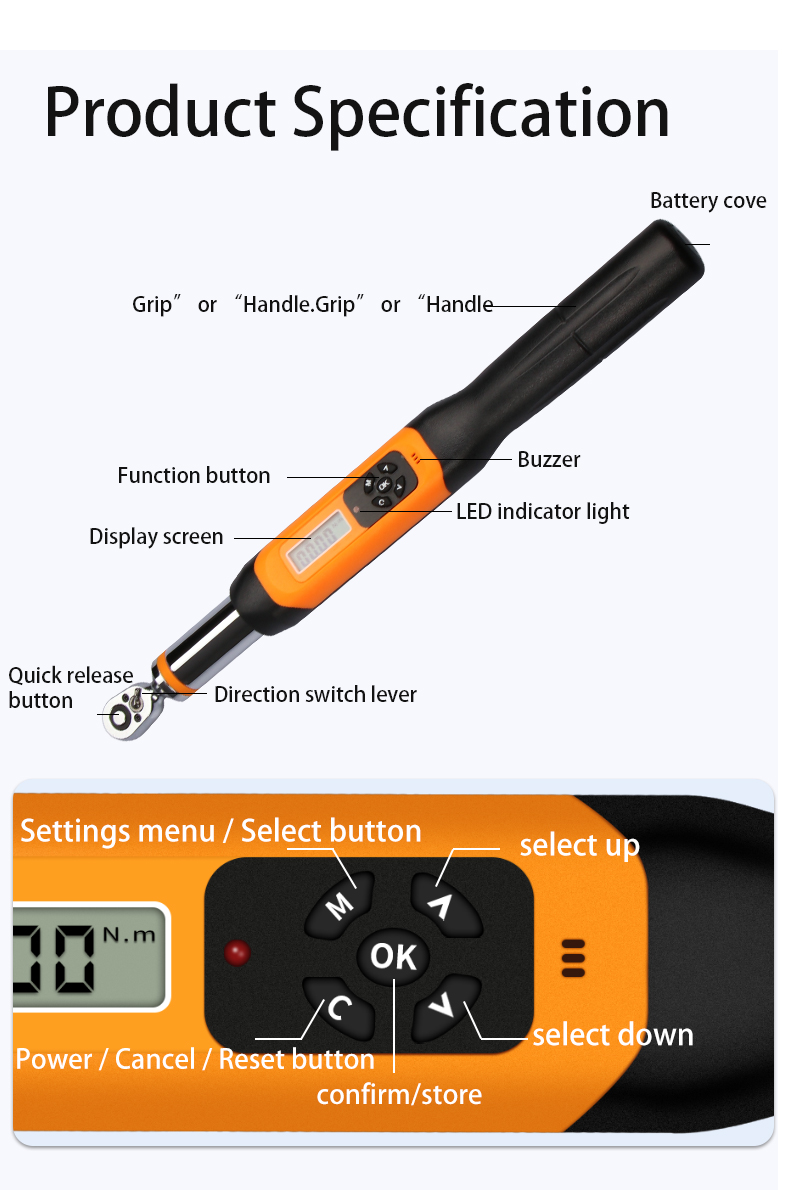

Product Structure

1. Two-way Ratchet Head

2. Direction Paddles

3. Product Main Body

4. LCD Screen

5. Button

6. Buzzer

7. Battery Holder

8. Battery Cover

9. Ratchet Head

10. Grip
11. Torque Values

12. P(Peak Mode)T(Real-Time Mode)

13. Unit(N.m、in.lb、ft.lb、kgf.cm)

14. LED Light

15. Menu Button

16. OK Button

17. Up Button

18. Cancel Button

19. Down Button
