NNBH Torque Wrench Tester Accurate Calibration Tools
Features
● Three optional units: N·m, kgf·cm and lbf·in
- ● Two measurement modes: real-time mode and peak mode can be switched between each other.
- ● Upper and lower limit value settings: The upper and lower limit values can be set, and a buzzer alarm will sound when reached.
- ● Data storage function: 100 pieces of measurement data can be saved.
Product specification
|
Model |
NNBH-20 |
NNBH-50 |
NNBH-100 |
NNBH-200 |
NNBH-500 |
|
Max. (N.m) |
20 |
50 |
100 |
200 |
500 |
|
Min. resolution |
0.001 |
0.01 |
|||
|
Accuracy |
±1%(10%~100% of full scale) |
||||
|
Unit |
N.m、Kgf.cm、Lbf.in |
||||
|
Power |
Input：AC 220v Output：DC 12V |
||||
|
Dimension |
299*299*242 |
772*400*276 |
1142*553*360 |
||
|
Working temperature |
5℃~35℃ |
||||
|
Transport temperature |
-10℃~60℃ |
||||
|
Relative humidity |
15％～80％RH |
||||
|
Working environment |
No seismic source and corrosive media around |
||||
|
Weight（Kg） |
12 |
27 |
43 |
||

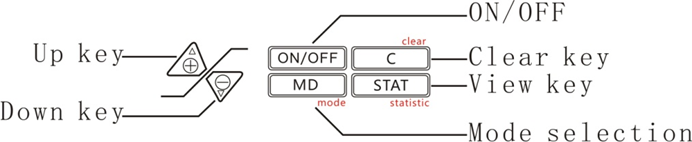

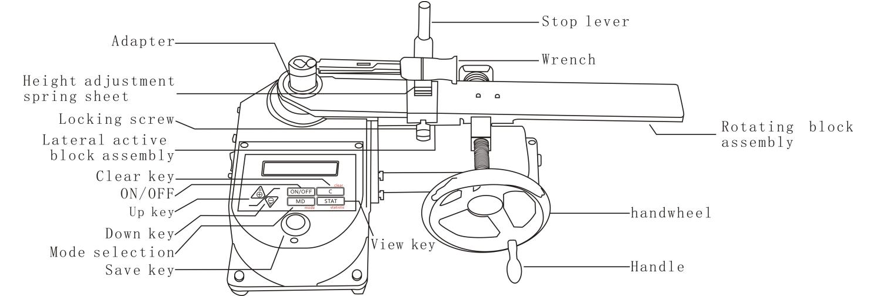

Product structure
