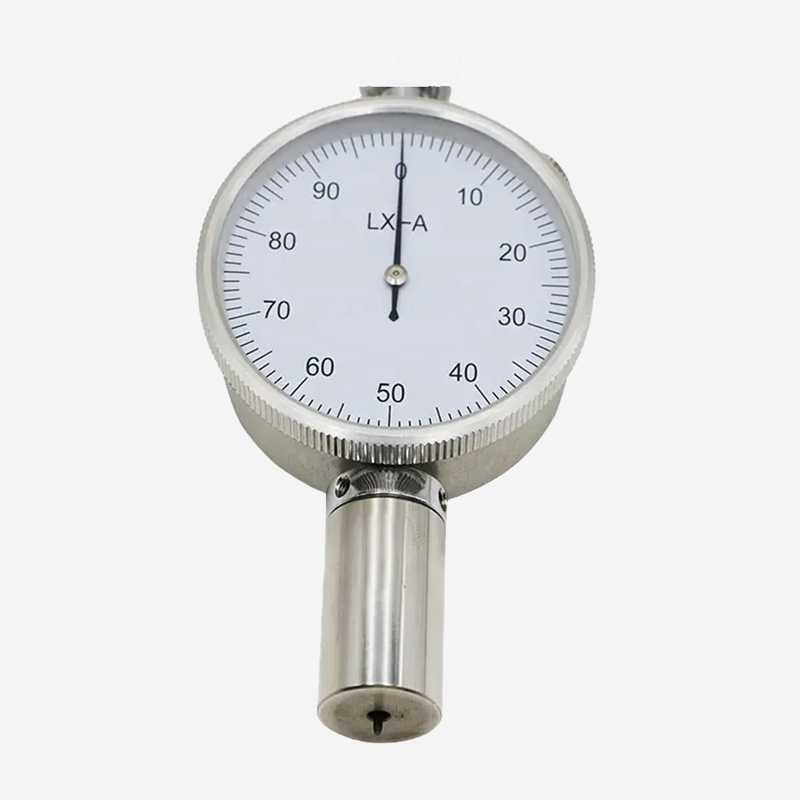

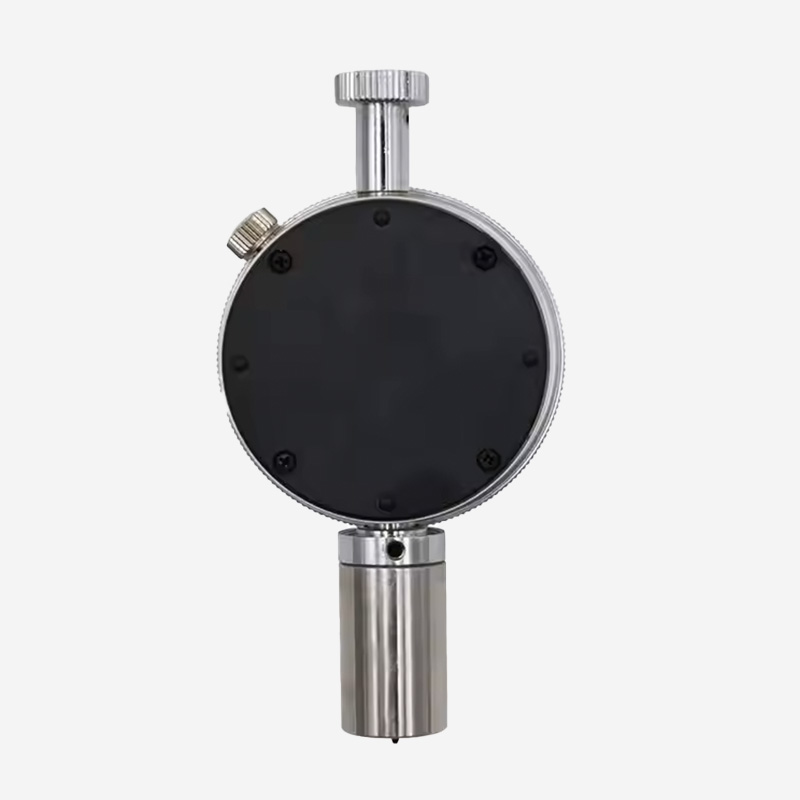

Premium Shore A Durometer for Rubber Hardness Testing – High-Quality Shore Hardness Tester
product detail
Features
● Pointer type indicator, convenient reading and accurate measuring
● Hand-held design, portable and endurable
● Measuring manually, or measuring mounted on related test frame
● Type A suitable for hardness testing of general rubber, synthetic rubber, vulcanized rubber, soft rubber, leather, wax etc
● Type B suitable for hardness testing of rubber microporous material
● Type C suitable for hardness testing of hard rubber, hard resin, acrylic, glass, cushiony plastic cement, printing plates, fiber, etc
● Single pointer and double pointer two types
Product Specification
|
Part No. |
LX-A |
LX-C |
LX-D |
|
Type |
A |
C |
D |
|
Calibration Value |
0-100HA |
0-100HC |
0-100HD |
|
Recommended Measuring Range |
10-90HA |
10-90HC |
20-90HD |
|
Pressure Head Size |
D 0.79 mm |
SR 2.5 mm |
SR 0.1 mm |
|
Pressure Needle Range |
2.5mm |
||
|
Dimension |
115*60*25mm |
||
| Single Needle Standard Model | Dual Needle Scoring Model | |||||
| Probe Type | LX-A | LX-C | LX-D | LX-A | LX-C | LX-D |
| Side Head Diameter | 0.79mm | 2.5mm | 0.1mm | 0.79mm | 2.5mm | 0.1mm |
| Range | 100HA | 100HC | 100HD | 100HA | 100HC | 100HD |
| Probe Stroke | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm | 2.5mm |
| Tolerance | ±2HA | ±2HC | ±2HD | ±1HA | ±1HC | ±1HD |
| Peak Hold | × | × | × | √ | √ | √ |

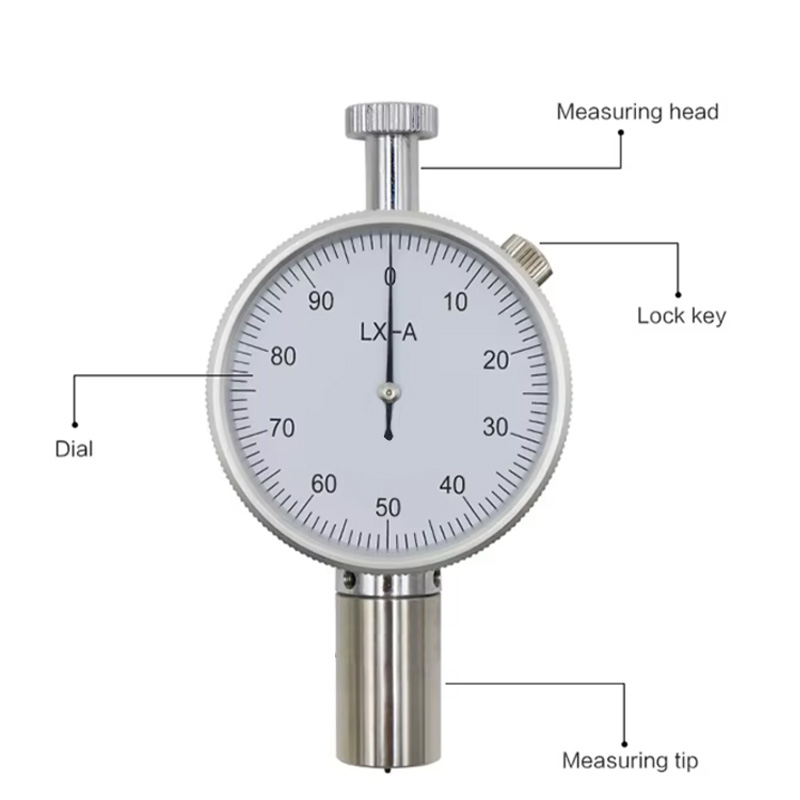

Product Structure
