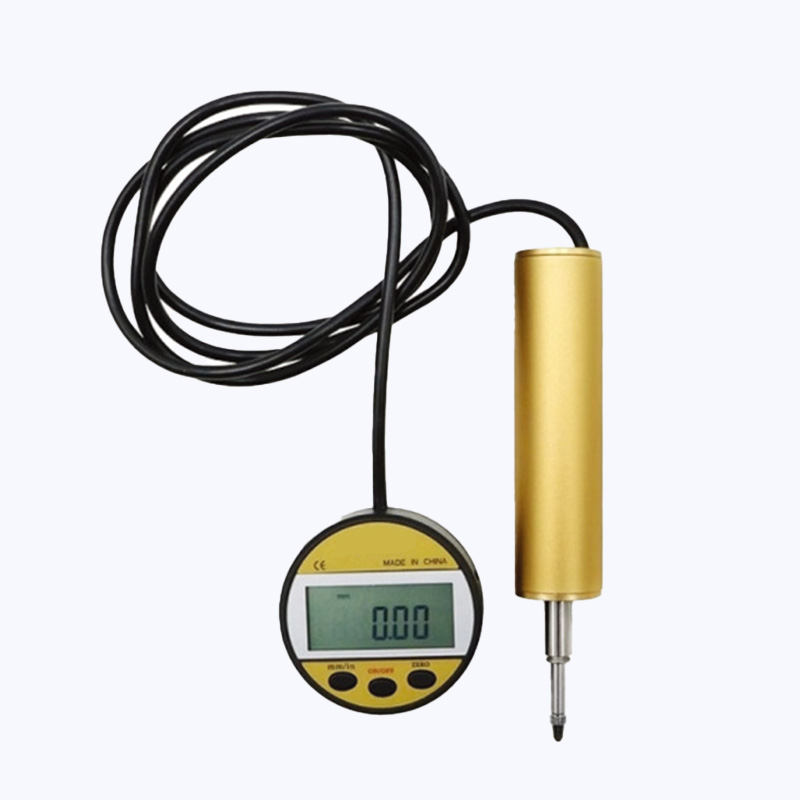

Precision Split Digital Dial Indicator - Accurate Measurements
Features
● Large LCD screen, clear and accurate reading, suitable for the measurement environment where ordinary indicator tables are inconvenient to read
● Measurements with dimensional measurements, geometric tolerance detection, such as runout, flatness, perpendicularity, etc
● The display is separate from the probe; The length of the connecting cable is 1.2 meters for the rear cable outlet and 30 cm for the front cable outlet
● Battery: 3V CR 2032 environmental lithium battery
● When the LCD screen displays small characters "5" and "in", it is an imperial display
● Low voltage alarm function
● The zero key can be cleared at any position within the measurement range
● Buttons: on/off, zero, mm/inch conversion
● Repeat the mm/in key to directly convert the metric to the imperial value
● Ambient temperature: ≤80%
● Operating temperature:0°C ~40°C
● Storage temperature:-10°C~60°C
● Outlet mode: rear outlet or front outlet
● Force value: ≤2.2N
Product Specification
| Model | Measurement range | Division value | Accuracy |
| NFB-10 | 0-10mm | 0.01mm | ±0.03mm |
| NFB-25 | 0-25mm | 0.01mm | ±0.03mm |
Product Structure
