Precision Grating Displacement Sensor for Accurate Measurements
Features
● Operating Temperature: -10~40°C
● Humidity: ≤ 80% RH
● Absolute Measurement (Using Optical Grating Absolute Encoding)
● Waterproof: IP54/IP65 (Optional)
Communication Protocol
● Data Frame Format: RTU Mode
Communication Parameters: Baud Rate 38400
Data Frame: 1 Start Bit, 8 Data Bits, No Parity, 2 Stop Bits
● Displacement Sensor Data
| Master Query Command 0103 00 00 00 02 C40B |
Displacement Sensor Response 0103040100 12 3937 7DH | |||||
| Address Code | 01H | Address Code | 01H | |||
| Function Code | 03H | Function Code | 03H | |||
| Access Register Starting Address |
00H | Data Byte Length | 04H | |||
| Data Word 1 High 8 Bits | 01H | Displacement Sensor Data |
Flag Bit | |||
| 00H | Data Word 1 Low 8 Bits | 00H | ||||
| 00H | Data Word 2 High 8 Bits | 12H | Measurement Data (Hexadecimal) |
|||
| 02H | Data Word 2 Low 8 Bits | 39H | ||||
| CRC (Low 8 Bits) | C4H | CRC (Low 8Bits) | 37H - | |||
| CRC (High 8 Bits) | OBH | CRC (High 8 Bits) | 7DH | |||
| Plug Type | Wiring Type | |||||
| Pin Numbering | Function | Pin Numbering | Function | |||
| 2 | TXD(Data OUT) | Blue | TXD(Data out) | |||
| 3 | RXD(Data IN) | Black | RXD(Data In) | |||
| 4 | 5V(Power Supply) | Yellow | 5V(Battery) | |||
| 5 | GND(Ground) | Red | GND(Grand) | |||

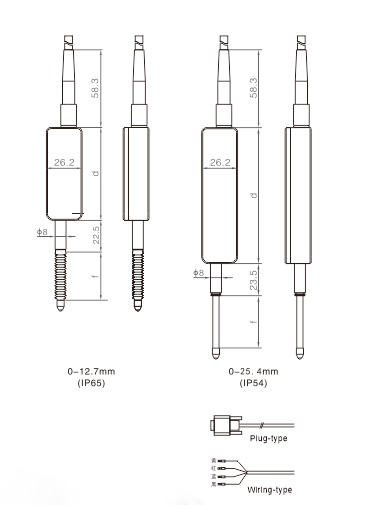

Product Specification
| Model | Range (mm) | Accuracy | Resolution | d (mm) | f (mm) | Waterproof | |
| NGS-5332C | NGS-53320 | 0-12.7 | ≤1Oum | 5um | 68.2 | 36 | IP65 |
| NGS-5302C | NGS-5302J | ±2um | 1um | ||||
| NGS-5312C | NGS-5312J | ≤2um | 0.5μm | ||||
| NGS-5322C | NGS-5322J | ≤1.4μm | 0.2μm | ||||
| NGS-5332C | NGS- 5332J | 0-25.4 | ≤10μm | 5μm | 99.1 | 38 | IP54 |
| NGS-5302C | NGS-5302J | +3μm | 1um | ||||
| NGS-5312C | NGS-5312J | ≤3um | 0.5μm | ||||
| NGS-53220 | NGS-5322J | ≤1.8μm | 0.2μm | ||||
