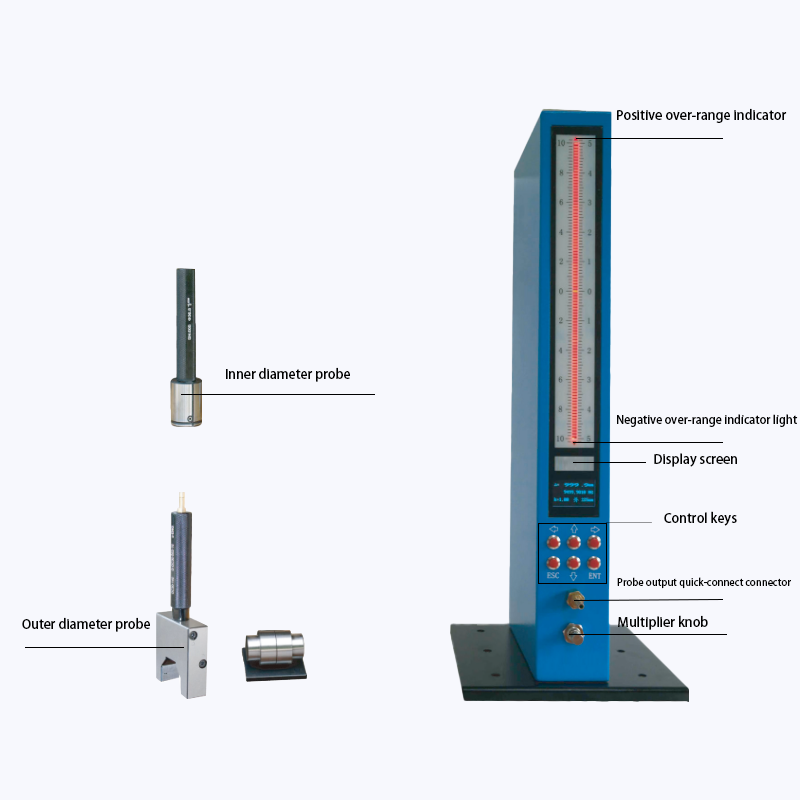

Pneumatic Measuring Instrument-QD-300

The Pneumatic measuring instrument is a high-performance device designed for precision measurement applications, developed specifically to meet the stringent requirements of industry and scientific research. The instrument has extremely high measurement accuracy, with a maximum resolution of 0.1μm, and no preheating is required when it is turned on, and it immediately enters an efficient working state. Whether it is the detection of the concentricity, roundness or other key parameters of the workpiece, the QD-300 series can provide accurate and reliable data support. It also has strong flexibility and can be equipped with any shape nozzle hole gas probe from 0.3mm to 2.0mm to meet the measurement needs of workpieces of different specifications. Its range selection function is flexible and diverse. Users can select ±5μm, ±10μm, ±25μm, ±50μm and other ranges through software to meet a variety of application scenarios. The instrument can also store up to 800 measurement data, which will not be lost when the power is off, and historical data can be queried and traced back at any time.

Product Detail

Features

● High precision and high stability. The highest resolution can reach 0.1um, and there is no need to warm up when the machine is turned on
● The relative and absolute values of the detected dimensions are displayed simultaneously
● Bright LCD screen display. It is visible from all angles and is clear and bright
● The three-color light bar automatically converts the indication
● Chinese menu operation. The display is rich, intuitive and easy to operate
● It can be equipped with any shape of nozzle orifice gas probe from 0.3mm to 2.0mm
● The software can select ± 5μm, ±10μm, ± 25μm, and ± 50μm ranges
● Up to 800 measurement data can be stored, which can be queried without loss in case of power failure
● Ten sets of programs can be set up to measure a variety of specifications
● The magnification adjustment range is large, which can extend the life of the probe by more than 50%
● Input and output: optocoupler isolation IO input and output interface
● It has RS232 or RS485 communication function
● Special functions can be customized, such as peak operation, group selection, data upload, U disk storage, wireless transmission, etc
● It can be customized ± 100μm and ±150μm large-capacity types
● Strong and durable: the instrument has good overall sealing, and is not afraid of oil and moisture
● Inspection data can be automatically saved and sent with a delay in time

Product specification

Model	NQD-300
Indication range (μm)	±5	+10	±25	±50
Digital display resolution (μm)	0.1	0.2	0.5	1.0
Light beam resolution (μm/lamp)	0.1	0.2	0.5	1.0
Total error of indication (μm) ≤	0.2	0.4	1.0	2.0
Repeatability (μm) ≤	0.1	0.2	0.5	1.0
Variability of indication (μm) ≤	0.1	0.2	0.5	1.0
Initial gap (um)	25~60	30~60	40~80	40~80
Dimensions	60mm(width)x498mm(height)X180mm(depth)
Weight	About 2.8公斤
