Torsion spring testing machine
Torsion spring testing machine

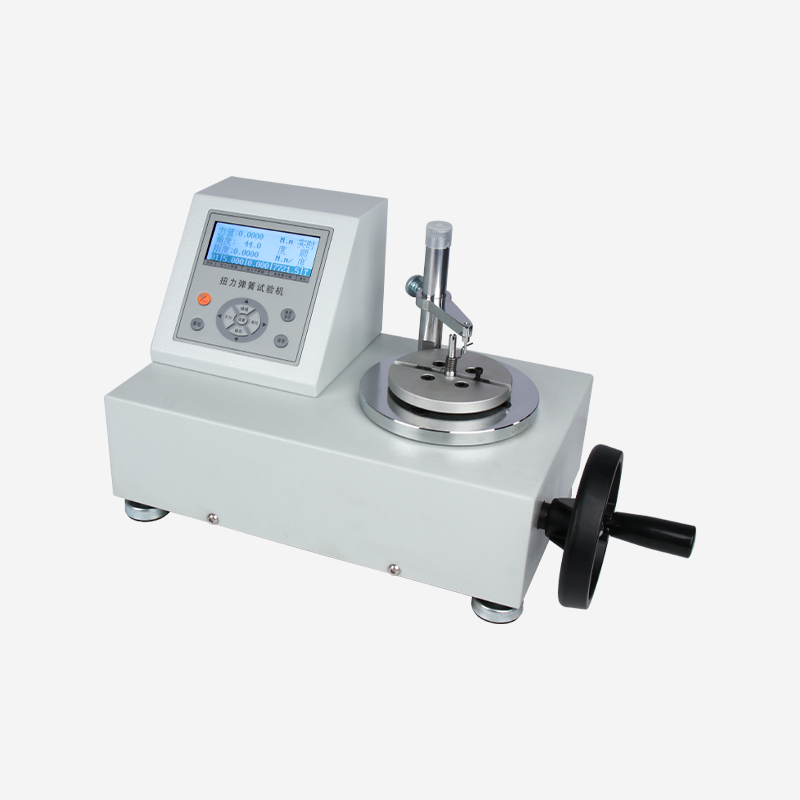

NEWJIELI Digital Torsion Spring Tester

The Series Digital Torsion Spring Tester is an advanced, intelligent multi-functional measuring instrument designed specifically for the testing and inspection of torsion springs. This state-of-the-art device combines user-friendly operation with high precision, making it an essential tool for professionals across various industries. Its lightweight and portable design ensures that you can easily carry it wherever you need, while its comprehensive features cater to a wide range of applications in electric, light industry, machinery manufacturing, and research institutions. Whether you're conducting quality control, product development, or academic research, this tester delivers reliable and accurate results every time.

    Contact us
    product details

    Features

      1. ● High precision, high resolution, quick sampling speed and large screen show.
      2. ● Adopting high precision torque sensor, with torque direction show. High precision revolving encoder, arbitrary angle measurement.
      3. ● Can be installed freely upper and lower limit torque values and maximum, minimum rotation angle value, when beyond the scope of setting value, the words flashing and buzzer alarming.
      4. ● Three kinds of parameters show (Torque value, Rotating angle, Spring stiffness)
      5. ● Three units can be switched (N·m, kgf·cm, Ib·in)
      6. ● Realtime, peak, automatic peak three types can be switched.
      7. ● Using the USB interface and PC communications, synchronous test function can be connect to computer test. Computer synchronous displayed test torque and angle torque, time angle and time graph as well as detailed record of measurement parameters in the testing. It can save, print, doing all sorts of analysis.
      8. ● Peak holding,remove automatically function, remove free time setting.
      9. ● Large storage, can save 99 groups test data.
      10. ● Without operation automatic shutdown function, time can be set free.

      Product specifications

      Model NNH-0.5 NNH-1 NNH-2 NNH-3 NNH-5 NNH-10 NNH-20
      Brand NEWJIELI
      Max torque mN.m 500 1000m 2000 3000 5000 10000 20000
      N.m 0.5 1 2 3 5 10 20
      Measurement range mN.m 5-500 10-1000 20-2000 30-3000 50-5000 100-10000 200-20000
      N.m 0.005-0.5 0.01-1 0.02-2 0.03-3 0.05-5 0.1-10 0.2-20
      Angle resolution 0.1°
      Torque dish diameter 100mm
      The tested spring height <80mm
      Torsional horn maxtinum read values 9999.9°

      Product structure

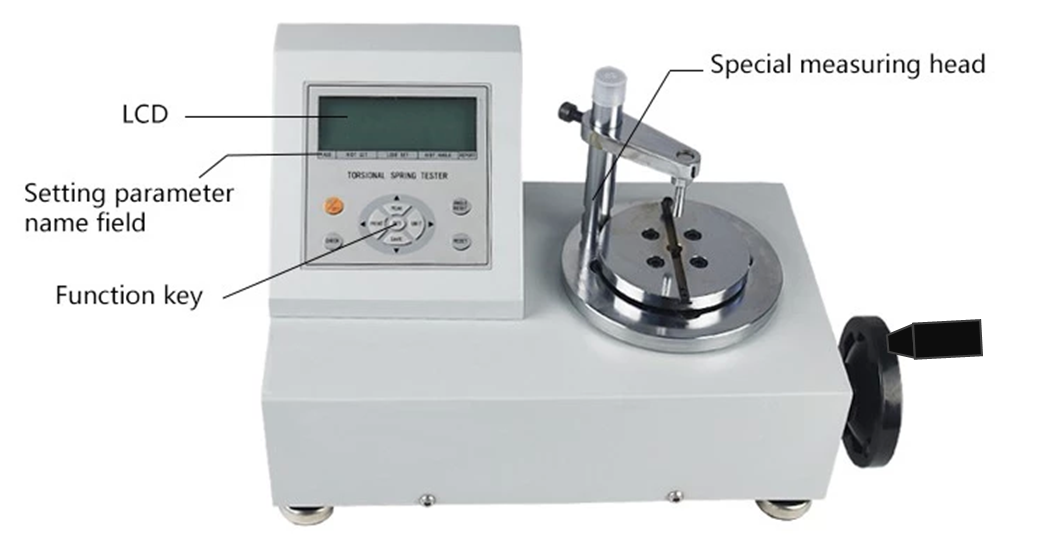

      digital-torsion-spring-tester1

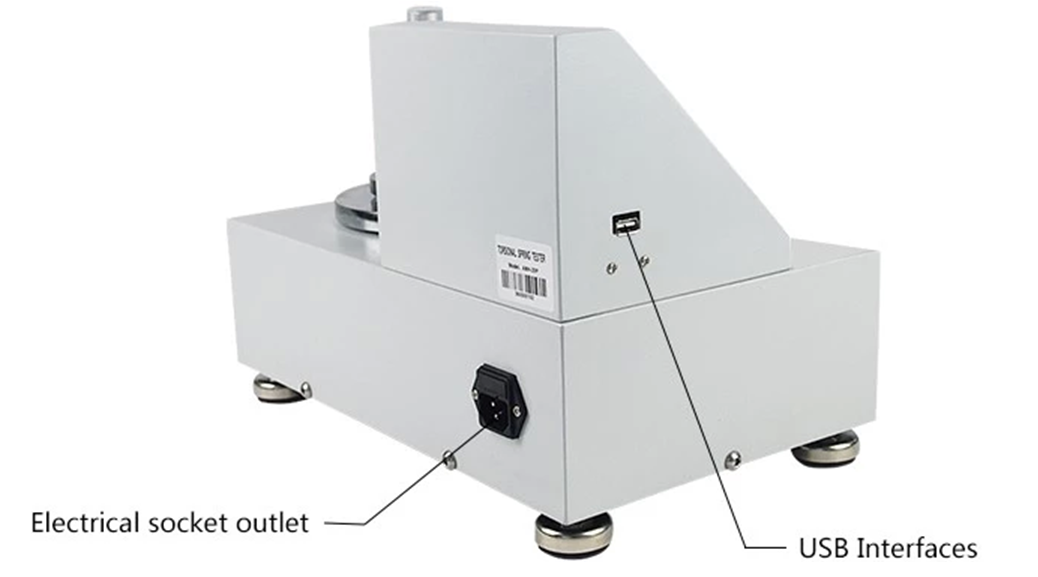

      digital-torsion-spring-tester2
