NEWJIELI Touch Torque Wrench Calibrator – High Quality
Features
-
- ● High precision, high resolution, quick sampling speed, full-screen display.
- ● Meter display, curve display, curve zoom function and full touch screen display.
- ● Adopting high precision torque sensor, with torque direction display.
- ● Upper and lower limit value setting, red indicating lights and buzzer audible and visual alarm.
- ● Three units can be switched each other (N·m、kgf·cm、Lbf·in).
- ● Real-time, peak, automatic peak three models of optional switch.
- ● System time for setting.
- ● Can large storage by USB flash disk.
-
Product specifications
|
Model
Index |
NBJ-M100 |
NBJ-M200 |
NBJ-M300 |
NBJ-M500 |
NBJ-M1000 |
NBJ-M2000 |
NBJ-M3000 |
|
|
Measuring range/Division value |
N·m |
100.0/0.01 |
200.00/0.01 |
300.00/0.01 |
500.00/0.01 |
1000.0/0.1 |
2000/0.1 |
3000/0.1 |
|
Kgf·cm |
1021.0/0.1 |
2042.0/0.1 |
3063.1/0.1 |
5105.2/0.1 |
10210/1 |
20420/1 |
30631/1 |
|
|
Ibf·in |
886.2/0.1 |
1772.4/0.1 |
2658.6/0.1 |
4431.1/0.1 |
8862/1 |
17724/1 |
26586/1 |
|
|
Dimension |
880mm×350mm×550mm |
1250mm×500mm×800mm |
||||||
|
length range |
130mm～750mm |
250mm～980mm |
250mm～1800mm |
|||||
|
Angle of rotation |
0～60° |
0～360° |
||||||
|
Height stroke |
130mm |
150mm |
||||||
|
Accuracy |
±1%(10%~100% of full scale) |
|||||||
|
Peak sampling frequency |
2000HZ |
|||||||
|
Power |
AC110-220V/50Hz-60Hz |
|||||||
|
Net weight |
65Kg |
335kg |
||||||

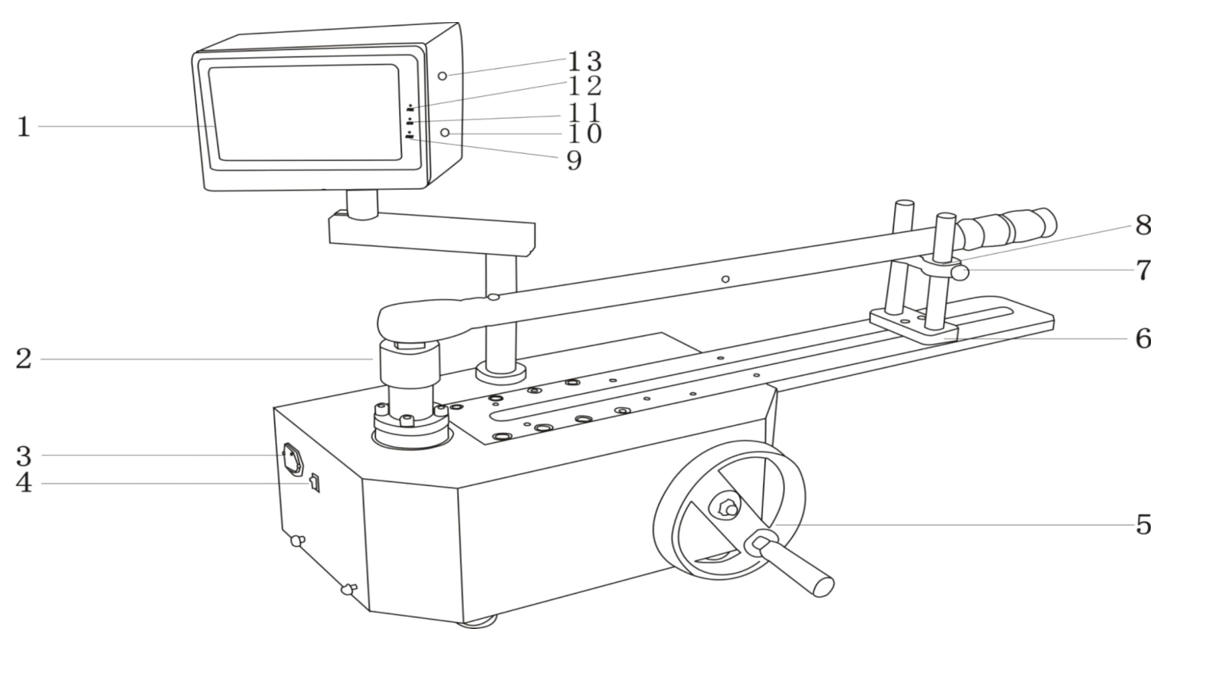

Product Structure
-
1. LCD touch screen 8. Height adjusting block
2. Mortise 9. Window indicator
3. Power interface 10. Zero key
4. Hard switch 11. CPU indicator
5. Hand wheel 12. Power light
6. The length of adjusting block 13. LCD screen switch
7. Height adjusting nut
