One Tool, All Answers: Your Home Multimeter Guide

Stop Letting Your Tools Collect Dust! A Hands-On Guide to Mastering Your Home Multimeter

There was a time when the multimeter was a professional tool exclusive to electricians. Today, with the widespread adoption of Digital Multimeters—known for their intuitive operation, durability, and affordability—they have gradually become a new standard item in household toolkits, joining the ranks of screwdrivers and pliers. Yet, many people, after bringing one home, find themselves puzzled by the numerous symbols on the dial: how exactly do you use this thing?

Don't worry. Today, we'll explain it in the simplest terms possible.

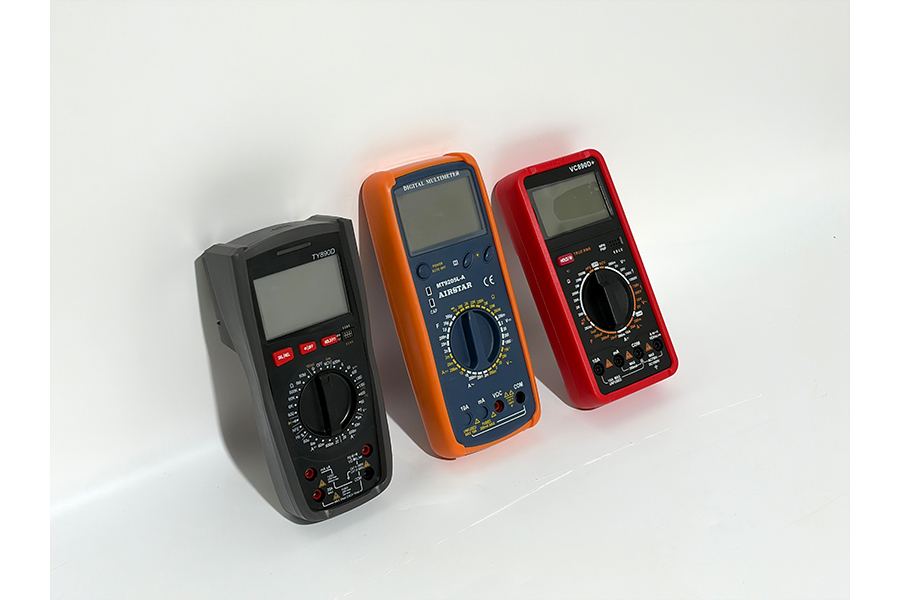

1.First Impressions: The Three Key Components of a Multimeter

A typical digital multimeter consists of three main parts:

1.  Display Screen: The window for directly reading measurement results.
2.  Selector Dial: The core component for choosing the measurement type and range.
3.  Test Leads (Probes): The probes that connect the multimeter to the object being tested, usually one red and one black.

The workflow can be summarized as: Select Function/Range → Connect Probes → Take Measurement → Read Value. Let's break down each step.

 1.Step One: Plug the Probes into the Correct Jacks

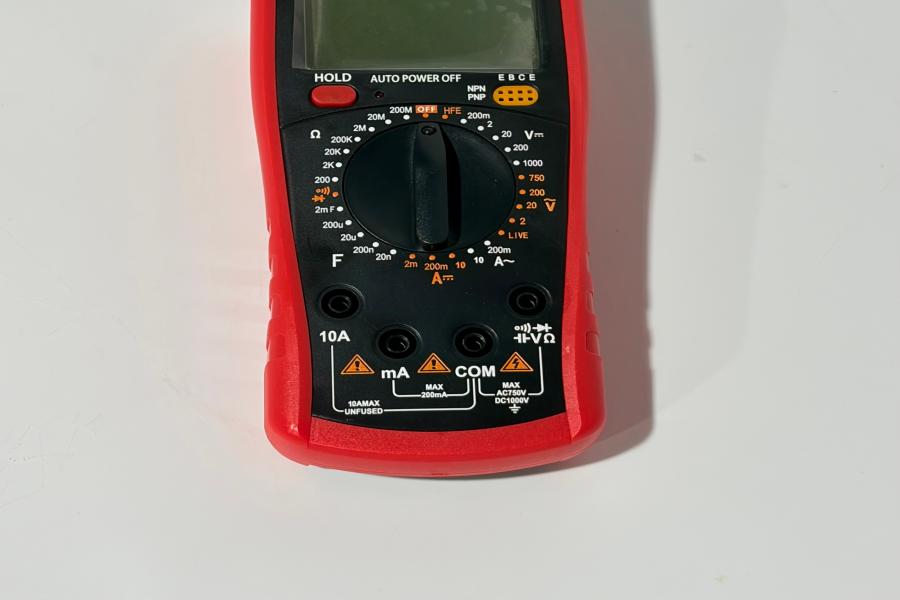

   The bottom of the multimeter usually has 4 jacks. Our two probes need to be inserted into two of them.

   Black Probe: Always insert into the jack marked "COM" (Common). This is its "home."

   Red Probe: Which jack it goes into depends on what you want to measure:

   Measuring Voltage, Resistance, Continuity (Buzzer): Insert into the jack marked "VΩ" or a similar symbol.

   Measuring Current: Here you need to be careful. There are usually two separate jacks: "A" (for high current, e.g., 10A) and "mA/μA" (for low current). Safety Tip: If you're unsure of the current size, start by using the "A" jack. If the reading is very small (e.g., less than 1A), you can switch to the "mA" jack for a more precise value.

Pro Tip: While swapping the red and black probes usually doesn't affect results when measuring voltage/resistance, following the industry standard of "red for positive, black for negative" is a good habit. It especially helps avoid confusion about polarity when measuring DC.

 2.Step Two: Set the Dial to the Correct Function and Range

This is the most crucial step. The dial is surrounded by a scale typically divided into an outer ring of "functions" and an inner ring of "ranges."

First, choose the FUNCTION:

Common function symbols include:

   V~ or ACV: Alternating Current Voltage (household outlets use AC).

   V- or DCV: Direct Current Voltage (batteries, phone charger outputs, etc.).

   A~ or ACA: Alternating Current.

   A- or DCA: Direct Current.

   Ω: Resistance.

   )))) or Buzzer Symbol: Continuity Test / Diode Test.

Then, choose the RANGE:

After selecting the function, you must also choose a specific range. The principle is "start high and work down for precision."

   Example: Measuring a household outlet voltage (~220V): You should select the AC Voltage (V~) function, then look at its ranges. If there are 200V and 750V options, you must choose 750V (because 220V is less than 750V but greater than 200V). If you first choose the 200V range to measure 220V, you might overload the meter, preventing a reading or even damaging the device.

   If you're unsure of the value: Always start with the highest range available for that function. Then, based on the initial reading, gradually switch to a smaller, more appropriate range closer to the reading to get the most accurate result.

3.Step Three: Use the Correct Measurement Technique

With everything set, you're ready to measure:

   Basic Stance: It's recommended to hold both probes by their insulated sections in one hand, like holding chopsticks, and touch the metal tips to the measurement points. Your other hand can steady the multimeter.

   Important Principles:

       Measuring Voltage: The multimeter must be connected in parallel with the circuit being tested.

       Measuring Current: The multimeter must be connected in series within the circuit being tested (this requires breaking the circuit to insert the probes). Crucial Warning: Never use the current setting to directly measure a voltage source! This will instantly blow the fuse or even destroy the multimeter.

       Measuring Resistance or Continuity: You must ensure the circuit being tested is completely powered off and that no other parallel paths are affecting the measurement.

1. Handy Mnemonic Tips

 Remember these tips for safer and more confident use:

1.  Check the dial before you measure, never measure in doubt. (Double-check the function/range before proceeding.)
2.  Choose a range that fits, mid-scale reading is best. (For optimal accuracy, select a range where the reading falls between 1/2 and 2/3 of the full scale.)
3.  For voltage, connect in parallel; for current, go in line. (Voltage = parallel, Current = series)
4.  Test resistance only with power off; change range, zero you must find. (No power for resistance tests; analog meters require zeroing when changing resistance ranges.)
5.  Know your probe polarity: black is negative, red is positive. (Pay attention to +/- for DC measurements.)
6.  When you're done, turn it off, and put the probes away right. (After use, turn the dial to "OFF" or the highest AC voltage range, and unplug the probes.)

Conclusion

By following these three steps and tips, you've now mastered the basics of operating a digital multimeter. Starting today, you can try using it to:

   Check if a battery has charge (DC Voltage function).

   Determine if a wire is broken internally (Continuity/Buzzer function).

   Take approximate resistance measurements.

The multimeter is a key to exploring the world of electricity. We hope this guide helps you unlock that door, allowing you to safely and confidently solve common electrical puzzles around your home. Remember, safety always comes first. When dealing with complex mains wiring, if you're unsure, please always consult a professional electrician.
