The Complete Guide to Precision Laser Thermometry

In daily life, whether for industrial maintenance, electrical inspection, or DIY projects, quickly and accurately measuring surface temperature is crucial. Today, let's explore a powerful, user-friendly laser Infrared Thermometer and see how it can become your reliable assistant in both work and daily life.

 📱 Key Features & Specifications at a Glance

This thermometer combines precision, intelligence, and convenience into one compact tool:

   📏 Wide Measurement Range: Measures temperatures from -58°F to 1022°F (-50°C to 550°C), suitable for various scenarios from home cooking to industrial maintenance.

   🎯 High Accuracy: Accuracy is ±1.5°C from 14°F to 302°F (-10°C to 150°C), and ±1.5% for other ranges within the spectrum.

   ⚡ Ultra-Fast Response: Captures temperature readings in just 500 milliseconds.

   🔋 Smart Power Saving: Powered by two AAA batteries. Features auto-shutoff after 30 seconds of inactivity and a low battery indicator.

   💡 Dual Display & Backlight: The upper display shows the real-time temperature. The lower display toggles between MAX, MIN, and AVG values. The backlight auto-off after 15 seconds aids reading in low light.

   🎯 Precision Laser Targeting: A built-in laser pointer helps accurately aim at the target (Important: Never point the laser beam at eyes or stare directly into the beam).

   🔄 Adjustable Emissivity: Emissivity can be adjusted from 0.10 to 1.00 (default 0.95) to accommodate different surface materials, ensuring measurement accuracy.

 🚀 Highlights & User Guide

1. Smart & Intuitive Operation

   One-Button Toggles: Press the laser button briefly to turn the laser pointer on/off. Press and hold for 3 seconds to switch between Celsius (℃) and Fahrenheit (℉).

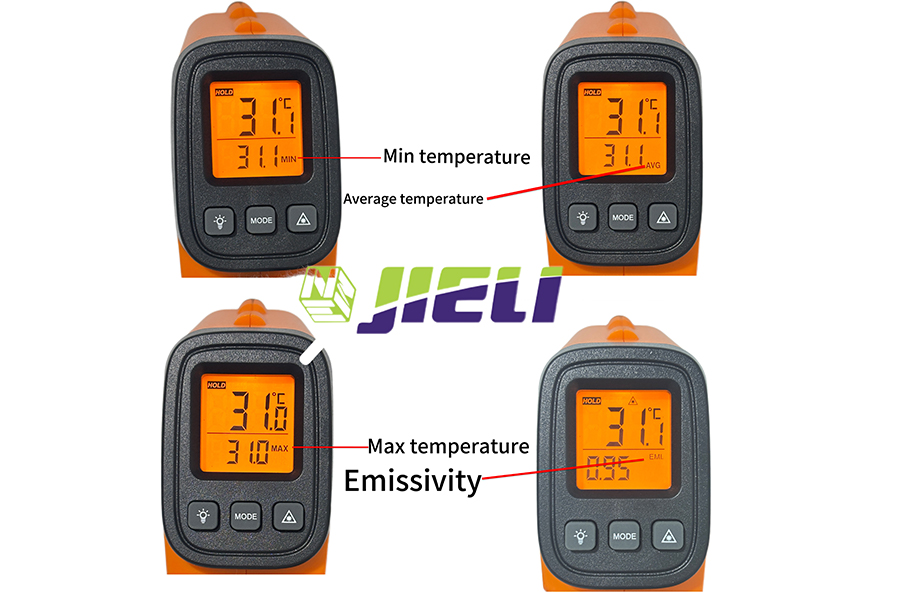

   Data Analysis: Press the "MODE" button to cycle through and display the Maximum (MAX), Minimum (MIN), and Average (AVG) temperatures of your latest measurement cycle.

   Emissivity Adjustment: Press and hold the "MODE" button for 3 seconds to enter the emissivity adjustment mode. Use the "▲" and "▼" buttons to fine-tune the value for different materials.

2. The Science of Accuracy: Distance to Spot Ratio (12:1)

This is the key to precise measurement. A Distance to Spot Ratio of 12:1 means that at a distance of 12 cm from the target, the measurement spot diameter is about 1 cm.

   Best Practice: For optimal results, maintain a distance of approximately 12 cm and ensure the target area is at least twice the size of the spot diameter.

   Visual Guide: When measuring an object 24 cm away, the spot diameter is ~2 cm. At 36 cm, the spot diameter is ~3 cm.

3. Understanding Emissivity: The Core of Reliable Readings

Emissivity is a material's ability to emit infrared energy. Dark, matte surfaces have high emissivity (close to 1.0), allowing for accurate readings. Shiny, reflective surfaces (like glass, polished metal) have low emissivity (close to 0), which can reflect ambient heat and cause inaccurate readings.

 Pro Tip: When measuring reflective surfaces, apply a piece of non-reflective tape. Wait about 30 minutes for it to adopt the surface temperature, then measure the tape area for significantly improved accuracy.

 ⚠️ Important Notes & Usage Tips

1.  Safety First: Never point the laser at eyes or stare directly into the beam. The laser is for targeting purposes only.
2.  Measurement Target: This device measures surface temperature, not internal temperature. It cannot measure temperature through glass, steam, or dust.
3.  Battery Replacement: Replace the two AAA batteries promptly when the low battery icon appears. Ensure correct polarity.
4.  Operating Environment: Avoid using in environments with heavy steam, dust, or smoke, as these can interfere with readings.

 🛠️ Versatile Application Scenarios

   Home & Automotive: Checking electrical appliance heat dissipation, car engine/brake disc temperature, HVAC systems, cooking oil temperature, etc.

   Industrial & Electrical: Monitoring machinery temperature, identifying electrical circuit hot spots, preventive maintenance.

   Research & Education: Conducting science experiments to visually understand heat transfer and temperature differences.

 💎 Conclusion

With its fast response, high accuracy, intelligent operation, and broad application range, this laser infrared thermometer is a highly cost-effective professional tool. It empowers both professionals and DIY enthusiasts to obtain accurate temperature data easily and safely, making temperature measurement simple and efficient.

(Reminder: Always follow product safety guidelines, especially regarding laser safety, and store the device properly.)
