Introduction: Why is Tension Meter Selection So Important?

In modern industrial production and scientific research, accuratetension measurement​ is a key link in ensuring product quality, safety, and stability. Statistics show that over 30% of industrial equipment failures are directly related to improper tension control. Whether it's the regular inspection of elevator wire ropes or quality control during textile fiber production, choosing the right tension meter​ is crucial.

Faced with a wide variety of tension meter products on the market, engineers and purchasers often face the following困惑:

• How to choose a tension meter with different ranges?
• How much does the accuracy index affect practical applications?
• What are the dedicated solutions for specific industries?

This article will provide you with a comprehensive tension meter selection guide. Based on a detailed parameter comparison of our seven mainstream tension meters, it will help you make the wisest decision.

What is a Tension Meter? Detailed Explanation of Core Application Fields

A tension meter​ is a precision instrument used to measure the tension of linear materials such as wires, ropes, and belts. Depending on the measurement principle and application scenario, tension meters can be divided into two main categories: contact​ and non-contact.

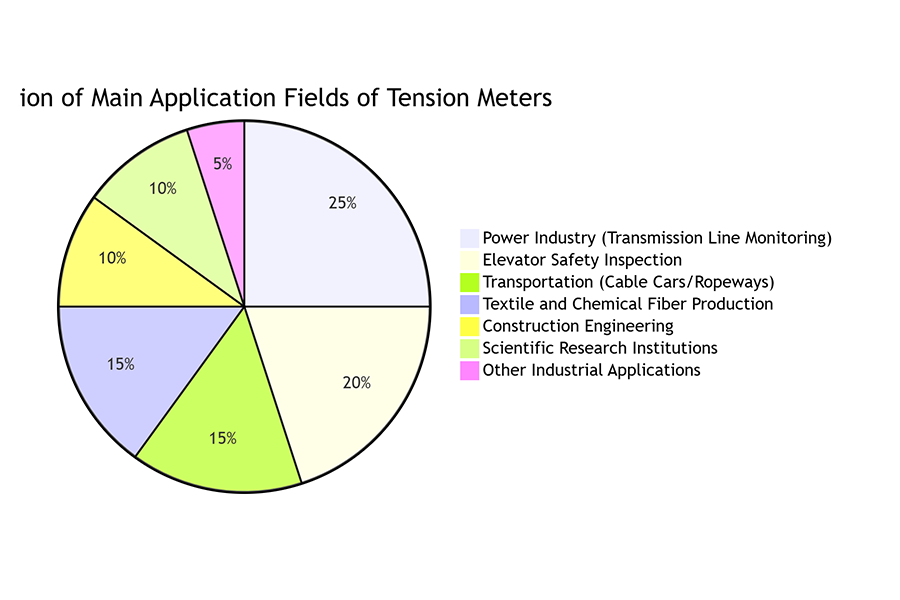

Pie Chart of Main Application Fields

Specific Application Scenarios by Industry:

• Power Industry: High-voltage transmission line tension monitoring, distribution line tightness detection.
• Elevator Industry: Elevator wire rope installation debugging, regular safety inspection, balance adjustment.
• Telecommunications Industry: Optical cable, cable laying tension control to prevent over-stretching.
• Transportation: Cable car, ropeway rope tension measurement to ensure safe operation.
• Textiles and Chemical Fibers: Tension control during spinning and weaving to ensure product quality.
• Construction Engineering: Prestressed steel strand tension detection, steel structure cable force measurement.
• Scientific Research Institutions: Material mechanical performance testing, new product development verification.

Detailed Comparison of Seven Tension Meters (With Charts)

1. NSZ Series Rope Tension Tester: High-Capacity Industrial Solution

Quick Overview of Core Parameters:

• Range: 20KN-200KN (approx. 2 tons - 20 tons)
• Accuracy Grade: 3%-6% (depending on rope type)
• Suitable Rope Diameter: Φ6mm-Φ40mm
• Measurement Method: Non-intrusive online measurement

Application Scenarios: Power tower cables, large bridge cables, large machinery equipment rope tension detection.

Outstanding Advantages:

• ✅ Direct Online Measurement: No need to disassemble the rope, does not affect equipment operation.
• ✅ Automatic System Compensation: Built-in temperature and environmental compensation ensures accuracy.
• ✅ Wide Range Compatibility: 19 rope diameter measurement functions, extremely wide application range.
• ✅ Industrial Grade Durability: Protection rating IP54, suitable for harsh industrial environments.

Limitations:

• ❌ Relatively large size, not suitable for confined spaces.
• ❌ Higher price, suitable for industrial users with sufficient budget.

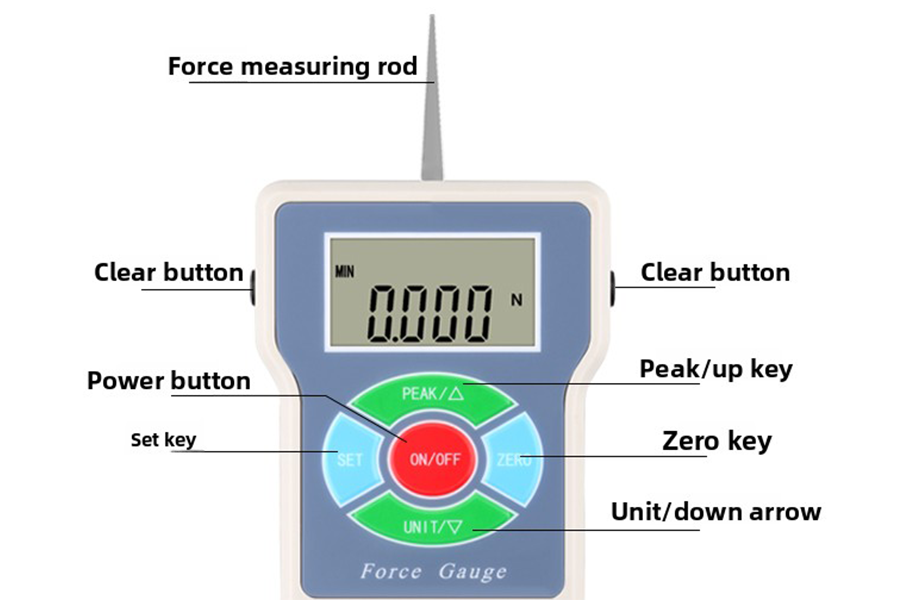

2. Digital Tension Meter (ATL Series): High-Precision Micro Measurement Expert

Quick Overview of Core Parameters:

• Range: 1N-20N (Models ATL-1 to ATL-20)
• Accuracy: ±0.5% (industry-leading level)
• Unit Support: Switch between five units: N, Kg, Lb, Oz, g.
• Battery Life: ≥100 hours of continuous use.

Application Scenarios: Relay contact pressure, electronic switches, micro-devices, armature pressure, and other small force value measurements.

Outstanding Advantages:

• ✅ Extremely Portable: Weighs only 145g, can be used with one hand.
• ✅ High Precision: ±0.5% accuracy meets laboratory-level requirements.
• ✅ Smart Power Saving: Auto power-off function maximizes battery life.
• ✅ Long Lifespan: Can be used continuously over 100,000 times, highly reliable.

Selection Advice: Suitable for R&D and precision manufacturing where high accuracy and small force values are required.

Table: Detailed Model Parameter Comparison for ATL Series

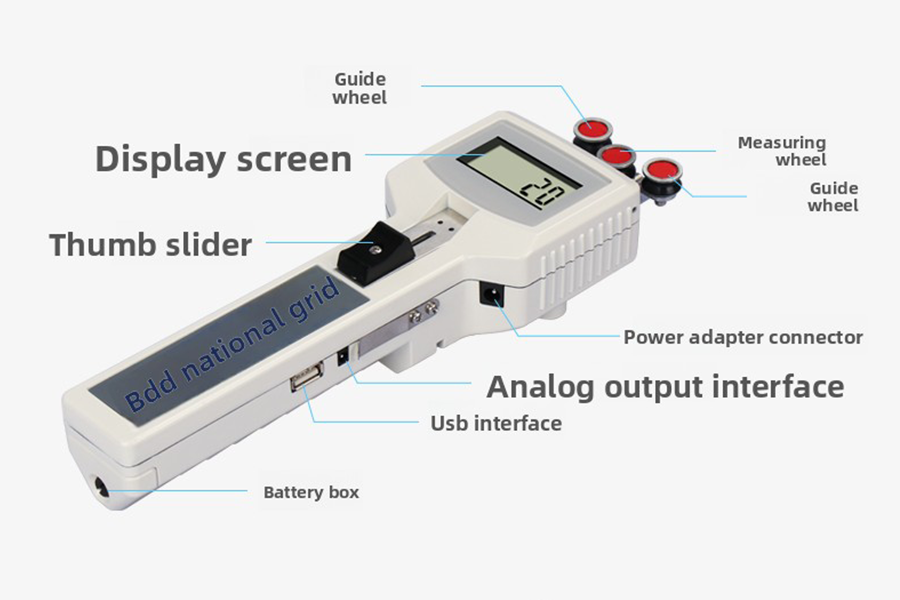

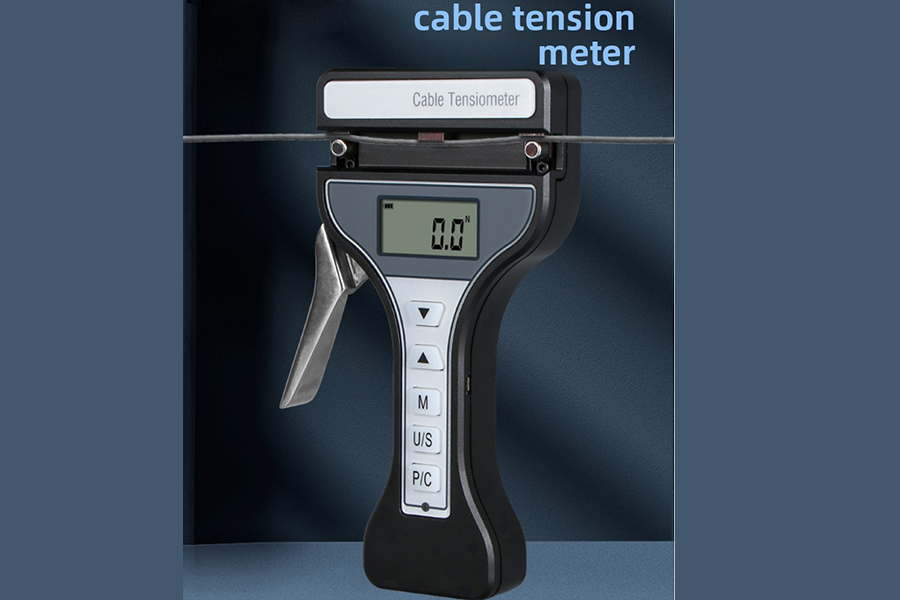

3. Handheld Wire Rope Tensiometer: Balanced Performance and Portability

Quick Overview of Core Parameters:

• Range Options: Three models: 500N, 1500N, 2500N.
• Cable Compatibility: Specifications from 1/8(3.5mm) to 1/4(6mm).
• Operating Modes: Switch between Real-time and Peak modes.
• Unit System: Switch between four units: OZ, Kgf, N, lbf.

Application Scenarios: Wire rope tension detection in power, communications, cable car transport, construction.

Core Advantages:

• ✅ Portable Design: Weighs only 930g, balances performance and portability.
• ✅ Smart Storage: Can store settings for five different wire diameters, easy field switching.
• ✅ Clear Display: LCD digital display, readable in strong light.
• ✅ Cost-Effective: Moderate price, comprehensive functions.

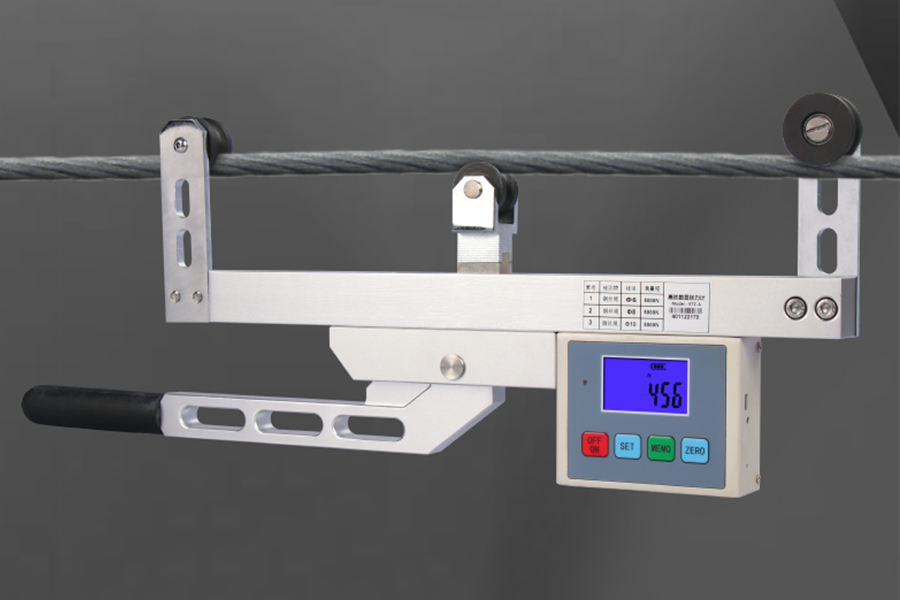

4. NZG Series Rope Tension Meter: Dedicated Solution for Copper Strands

Quick Overview of Core Parameters:

• Dedicated Design: Optimized for copper strand measurement (Three models: A/B/C).
• Data Storage: Can store 383 sets of measurement data.
• Measurement Efficiency: Complete one measurement within 30 seconds.
• Unit Support: Switch between three units: N, Kgf, Lbf.

Application Scenarios: High-speed rail industry contact wires, power industry copper strands, telecommunications industry copper cable tension measurement.

Outstanding Features:

• ✅ Dedicated Calibration: Specially calibrated for copper strand material characteristics, more accurate measurement.
• ✅ Efficient Operation: One person can complete all measurement operations.
• ✅ Data Export: Supports computer data export for subsequent analysis.
• ✅ Online Measurement: No need to dismantle lines, direct online measurement.

5. NZSH Handheld Digital Tensiometer: Expert in Filamentous Material Measurement

Quick Overview of Core Parameters:

• Range: 200cN-100N (Seven models available).
• Material Compatibility: Can measure tension of 10 different materials.
• Operating Modes: Real-time, Hold, and Peak modes.
• Communication Interface: USB communication function, data can be exported.

Application Scenarios: Wire and cable, textile and chemical fibers, metal wires, carbon fiber, and other industries.

Technical Highlights:

• ✅ Thickness Compensation: Automatically compensates for the effect of material diameter on measurement.
• ✅ Multi-Material Support: Supports measurement of various materials through professional calibration.
• ✅ Data Management: Can store 41 sets of data, facilitating quality tracking.
• ✅ Professional Design: Optimized for tension measurement of filamentous linear materials.

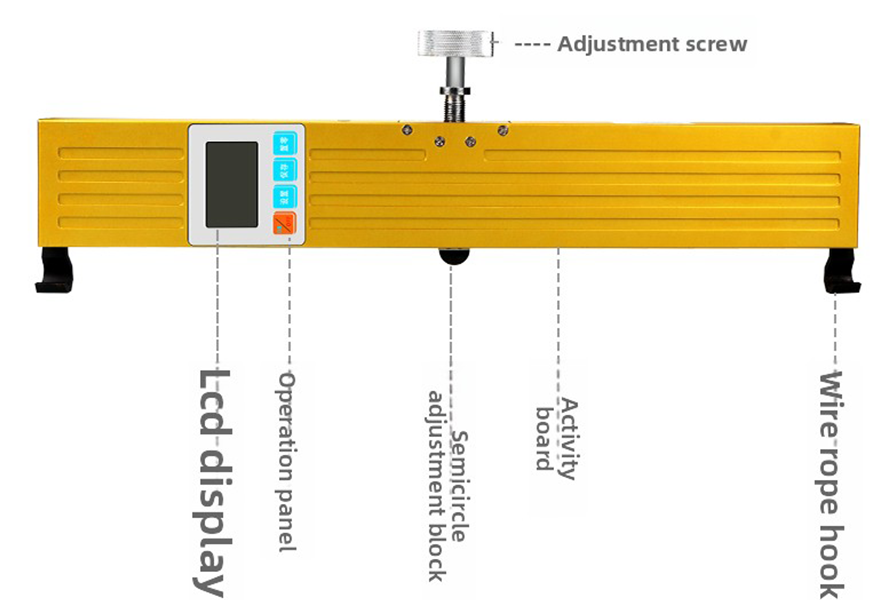

6. NDZ  Elevator Rope Tension Meter: Specialized Equipment for Elevator Safety

Quick Overview of Core Parameters:

• Range Options: Two models: 3000N and 5000N.
• Dedicated Design: Designed specifically for elevator wire ropes.
• Preset Parameters: Six common elevator wire rope diameter presets.
• Data Storage: Can store 383 sets of inspection data.

Application Scenarios: Elevator wire rope installation debugging, acceptance inspection, annual inspection.

Safety Features:

• ✅ Dedicated Calibration: Specifically optimized for elevator wire ropes.
• ✅ Regulatory Compliance: Meets elevator safety inspection code requirements.
• ✅ Standardized Operation: Built-in standard inspection process.
• ✅ Data Traceability: Complete record of each inspection data.

Table: Comprehensive Comparison of Seven Tension Meters

In-depth Analysis of Six Key Factors in Tension Meter Selection

Factor 1: Measurement Range (Capacity) – The Primary Factor in Selection

Selection Principle: Based on the maximum tension value of the object to be measured, choose a tension meter with a slightly larger range. It is generally recommended that the working tension be within 10%-90%​ of the range.

Clarifying Range Selection Misconceptions:

• Misconception 1: The larger the range, the better.
  • Fact: An excessively large range reduces measurement accuracy and resolution.
• Misconception 2: Just covering the maximum tension is sufficient.
  • Fact: An appropriate margin is needed to prevent damage to the sensor from impact loads.

Specific Range Recommendations:

• Small Force Values​ (<20N): NTL Series
• Medium Force Values​ (20N-5000N): Handheld Wire Rope Tensiometer, NZSH Series
• Large Force Values​ (5KN-200KN): NSZ Series, NGZ Series, NDZ Series

Factor 2: Measurement Accuracy Requirements – Varies Greatly by Scenario

Higher accuracy is not always better; it needs to match the application scenario:

Accuracy Grade vs. Applicable Scenarios Table

Factor 3: Characteristics of the Object to be Measured – Influence of Material and Size

Different material properties significantly impact the choice of tension meter:

Key Considerations for Material Properties:

1. Material Hardness: Harder materials require more robust measurement mechanisms.
2. Surface Characteristics: Smooth surfaces may require anti-slip designs.
3. Diameter Range: Must match the applicable diameter range of the tension meter.
4. Elastic Modulus: Affects the accuracy of the measurement method.

Factor 4: Usage Environmental Conditions – Environmental Suitability Determines Reliability

Key Selection Points for Different Environments:

Laboratory Environment:

• Prioritize models with high accuracy and rich features.
• Consider data export and analysis functions.
• Recommendation: NTL Series, NZSH Series

Field Environment:

• Focus on sturdiness, durability, water and dust resistance.
• Battery life is crucial.
• Recommendation: NSZ Series, Handheld Wire Rope Tensiometer

High Altitude or Confined Spaces:

• Lightweight and portability are primary considerations.
• Ease of operation is important.
• Recommendation: NTL Series,

Factor 5: Data Management Requirements – From Simple Recording to Smart Analysis

Choose the appropriate functions based on data management needs:

Data Traceability Type:

• Requires data storage function.
• Recommended Models: Handheld Wire Rope Tensiometer​ (5 groups storage)

Advanced Analysis Type:

• Requires data export and communication interface.
• Recommended Models: NZSH Series​ (USB interface), NGZ Series​ (Computer interface)

Factor 6: Budget Considerations – The Optimal Cost-Performance Solution

Budget Planning Suggestions:

• Mid-Range Type​ (3000-8000 RMB): NTL Series, NZSH Series
• High-End Type​ (8000+ RMB): NSZ Series, Specialized NGZ/NDZ Series

Five-Step Selection Process Guide: Complete Path from Requirement to Decision

Step 1: Define Application Requirements (Requirement Analysis Checklist

Fill out the following requirement checklist

• Type of object to be measured: __________
• Estimated maximum tension value: __________
• Accuracy requirement: __________
• Usage environment: □Laboratory □Field □Production Site □Other
• Data management needs: □Simple Recording □Data Storage □Export & Analysis
• Budget range: __________

Step 2: Detailed Parameter Comparison (In-depth Comparison of Technical Specifications)

Conduct a detailed comparison of the 2-3 selected models, focusing on:

Comparison Dimension Checklist:

• ✅ Does the range meet the requirements?
• ✅ Does the accuracy meet the application needs?
• ✅ Are special functions necessary (e.g., data export, peak hold)?
• ✅ Ease of use (operating interface, weight, size, etc.)
• ✅ Is the price within the budget?
• ✅ Availability of after-sales service and technical support.

Step 3: On-site Test Verification (If Conditions Permit)

Key Testing Points:

1. Simulate Actual Working Conditions: Test in an environment close to actual use.
2. Repeatability Test: Multiple measurements under the same conditions to check consistency.
3. Operational Convenience: Evaluate the convenience during actual operation.
4. Data Accuracy: Verify against known standards or other equipment.

Step 4: Final Procurement Decision (Comprehensive Evaluation Matrix)

Create a comprehensive evaluation table to quantify various indicators:

Example Evaluation Table

Selection Recommendations for Different Industries: Precise Matching of Industry Needs

Power Industry Selection Guide

Industry Characteristics:

• Large measurement tension (usually several KN to tens of KN).
• Field environment requires sturdy equipment.
• High safety requirements, medium accuracy requirements.

Recommended Models: NSZ Series, ZGZ Series

Reasons for Selection:

• The NSZ series has a large range, suitable for high-voltage transmission line monitoring.
• The NGZ series is specifically designed for copper strands, suitable for power distribution lines.
• Both have adaptability to field environments.

Success Case: A provincial power grid company used the NSZ-100KN model for quarterly inspection of 500kV transmission lines, achieving predictive maintenance and reducing line failure rate by 30%

Elevator Industry Selection Guide

Industry Characteristics:

• High specialization requires dedicated equipment.
• Strict safety regulations.
• Requires data recording and traceability functions.

Recommended Model: DNZ Elevator Rope Tension Meter

Reasons for Selection

• Designed specifically for elevator wire ropes, with built-in common parameters.
• Complies with elevator safety inspection code requirements.
• Data storage function meets safety traceability needs.

Compliance Statement: The NDZ series meets the requirements for wire rope tension measurement in the "Rules for Supervision and Regular Inspection of Elevators".

Textile and Chemical Fiber Industry Selection Guide

Industry Characteristics:

• Small measured force values (usually a few cN to tens of N).
• Relatively high accuracy requirements.
• Needs to adapt to different material characteristics.

Recommended Model: NZSH Handheld Digital Tensiometer

Reasons for Selection:

• Designed for filamentous materials, ensuring high measurement accuracy.
• Thickness compensation function adapts to materials of different diameters.
• USB data export facilitates quality analysis and process control.

Scientific Research Institution Selection Guide

Industry Characteristics:

Recommended Models: NTL Series

Reasons for Selection:

• The NTL series has an accuracy of ±0.5%, meeting research requirements.
• Multiple unit switches adapt to different research needs.
• Small and portable, suitable for various laboratory scenarios.

General Industrial Inspection Selection Guide

Industry Characteristics:

• Diverse application scenarios.
• Need to balance performance and price.
• Ease of operation is important.

Recommended Model: Handheld Wire Rope Tensiometer

Reasons for Selection:

• Wide range of applications, 500N-2500N range covers most industrial needs.
• Good portability, suitable for various on-site inspection tasks.
• Good cost-effectiveness, practical functions.

Usage and Maintenance Recommendations: Best Practices to Extend Equipment Life

Daily Usage Specifications

1. Correct Operation Procedure
   • Check battery level before use.
   • Select the correct measurement mode and unit.
   • Ensure the object to be measured is correctly installed and positioned.
   • Apply force smoothly, avoid impact loads.
2. Environmental Adaptation Measures
   • Avoid use under extreme temperatures.
   • Prevent damp and corrosive environments.
   • Keep away from strong electromagnetic interference sources.

Regular Calibration and Maintenance

Recommended Calibration Cycle:

• Laboratory environment: Calibrate every 12 months.
• Industrial site: Calibrate every 6 months.
• High-intensity use: Check accuracy every 3 months.

Maintenance Checklist:

• [ ] Battery level and charging status.
• [ ] Accuracy of sensor zero point.
• [ ] Wear condition of mechanical parts.
• [ ] Normal function of display and buttons.
• [ ] Normal function of data storage and export.

Common Fault Handling Guide

Table: Common Tension Meter Faults and Solution

Tension Meter Selection FAQ

Q1: How should the accuracy index of a tension meter be understood?

A: The accuracy of a tension meter is usually expressed as a percentage, such as ±1%. This means that within the range, the maximum error of the measurement value does not exceed 1% of the full scale (F.S.). For example, for a 1000N tension meter with ±1% accuracy, the measurement error does not exceed ±10N. When selecting, consider the actual required accuracy level; higher is not always better, it must match the application scenario.

Q2: Which is better, non-contact or contact measurement?

A: Both methods have their advantages:

• Non-contact​ (e.g., NSZ series): Does not affect the measured object, suitable for online monitoring, but accuracy is relatively lower.
• Contact​ (e.g., ATL series): High measurement accuracy, but requires contact with the measured object.
  The choice depends mainly on the required measurement accuracy and whether contact with the object is allowed.

Q3: How to determine if a tension meter needs calibration?

A: Calibration is needed under the following circumstances:

1. The specified calibration cycle is reached (usually 6-12 months).
2. The equipment has undergone severe impact or falling.
3. The measurement result shows a significant deviation from a known standard.
4. After use under extreme environmental conditions.

Q4: How should the unit of the tension meter be selected?

A: Unit selection mainly considers:

1. Industry Conventions: Different industries have commonly used units (e.g., elevators often use Kg).
2. Calculation Convenience: Choose units consistent with subsequent calculations.
3. Standardization: Use unified units within the same project to avoid confusion.
   Most tension meters support switching between multiple units and can be flexibly selected as needed.

Q5: How should I select a model when the budget is limited?

A: When the budget is limited, consider the following strategies:

1. Identify Core Needs: Focus on the most necessary functions, eliminate non-core functions.
2. Consider Cost Performance: Choose models with practical functions and moderate prices (e.g., Handheld Wire Rope Tensiometer).
3. Phased Procurement: Purchase a basic model first, upgrade later as needed.
4. Leasing Option: For short-term projects, consider leasing instead of buying.

Conclusion: Make an Informed Tension Meter Selection Decision

Selecting the right tension meter​ is a decision-making process that requires comprehensive consideration of multiple factors such as measurement needs, accuracy requirements, usage environment, data management needs, and budget. Through the systematic introduction in this article, you should be able to:

1. Clarify Your Needs: Determine key selection parameters based on actual application scenarios.
2. Understand Product Differences: Master the characteristics and applicable scenarios of the seven mainstream tension meters.
3. Follow a Scientific Process: Make rational decisions by adhering to the 5-step selection methodology.
4. Avoid Common Pitfalls: Steer clear of frequent mistakes and traps during the selection process.

Any question, freely contact us!
