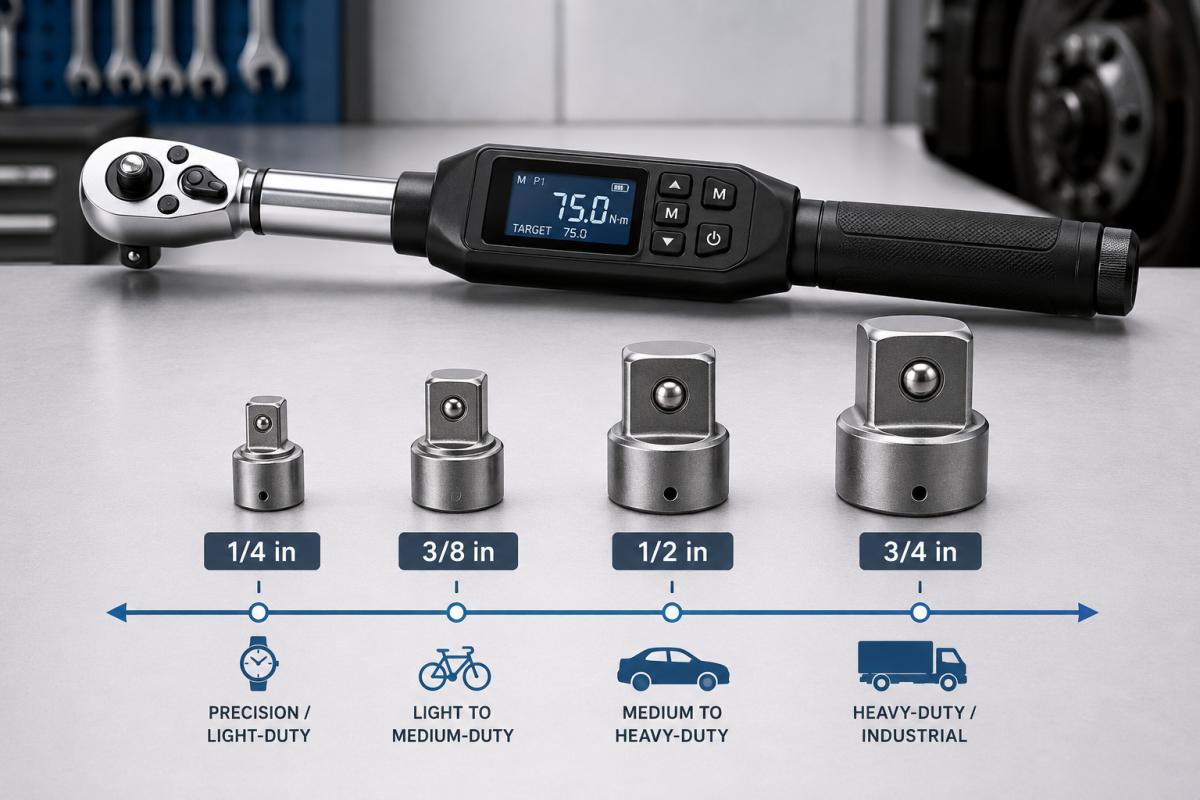

1/4 vs 3/8 vs 1/2 vs 3/4 Inch Digital Torque Wrench: Which Drive Size Do You Need?

Choosing a digital torque wrench is not only about accuracy, display functions or maximum torque.

You also need to select the correct drive size.

The most common options are:

• 1/4 inch
• 3/8 inch
• 1/2 inch
• 3/4 inch

A drive that is too small may not suit the torque level or socket system used in your application. A drive that is unnecessarily large may make the wrench heavier, longer and more difficult to use in restricted spaces.

However, there is another important point that buyers often miss:

Drive size and torque range are related, but they are not the same specification.

For example, the NEWJIELI digital torque wrench range includes both a 1/4-inch and a 3/8-inch model with a maximum operating value of 30 N·m. It also includes both 3/8-inch and 1/2-inch models rated up to 135 N·m.

Therefore, the correct choice depends on more than simply selecting the largest available square drive.

This guide explains how 1/4, 3/8, 1/2 and 3/4-inch digital torque wrenches differ, where each size is normally used and how professional buyers can select the right model.

Quick Answer: Which Digital Torque Wrench Drive Size Do You Need?

As a general starting point:

This table is only a starting point.

Your final selection should be based on:

1. The required torque value
2. The wrench’s stated accuracy range
3. The square drive used by your sockets
4. Available working space
5. Fastener and application requirements

The most suitable drive is not necessarily the largest one. It is the size that matches both your working torque range and your socket system.

What Does Torque Wrench Drive Size Mean?

The drive size refers to the square connection between the torque wrench and the socket.

For example, a 1/2-inch digital torque wrench has a 1/2-inch square drive designed to connect to 1/2-inch drive sockets and accessories.

It does not mean:

• The bolt is 1/2 inch in diameter
• The socket opening is 1/2 inch
• Every 1/2-inch wrench has the same torque range

This distinction is important.

A socket may have a 19 mm opening for the fastener but still use a 1/2-inch square drive on the tool side.

The square-drive size describes the connection between the wrench and the socket—not the dimensions of the nut or bolt itself.

Why Does Drive Size Matter?

Drive size affects several practical parts of the tightening process.

1. Socket Compatibility

The wrench drive should match the square-drive size of the sockets used at the workstation.

Although reducers and adapters are available, relying on multiple adapters can:

• Increase overall tool height
• Reduce access in confined areas
• Introduce another connection point
• Make the tool less convenient during repeated work
• Create a weaker point in a high-torque setup

For production lines and regular maintenance work, directly matching the wrench and socket drive is generally the cleaner solution.

2. Available Torque Range

Larger drive sizes are normally associated with higher torque capacity, while smaller drives are commonly used for lower torque applications.

However, product ranges can overlap.

The NEWJIELI range provides a useful example:

• 30 N·m is available with either a 1/4-inch or 3/8-inch drive.
• 135 N·m is available with either a 3/8-inch or 1/2-inch drive.

This means drive size alone does not tell you the complete torque capability of a wrench.

Always check the specific model’s operating range.

3. Tool Size and Accessibility

Smaller-drive torque wrenches generally have:

• More compact ratchet heads
• Shorter bodies
• Lower overall weight
• Better access around small components

Larger-drive models generally provide:

• Stronger square-drive connections
• Longer handles
• More leverage
• Better suitability for high-torque work

A large wrench may provide sufficient torque but still be unsuitable if the fastener is located inside a narrow machine enclosure.

4. Operator Effort

Torque depends on the force applied and the effective lever length.

A longer wrench makes it easier for the operator to achieve a higher torque value with less hand force. This is one reason higher-capacity torque wrenches tend to have longer handles.

However, extra length can make a wrench harder to position in restricted areas.

The correct tool therefore needs to balance:

• Torque capacity
• Leverage
• Access
• Operator comfort
• Repeated-use requirements

NEWJIELI Digital Torque Wrench Drive Size Comparison

The NEWJIELI economical digital torque wrench series covers 1/4, 3/8, 1/2 and 3/4-inch square drives.

Its stated accuracy is:

• ±2% clockwise
• ±2.5% counterclockwise
• Applicable from 20% to 100% of the maximum operating range

The following table compares the available models.

The approximate accuracy ranges in this table are calculated from the stated 20% to 100% range.

This table highlights an important purchasing principle:

Select the model around the torque values used regularly—not only the highest torque you may occasionally encounter.

When Should You Choose a 1/4-Inch Digital Torque Wrench?

A 1/4-inch digital torque wrench is generally the most compact option.

It is normally suitable for relatively small fasteners and low-torque work where access and control are more important than maximum leverage.

Common Applications

A 1/4-inch model may be suitable for:

• Precision equipment assembly
• Small machinery components
• Electrical and electronic enclosures
• Automotive interior components
• Small engine parts
• Bicycles and light mechanical equipment
• Laboratory or inspection workstations

NEWJIELI 1/4-Inch Options

The NEWJIELI range includes:

The NBS2-10 is better suited to applications that regularly operate at very low torque.

The NBS2-30 provides broader capacity while retaining the smaller 1/4-inch square drive.

Advantages of a 1/4-Inch Drive

• Compact ratchet head
• Easier access in restricted spaces
• Better suited to small sockets
• More appropriate for low-torque work
• Lower risk of selecting an unnecessarily large tool

Limitations

• Not intended for high-torque industrial fasteners
• Less compatible with larger socket systems
• Lower leverage than longer 1/2 or 3/4-inch models

Choose a 1/4-inch model when the normal torque requirement is low and the existing socket system already uses a 1/4-inch drive.

When Should You Choose a 3/8-Inch Digital Torque Wrench?

The 3/8-inch drive is often the most versatile option for low-to-medium torque work.

It provides more capacity than a typical 1/4-inch wrench while remaining more compact than many 1/2-inch models.

Common Applications

A 3/8-inch digital torque wrench is commonly considered for:

• Automotive engine work
• Motorcycle maintenance
• Machinery assembly
• Equipment servicing
• Production inspection
• Medium-sized fasteners
• General industrial maintenance

NEWJIELI 3/8-Inch Options

This range gives buyers several ways to position the normal working torque inside the wrench’s stated accuracy range.

Advantages of a 3/8-Inch Drive

• Broad selection of torque ranges
• Good balance between access and strength
• Common socket availability
• Suitable for many automotive and machinery tasks
• More compact than most high-capacity models

Limitations

• May not provide enough capacity for high-torque wheel, heavy machinery or commercial vehicle work
• Some larger sockets are more commonly supplied with 1/2-inch drives
• A 3/8-inch square drive may not be the preferred connection for continuous work near the upper end of a high torque range

For many maintenance teams, the 3/8-inch drive is the “middle ground”—but it should still be selected according to the actual torque specification.

When Should You Choose a 1/2-Inch Digital Torque Wrench?

A 1/2-inch digital torque wrench is a common choice for medium-to-high torque automotive and industrial applications.

It usually offers more leverage and is compatible with the larger sockets commonly found in vehicle repair and machinery maintenance.

Common Applications

A 1/2-inch model may be used for:

• Wheel and hub fasteners
• Suspension work
• Automotive drivetrain components
• Machinery installation
• Equipment assembly
• Industrial maintenance
• Medium-to-large bolts

Always follow the vehicle manufacturer, machine manufacturer or process specification for the required torque value.

NEWJIELI 1/2-Inch Options

Advantages of a 1/2-Inch Drive

• Suitable for higher torque values
• Compatible with many automotive and industrial sockets
• Longer handle provides increased leverage
• Stronger connection for larger fasteners
• Useful for repeated medium-to-high torque work

Limitations

• Larger and heavier than 1/4 or 3/8-inch tools
• More difficult to use in narrow spaces
• May be unsuitable for very low-torque fasteners
• A high-capacity model may place lower working values outside the stated accuracy range

A 1/2-inch drive is not automatically “more professional” than a 3/8-inch drive. It is simply more appropriate when the torque range, socket system and physical access require it.

When Should You Choose a 3/4-Inch Digital Torque Wrench?

A 3/4-inch digital torque wrench is intended for high-torque work involving larger fasteners and heavier equipment.

It has a larger drive, longer body and greater torque capacity than the smaller models.

Common Applications

A 3/4-inch model may be considered for:

• Heavy machinery
• Commercial vehicles
• Agricultural equipment
• Industrial installations
• Large mechanical assemblies
• Rail vehicle maintenance
• Energy equipment inspection
• High-torque flange or structural fasteners within the tool’s rated range

NEWJIELI 3/4-Inch Options

Advantages of a 3/4-Inch Drive

• High torque capacity
• Stronger square-drive connection
• Compatible with heavy-duty socket systems
• Longer handle reduces the force required from the operator
• Suitable for large industrial fasteners

Limitations

• Heavier and longer
• Requires more operating space
• Not appropriate for low-torque work
• Larger tools can increase operator fatigue during repeated use
• Torque requirements above the hand tool’s capacity may require a torque multiplier, powered tool or hydraulic system

For very high torque values, a hand-operated digital torque wrench may no longer be the most appropriate tool. Torque multipliers are specifically designed to produce higher output torque where operator force or available space is limited.

1/4 vs 3/8 Inch: What If Both Wrenches Cover 30 N·m?

This is where drive-size selection becomes more interesting.

The NEWJIELI range includes:

• NBS2-30: 1/4-inch drive, maximum 30 N·m
• NBS3-30: 3/8-inch drive, maximum 30 N·m

Both models cover the same maximum torque.

So which one should you choose?

Choose the 1/4-Inch Version When:

• Your sockets are mainly 1/4-inch drive
• The workstation uses small fasteners
• Access is limited
• A compact ratchet head is important
• The tool is used mainly for precision or light assembly

Choose the 3/8-Inch Version When:

• Your sockets are mainly 3/8-inch drive
• The workstation also handles larger sockets
• You want consistency with other 3/8-inch tools
• A more robust drive connection is preferred
• The application is part of a wider automotive or machinery tool system

The torque range may be identical, but the workstation compatibility is different.

3/8 vs 1/2 Inch: What If Both Wrenches Cover 135 N·m?

The same overlap appears at 135 N·m:

• NBS3-135: 3/8-inch drive
• NBS4-135: 1/2-inch drive

Again, the decision should not be based on maximum torque alone.

Choose the 3/8-Inch Version When:

• Space is restricted
• Smaller head dimensions are useful
• Existing sockets use a 3/8-inch drive
• The wrench is also used for lower or medium-torque tasks
• Lower weight is important

Choose the 1/2-Inch Version When:

• Existing sockets use a 1/2-inch drive
• The workstation handles larger fasteners
• Greater leverage is preferred
• The application is part of automotive chassis or machinery work
• The tool will regularly operate around the upper part of the range

This overlap demonstrates why the question should not be:

“Which drive size can produce 135 N·m?”

It should be:

“Which 135 N·m model fits my sockets, workspace and operating conditions?”

Does a Larger Drive Size Mean Better Accuracy?

No.

Drive size mainly affects:

• Socket compatibility
• Physical strength
• Tool dimensions
• Leverage
• Typical torque capacity

Accuracy is a separate specification.

For example, different NEWJIELI drive sizes share the same stated accuracy specification:

• ±2% clockwise
• ±2.5% counterclockwise
• From 20% to 100% of maximum operating range

Therefore, moving from a 3/8-inch to a 1/2-inch drive does not automatically improve measurement accuracy.

Professional buyers should evaluate accuracy according to:

• Direction
• Applicable torque range
• Calibration condition
• Measurement requirements
• Application tolerance

The current published edition of ISO 6789-1 covers conformance testing and marking requirements for hand torque tools, while ISO 6789-2 addresses calibration methods and measurement uncertainty. Both published 2017 editions are currently marked by ISO as standards to be revised, with committee drafts under development.

Should You Choose the Largest Torque Range “Just in Case”?

Usually, no.

Suppose your normal tightening work is around 40 N·m.

Consider two models:

• A 60 N·m wrench has an approximate stated accuracy range of 12–60 N·m.
• A 340 N·m wrench has an approximate stated accuracy range of 68–340 N·m.

Although the 340 N·m wrench has much greater maximum capacity, 40 N·m falls below its stated 20% accuracy point.

The smaller model may therefore be a more appropriate match for the regular task.

This does not mean the higher-capacity wrench cannot display a lower value. It means the manufacturer’s stated accuracy specification should not automatically be assumed to apply outside its defined range.

A useful purchasing principle is:

Choose a wrench that places your regular working torque comfortably inside its stated accuracy range.

Can You Use a Drive Adapter?

A square-drive adapter can allow a wrench to connect to a socket with a different drive size.

For example:

• 3/8-inch wrench to 1/2-inch socket
• 1/2-inch wrench to 3/8-inch socket

However, adapters should not be used as a substitute for proper model selection when the same setup is used repeatedly.

Potential Problems With Adapters

• Increased tool height
• Reduced access
• Additional movement between connections
• Reduced convenience on production lines
• Possible strength limitations
• Greater risk of using a small accessory at an unsuitable torque

A simple in-line square-drive adapter does not intentionally extend the wrench’s effective lever arm. However, an offset attachment such as a crowfoot can change the effective length and therefore change the torque applied to the fastener.

When an attachment increases the effective lever length, a corrected wrench setting may be required. Norbar provides an official torque wrench extension calculator for this type of calculation.

How to Choose the Correct Digital Torque Wrench Drive Size

A professional selection process can be completed in five steps.

Step 1: Confirm the Required Torque

Start with the specified tightening torque from:

• The equipment manufacturer
• Vehicle service information
• An engineering drawing
• A production process sheet
• A customer requirement

Do not select the tool before confirming the real working torque.

Step 2: Check the Stated Accuracy Range

Identify the model whose stated accuracy range includes the torque values used regularly.

For the NEWJIELI series, the stated accuracy applies from 20% to 100% of the maximum operating range.

For example:

• Regular work around 20 N·m: consider a 30, 60 or 85 N·m model according to the full application.
• Regular work around 100 N·m: consider a 135 or 200 N·m model.
• Regular work around 300 N·m: consider a 340 or 500 N·m model.
• Regular work around 600 N·m: consider the 850 N·m model.

These examples are only range-selection references. The required drive size and socket system must also be checked.

Step 3: Match the Existing Socket System

Check which square-drive size is already used by:

• Sockets
• Extensions
• Ratchet accessories
• Crowfoot heads
• Production fixtures
• Tool-control systems

For B2B buyers, compatibility with existing tools can reduce:

• Accessory purchasing costs
• Adapter use
• Operator errors
• Tool-change time
• Inventory complexity

Step 4: Evaluate the Working Space

Measure or inspect the space around the fastener.

Ask:

• Is there enough room for the ratchet head?
• Can the handle move through the required arc?
• Will the display remain visible?
• Is an extension required?
• Does the operator have enough clearance to apply force safely?

A smaller drive may be preferable even when a larger one can technically achieve the required torque.

Step 5: Consider Frequency and Operator Ergonomics

A tool used once a month may be selected differently from one used hundreds of times per shift.

For repeated work, consider:

• Handle length
• Tool weight
• Ratchet head size
• Display visibility
• Target-torque alerts
• Data recording
• Battery life
• Operator fatigue

The best tool is not only technically capable. It should also be practical for the people using it.

Common Drive Size Selection Mistakes

Mistake 1: Confusing Drive Size With Bolt Size

A 1/2-inch drive does not mean it is only used on 1/2-inch bolts.

The drive size describes the square connection to the socket.

Mistake 2: Choosing by Maximum Torque Alone

Two models can have the same maximum torque but different drive sizes.

Examples from the NEWJIELI range include:

• 30 N·m: 1/4 or 3/8 inch
• 135 N·m: 3/8 or 1/2 inch

Mistake 3: Buying the Largest Model for Every Job

A high-capacity wrench may be too large for the workspace and may place normal low-torque work outside the stated accuracy range.

Mistake 4: Ignoring the Existing Socket Inventory

Using a different drive size can create additional adapter and inventory requirements.

Mistake 5: Using Too Many Adapters

Adapters can make the tool longer, taller and less convenient.

An offset attachment may also change the effective lever length and require torque correction.

Mistake 6: Assuming Drive Size Determines Accuracy

Drive size and accuracy are separate specifications.

Always review the complete technical data.

Drive Size Selection Matrix

Questions B2B Buyers Should Ask Before Ordering

Before ordering digital torque wrenches for a workshop, production line or distribution business, confirm:

1. What torque values are used most frequently?
2. What are the minimum and maximum required torque values?
3. Which drive sizes are used by the existing sockets?
4. Will the wrench be used clockwise, counterclockwise or in both directions?
5. Over what part of the range does the stated accuracy apply?
6. Is calibration documentation required?
7. Is the ratchet head replaceable?
8. Is data storage required?
9. Which torque units are needed?
10. Are OEM branding, packaging or specification changes required?
11. How much working space is available around the fastener?
12. Is the tool intended for occasional maintenance or repeated production work?

These questions help the supplier recommend a model based on the application rather than only on a catalogue number.

NEWJIELI Digital Torque Wrench Options at a Glance

The NEWJIELI economical digital torque wrench series offers:

• 1/4, 3/8, 1/2 and 3/4-inch drive sizes
• Maximum operating values from 10 to 850 N·m
• ±2% clockwise accuracy
• ±2.5% counterclockwise accuracy
• Peak mode
• Real-time mode
• Preset mode
• N·m, kgf·cm, lbf·ft and lbf·in units
• LCD display
• LED and audible target indication
• Replaceable ratchet-head design
• Automatic shutdown

The broad model range allows professional buyers to select a wrench according to both torque requirements and socket-drive compatibility.

Frequently Asked Questions

What Is the Most Common Digital Torque Wrench Drive Size?

There is no single size that is correct for every industry.

The 3/8-inch drive is versatile for low-to-medium torque applications, while the 1/2-inch drive is widely used for automotive and medium-to-high torque work.

The correct choice depends on the torque range and socket system.

Is a 1/2-Inch Torque Wrench Better Than a 3/8-Inch Torque Wrench?

Not automatically.

A 1/2-inch wrench normally provides more capacity and leverage, while a 3/8-inch wrench is generally more compact.

If both cover the required torque, choose according to socket compatibility, access and frequency of use.

Can I Use a 1/2-Inch Socket on a 3/8-Inch Torque Wrench?

Yes, with a suitable adapter.

However, confirm that the adapter and wrench are rated for the required torque. For repeated professional use, directly matching the wrench and socket drive is usually more practical.

Does a Larger Drive Produce More Torque?

A larger drive is normally used on tools designed for higher torque, but the drive itself does not create torque.

Torque depends on applied force and lever length.

The wrench’s rated operating range determines how much torque it is designed to measure and apply.

Can a 3/8-Inch Digital Torque Wrench Be Used for Automotive Work?

Yes, depending on the specific task.

A 3/8-inch model may be suitable for engine components, motorcycles, general maintenance and medium-sized fasteners.

Higher-torque wheel, suspension or drivetrain applications may require a suitable 1/2-inch model.

Always follow the vehicle manufacturer’s specification.

When Do I Need a 3/4-Inch Digital Torque Wrench?

A 3/4-inch model is generally considered for large fasteners and high-torque work involving heavy machinery, commercial vehicles or industrial equipment.

For the NEWJIELI range, the 3/4-inch models provide maximum operating values of 500 and 850 N·m.

Does Changing Drive Size Affect Accuracy?

Not by itself.

Accuracy is determined by the wrench’s measurement system, calibration and stated specification.

However, using unsuitable adapters, offset extensions or incorrect operating techniques can affect the practical tightening result.

Should I Choose a Torque Wrench With a Range Much Higher Than I Need?

Not necessarily.

Your regular torque values should preferably fall within the range where the manufacturer states the accuracy specification applies.

An excessively large model may also be heavier and more difficult to use.

Conclusion

Choosing between a 1/4, 3/8, 1/2 and 3/4-inch digital torque wrench requires more than matching a number on the tool to a number on the socket.

A professional selection should consider:

• Required torque
• Stated accuracy range
• Socket compatibility
• Available working space
• Tool length and leverage
• Operator ergonomics
• Frequency of use
• Calibration requirements

As a practical guide:

• Choose 1/4 inch for compact, low-torque and precision work.
• Choose 3/8 inch for versatile low-to-medium torque applications.
• Choose 1/2 inch for automotive and medium-to-high torque work.
• Choose 3/4 inch for heavy-duty and high-torque industrial applications.

But remember:

Drive size is not the same as torque range.

When two drive sizes cover the same torque, the correct decision should be based on the sockets, workspace and operating conditions of the actual application.

For B2B buyers, providing the required torque range, preferred drive size and application details allows the supplier to recommend a more suitable digital torque wrench model.
