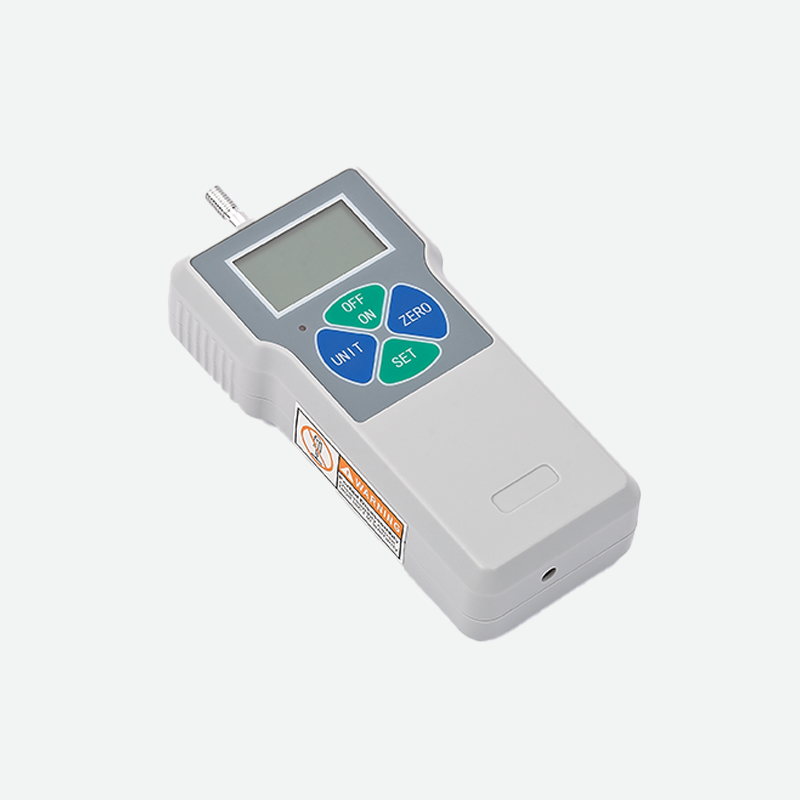

NEWJIELI Portable Economical Push Pull Gauge Force Meter with Units N/LB/Kg

The economical digital push-pull force meter is a new generation of digital display push-pull force meter developed by our company. The volume is 1/2 of the original, which is easy for users to carry around, and it is an easy-to-operate thrust and tensile force testing instrument. It is widely used in the push-pull load test, plugging force test, damage test, etc. of various products, and can be combined with various machines and fixtures to form a small experimental machine for different purposes.

Product Detail

product detail

Features

● Digital display,easy reading;

● In light weight,small size,easy to carry;

● Unit display:Lb,Kg,N

● The battery has over-load protection in case of short circuit and leakage of electricity .It also can tell you when the battery is running low.It adopt the 3.7V lithium battery and auto shut off with no operation in 10 minutes at the same time.

Product specification

Model	NJT-2	NJT-5	NJT-10	NJT-20	NJT-30	NJT-50	NJT-100	NJT-200	NJT-300	NJT-500
The max Load value	2N	3N	10N	20N	30N	50N	100N	200N	300N	500N
	0.2kg	0.3kg	1kg	2kg	3kg	5kg	10kg	20kg	30kg	50kg
	0.45Lb	0.65Lb	2.2Lb	4.5Lb	6.5Lb	11Lb	22Lb	45Lb	65Lb	110Lb
Load Value	0.001N		0.01N				0.1N
	0.001KG		0.001KG				0.01KG
	0.001Lb		0.001Lb				0.01Lb
Unit	Lb,Kg,N
Sensor structure	Built-in
Precision	±0.5%(10%~100% of full scale)
Item dimension	1607135mm
Weight	0.26kg
Power supply	3.7V lithium battery
Charging time	4~6 hours
Continuous usage time of battery	About 15 hours
Battery life	≥ 300 times
Charger	Input：AC100- 240V 50-60Hz Output： DC 5V 1000mA
Working temperature	5 ℃ ~35 ℃
Relative humidity	15%~80%RH
Work environment	No focus ,Non-corrosive in surroundings

Outline and installation of demensions

Screen display

① Peak mode: After turn on,enter into the measuring interface,click “SET” button can enter into the peak mode directly,record the Max. force value during measuring.

② Push pull force shows:do not move the gauge,the above arrow shows the pull force,the below arrow shows the push force.

③ Measuring force value display.

④ Three units:N(newton),kg(kilogram),lb(pound) display respectively ,press “UNIT” button to switch .

Power display.
The key introduction

● OFF/ON(start up ,shut down key):when press this key,turn on the power,appear measuring interface.Press this key again can shut down gauge.

● ZERO(zero key)The testing value on the screen can be zero when click this key.Press this key for a long time to return to the previous command interface.

● UNIT( switch unit key)It can switch three different unit s when click this key.In the test interface, long press this key, the measured value displayed on the screen will flip 180 degrees.
