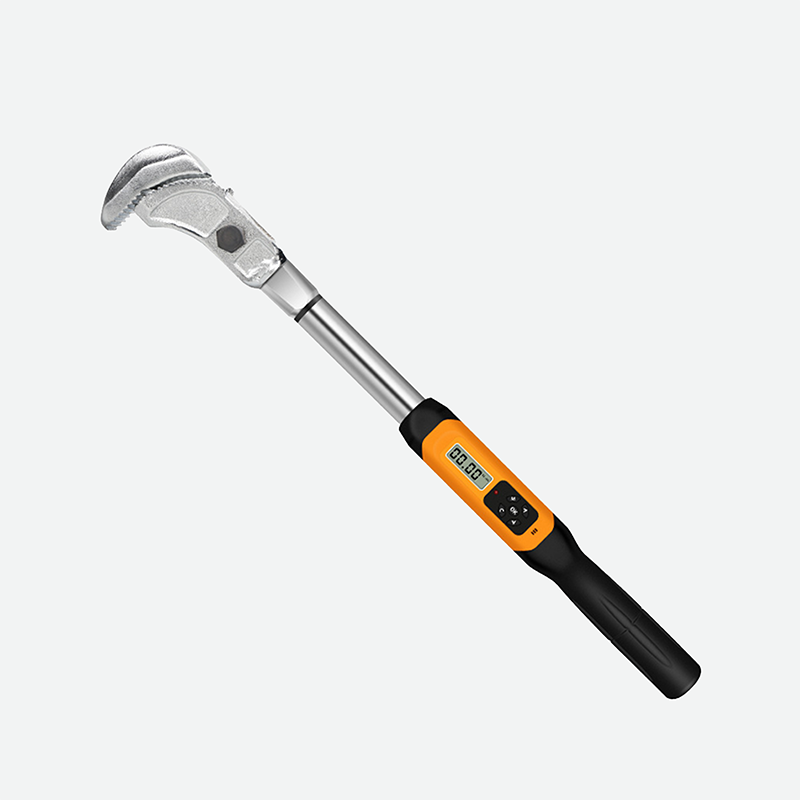

NEWJIELI Digital Torque Wrench With Rebar Head For Construction Mechanical Maintenance
Features
● Large Screen Display, backlight Function.
● Precision: Clockwise ±2%, counterclockwise ±2.5% (The total range of 20% ~ 100%).
● Buzzer and LED Light will be started when predetermined torque value is reached (Only in Peak Mode).
● Four types of engineering units (N.m, kgf.cm, lbf.ft, lbf.in).
● Three Measuring Modes: Real-Time Mode, Peak Mode, Preset Mode.
● Automatic shutdown: Switch itself off after 3 minutes automatically.
● 999 sets of record data can be stored.
Product specification
| Model | NGB4-340 | NGB4-410 | |
| Minimum value mark | 0.01 | ||
| Maximum operating range | N.m | 340 | 410 |
| ft.lb | 250 | 302.58 | |
| in.lb | 3009 | 3628.5 | |
| kgf.cm | 3467.03 | 4180.85 | |
| Connector（inches） | 1/2 | ||
| Buzzer range（N.m） | 17~340 | 20.5~410 | |
| Length(mm) | 595 | 715 | |
| Accuracy*1 | Clockwise：：±3% | ||
| Mode | Peak Mode（P）/Real-Time Mode（T） | ||
| Data storage capacity | 99 | ||
| Battery | 2pcs 1.5V 5# Battery | ||
| Operating mode | Peak mode (P) / real-time mode (T) / preset mode (Pre) | ||
| Units | N.m、kgf.cm、ft.lbf、in.lbf | ||
| Ratchet head form | Rebar Head | ||
| Numbers of key | 5 | ||
| Operating mode | Peak mode (P) / real-time mode (T) / preset mode (Pre) | ||
| Units | N.m、kgf.cm、ft.lbf、in.lbf | ||
| Operating temperature | -10℃~60℃ | ||
| Storage temperature | -20℃~70℃ | ||
| Humidity | No condensation can reach 90% | ||
| Drop test height | 1m | ||

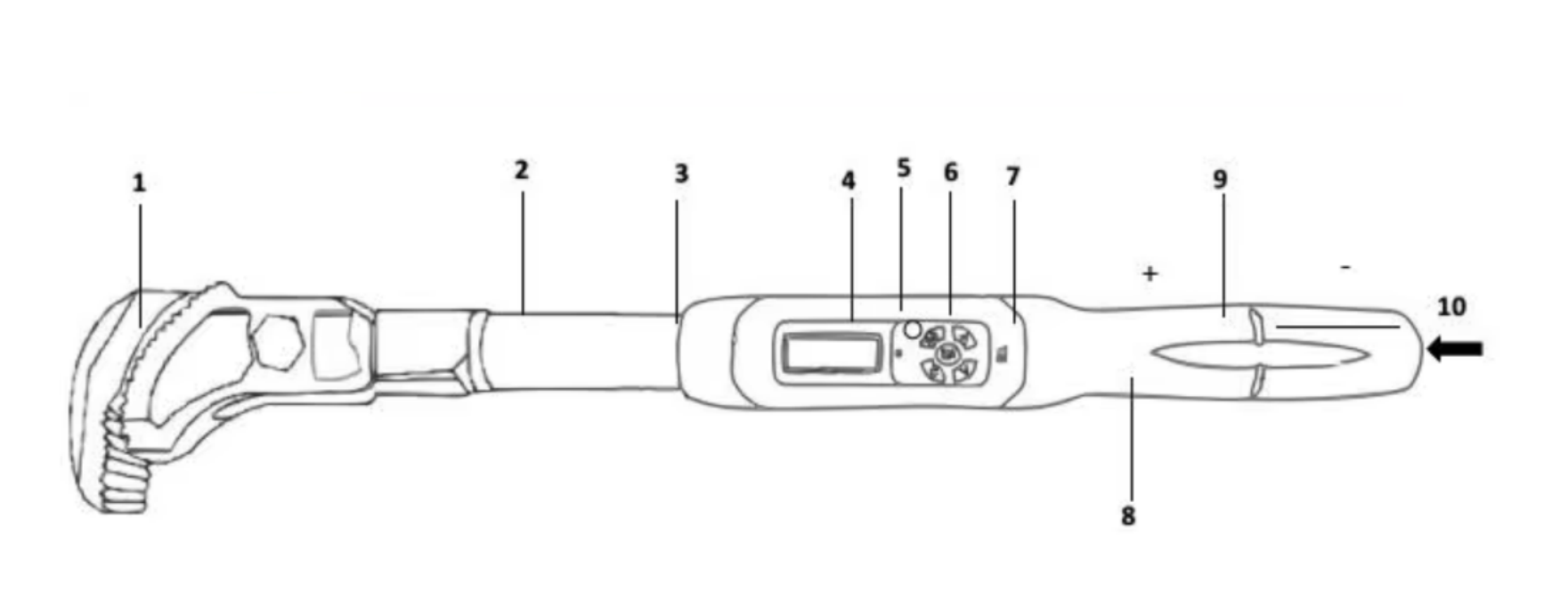

Product Structure
-
1、Rebar head
2、Pole
3、Sealing ring
4、LCD screen
5、Panel
6、Silicone button
7、Buzzer
8、Handle
9、Battery case
10、Battery cover
-

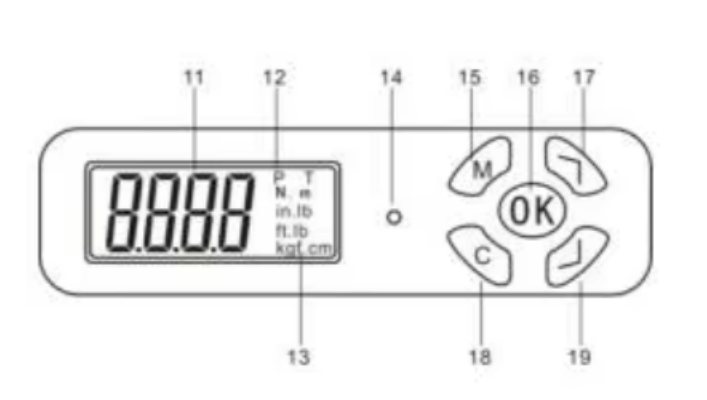

11、Torsional force value
12、P ( Peak Mode) T ( Real-Time Mode )
13、Unit ( N.m. in.lb. ft.lb. kgf.cm )
14、 LED light
15、 Menu Button
16、OK Button
17、Up Button
18、Cancel Button
19、Down Button
