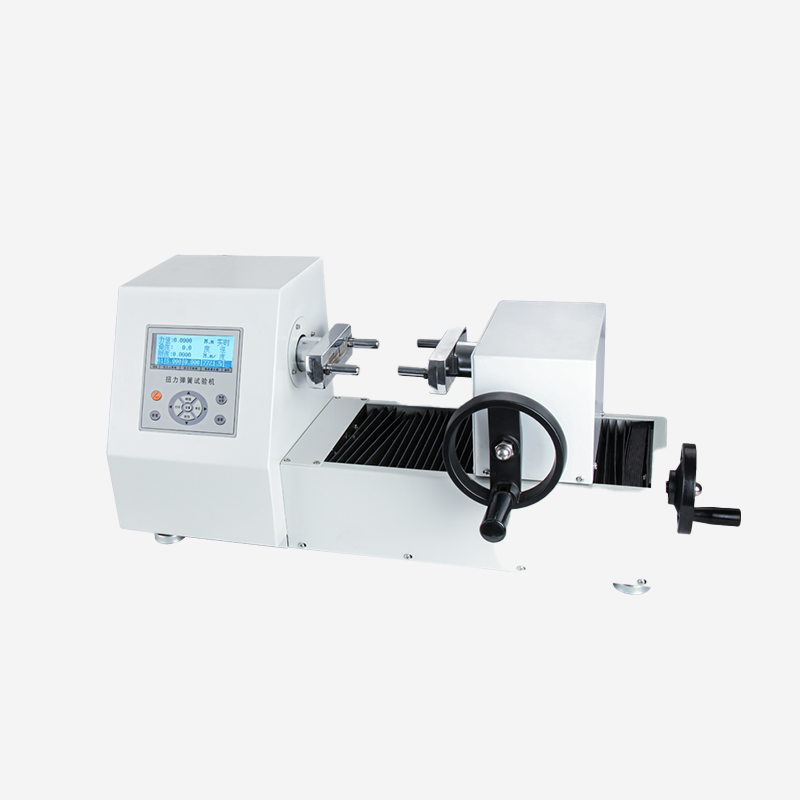

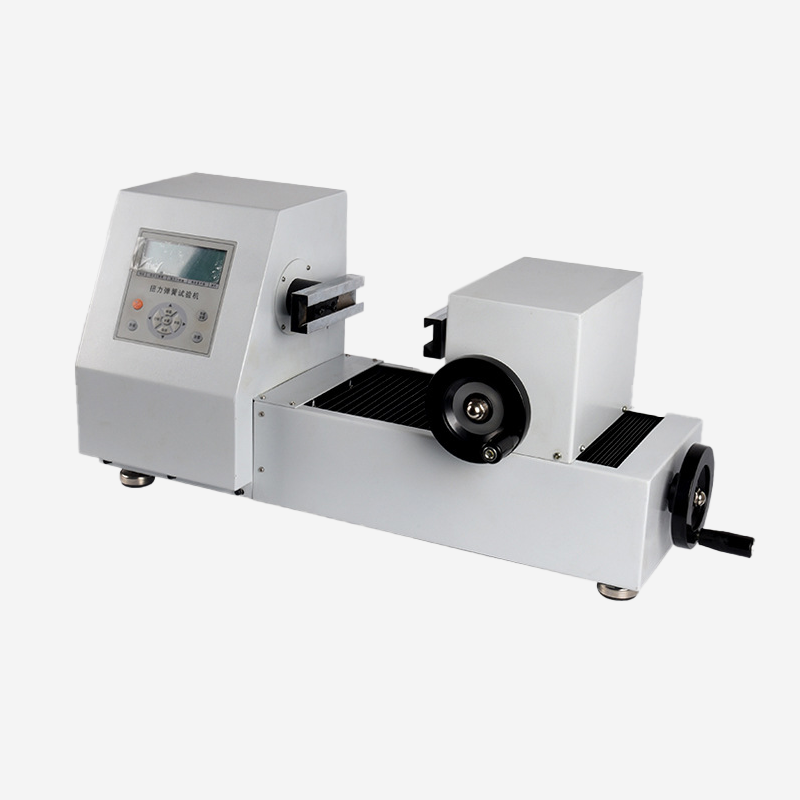

NEWJIELI Horizontal Torsion Spring Machine
product detail
Features
● High Precision and Clarity: Features high precision, high resolution, a rapid sampling rate, and a large display screen for easy readability.
● Customizable Alerts: The machine allows users to set upper and lower limits, with audible and visual alerts for easy monitoring.
● Multi-Parameter Display: Simultaneously shows three key parameters: torque value, angle of rotation, and spring rate.
● Unit Conversion: Supports conversion between three units: N·m, kgf·cm, and lbf·in, providing flexibility in measurements.
● Three Operating Modes: Offers three modes—real-time, peak, and automatic peak—allowing users to switch between them as needed.
● Peak Holding and Discharge: Capable of establishing peak holding and automatic discharge functions, with customizable release times.
● Auto Power Off Feature: Includes an auto power-off function that can be set according to user preferences.
● Auto Power Off Feature: Includes an auto power-off function that can be set according to user preferences.
● Extensive Memory Capacity: Equipped with a large memory that can store up to 99 sets of test data for easy retrieval.
● Optional Built-in Printer: Features an optional small built-in printer for convenient printing of test results.
● USB Connectivity: Comes with a USB interface for PC communication, enabling synchronous testing when connected to a computer.
Product specifications
| Model | NTD-0.5 | NTD-1 | NTD-2 | NTD-5 | NTD-10 | NTD-20 | NTD-30 | NTD-50 | |
| Brand | NEWJIELI | ||||||||
| Max torque | mN.m | 500 | 1000 | 2000 | 5000 | 10000 | 20000 | 30000 | 50000 |
| N.m | 0.5 | 1 | 2 | 5 | 10 | 20 | 30 | 50 | |
| Measurement range | mN.m | 5-500 | 10-1000 | 20-2000 | 50-5000 | 100-10000 | 200-20000 | 300-30000 | 500-50000 |
| N.m | 0.005-0.5 | 0.01-1 | 0.02-2 | 0.05-5 | 0.1-10 | 0.2-20 | 0.3-30 | 0.5-50 | |
| Angle Resolution | 0.1° | ||||||||
| angel range of measurement | 0~ ±9999.9° | ||||||||
| the length of specimen | 150mm | ||||||||
| precision | ±1% | ||||||||
| power pack | AC220V 50Hz | ||||||||
| outline dimension | 710×320×290(mm) | ||||||||
| weight | about 37.5Kg | ||||||||
| loading mode | manual | ||||||||
Product Structure
1、LCD 2、set up parameter name column 3、function keys
4、special measuring head 5、USB interface 6、power socket
7、printer
