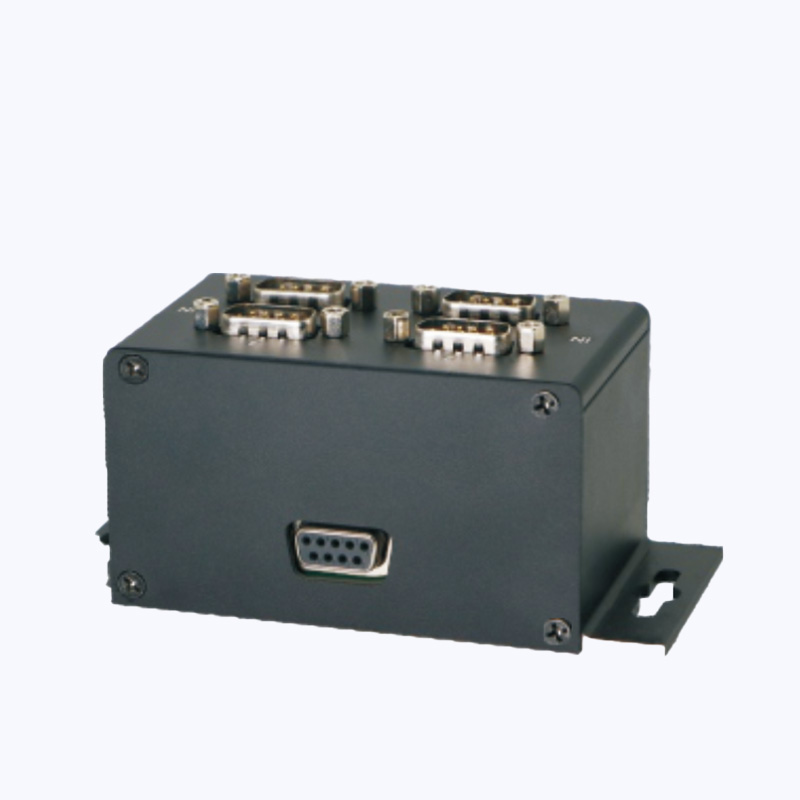

NEWJIELI Efficient Assembly Hub For Indicator
Features
● The number of channels can be combined freely, and 60 channel capacitive grating micrometers or 24 channel grating displacement sensors can be connected.
Product Specification
| Input port | DB9 port, RS232 signal |
| Output port | DB9 port, RS232/RS485 signal |
| Function | Collect displacement data of micrometer |
| Power supply | 12VAC-DC Adapter |
| Data output format | MODBUS standard protocol, RTU mode |
| Data transmission mode | 80H |
| Default device address | 80H |
| Default data start bit | 1 bit |
| Default data length | 8 digits |
| Default data stop bit | 2 digits |
| Default parity bit | None |
| Default baud rate | 38400bps |

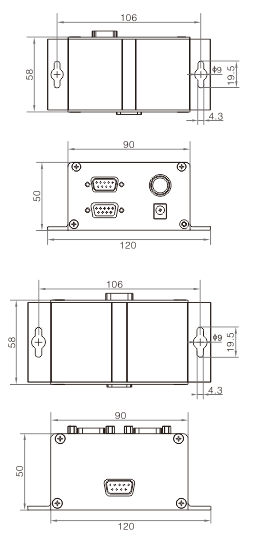

Product Structure
