NEWJIELI 0.01mm & 0.001mm Digital Tube Thickness Gauge For Measuring Pipe

Digital percentage tube thickness gauges and digital micrometer tube thickness gauges are precision instruments commonly used in modern measurement tools and widely used in fields such as mechanical manufacturing, material testing, and the electronics industry. It is mainly used to measure the wall thickness of various pipes It can provide a larger contact surface and reduce measurement errors caused by poor contact. Their high precision and ease of reading make them an indispensable tool in industrial production, quality control, and laboratory testing.

    Features

    ● Class A electrostatic protection

    ● Conversion between metric and imperial systems, with zero setting at any position

    ● Data output is available

    ● Fast response speed (3 m/s), with no overspeed error faults occurring

    ● No power-on crash faults occurring

    ● 3V environmentally friendly lithium battery

    ● Ceramic probe and cemented carbide probe

    Product Specification

    Model Measuring range Resolution Precision Throat depth
    NBG-10 0-10mm 0.01mm ±0.03mm 30mm
    NBG-10A 0-10mm 0.01mm ±0.03mm 60mm



    Model Measuring range Resolution Precision Throat depth
    NQG-10 0-10mm 0.001mm ±0.009mm 30mm
    NQG-10A 0-10mm 0.001mm ±0.009mm 60mm

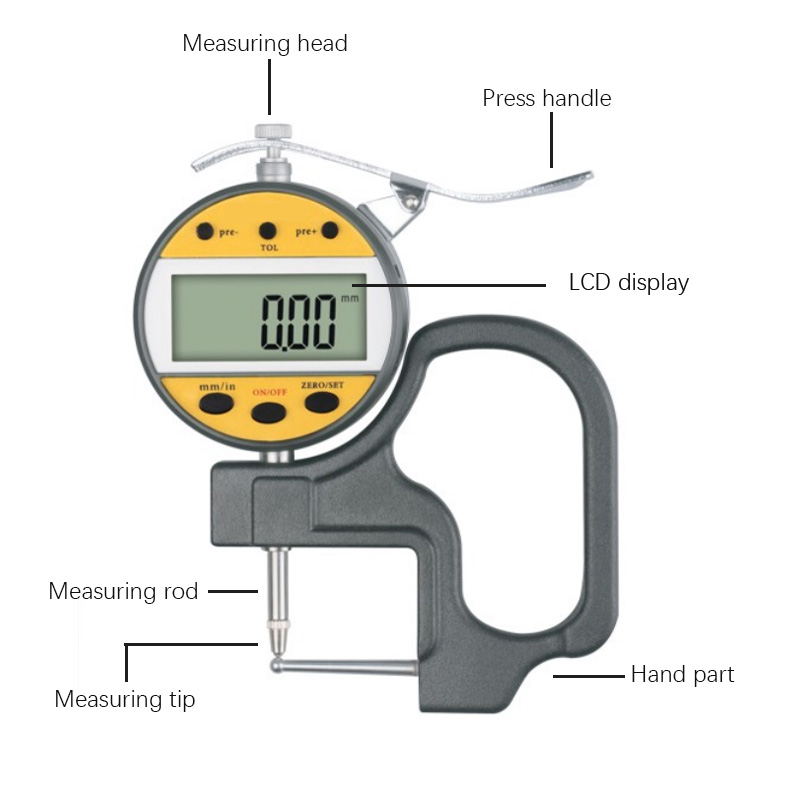

    Product Structure

    0.01mm Digital Tube Thickness Gauge detail.jpg
