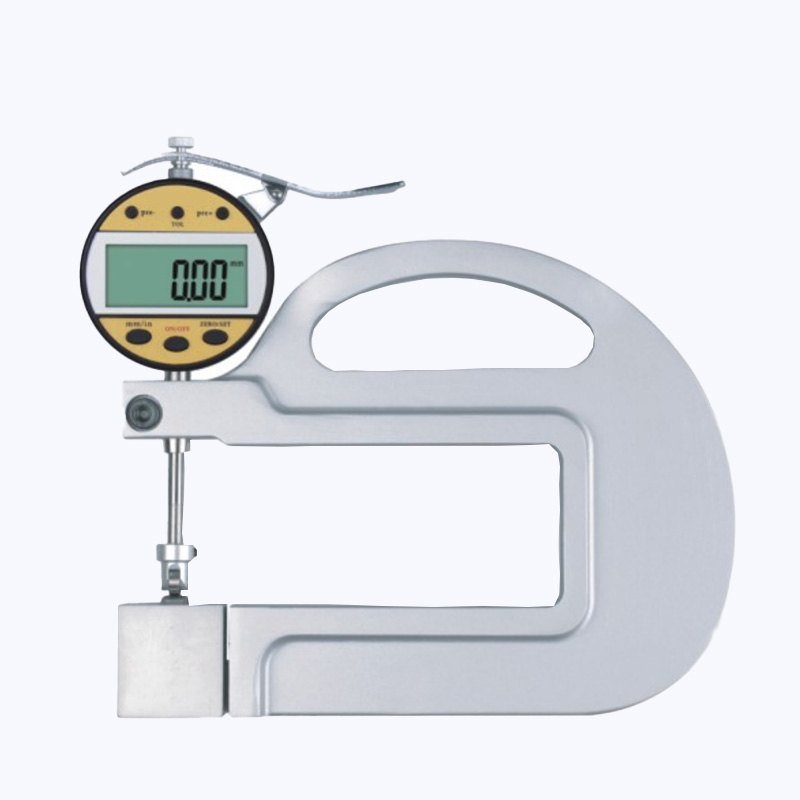

NEWJIELI 0.01mm & 0.001mm Digital Thickness Gauge With Roller Insert For Plastic, Rubber&Leather

Digital percentage thickness gauges and digital micrometer thickness gauges are precision instruments commonly used in modern measurement tools and widely used in fields such as mechanical manufacturing, material testing, and the electronics industry. It is suitable for curved or irregularly shaped materials, such as plastic, rubber, etc., and can adapt to different surface shapes. It can provide a larger contact surface and reduce measurement errors caused by poor contact. Their high precision and ease of reading make them an indispensable tool in industrial production, quality control, and laboratory testing.

    Features

    ● Class A electrostatic protection

    ● Conversion between metric and imperial systems, with zero setting at any position

    ● Data output is available

    ● Fast response speed (3 m/s), with no overspeed error faults occurring

    ● No power-on crash faults occurring

    ● 3V environmentally friendly lithium battery

    ● Ceramic probe and cemented carbide probe

    Product Specification

    Model Measuring range Resolution Precision Throat depth
    NBL-10A 0-10mm 0.01mm ±0.03mm 100mm



    Model Measuring range Resolution Precision Throat depth
    NQL-10A 0-10mm 0.001mm ±0.009mm 100mm
    NQL-10B 0-10mm 0.001mm ±0.009mm 100mm

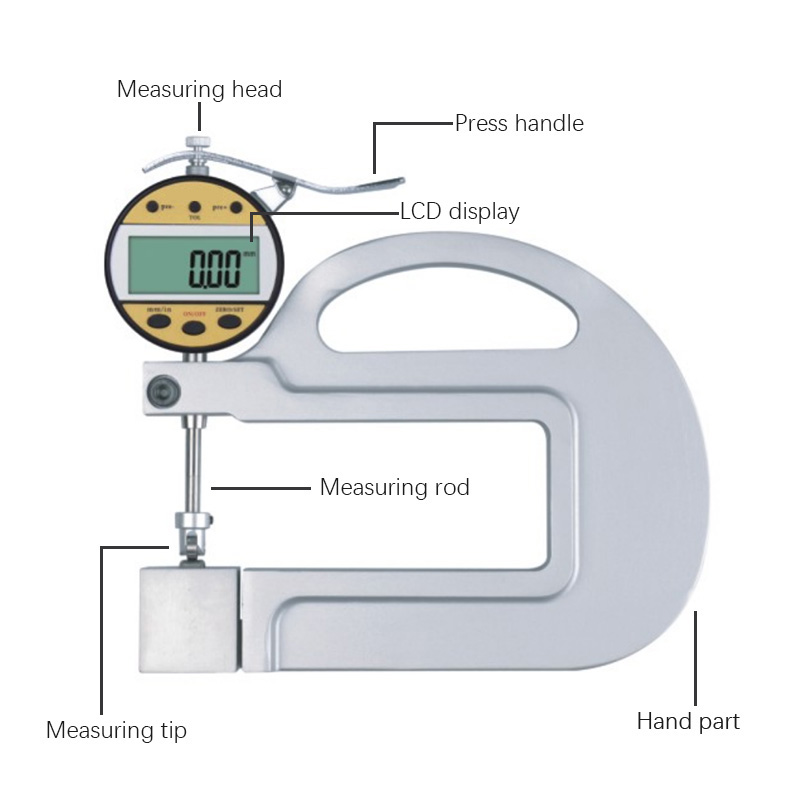

    Product Structure

    0.001mm Digital Thickness Gauge (roller insert)detail2.jpg
