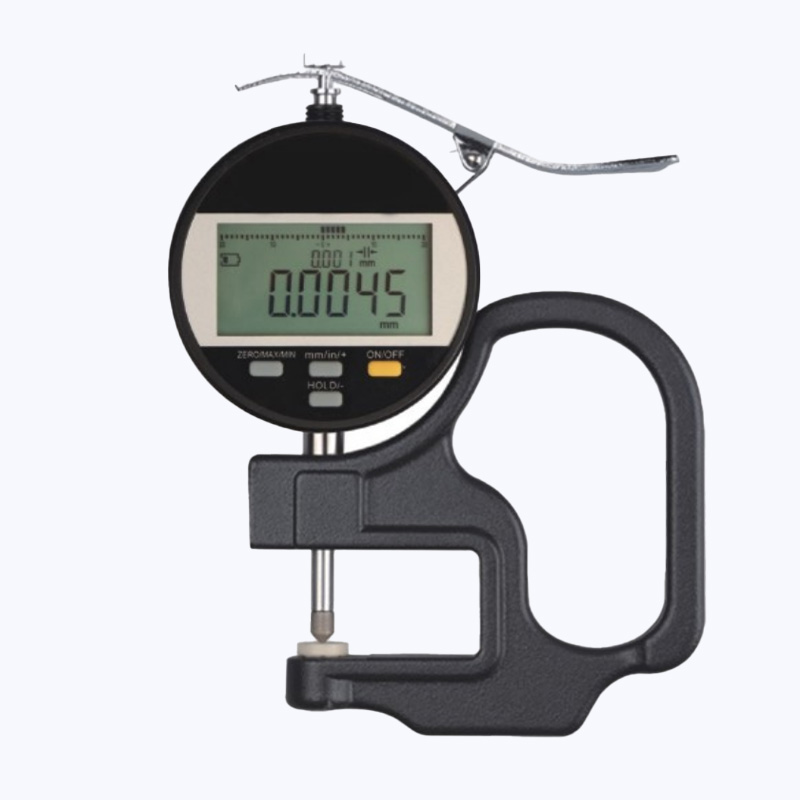

NEWJIELI 0.01mm & 0.001mm Digital Thickness Gauge For Tight Spaces
product detail
Features
● Class A electrostatic protection
● Conversion between metric and imperial systems, with zero setting at any position
● Data output is available
● Fast response speed (3 m/s), with no overspeed error faults occurring
● No power-on crash faults occurring
● 3V environmentally friendly lithium battery
● Ceramic probe and cemented carbide probe
Product Specification
Model | Measuring range | Resolution | Precision | Throat depth |
NBH-10 | 0-10mm | 0.01mm | ±0.03mm | 30mm |
NBH-10A | 0-10mm | 0.01mm | ±0.03mm | 30mm |
NBH-10B | 0-10mm | 0.01mm | ±0.03mm | 30mm |
NBH-20 | 0-20mm | 0.01mm | ±0.03mm | 30mm |
Model | Measuring range | Resolution | Precision | Throat depth |
NQH-10 | 0-10mm | 0.001mm | ±0.009mm | 30mm |
NQH-10A | 0-10mm | 0.001mm | ±0.009mm | 30mm |
NQH-10B | 0-10mm | 0.001mm | ±0.009mm | 30mm |
