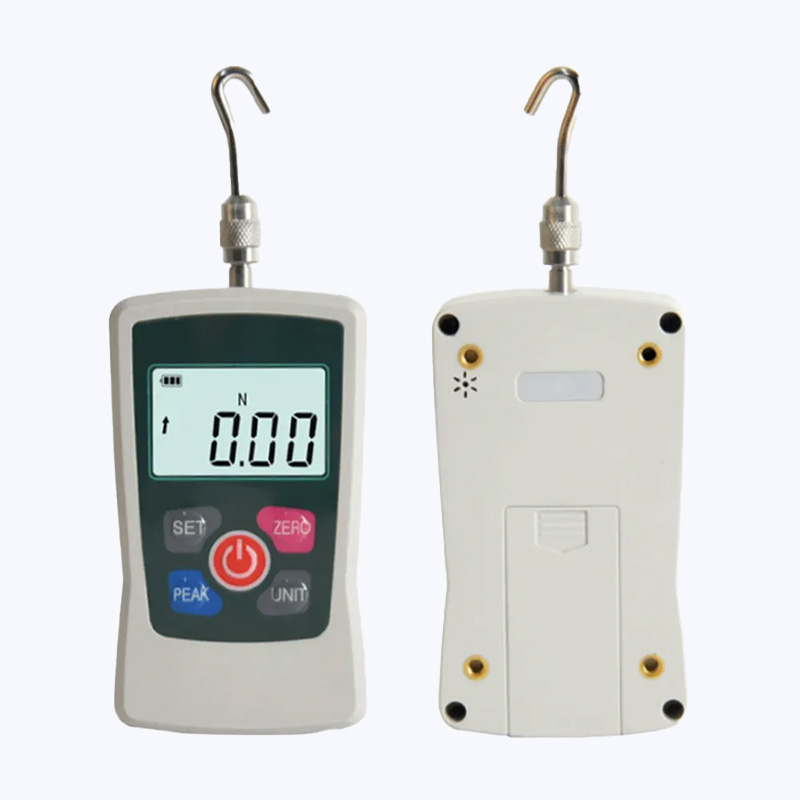

Mini Digital Push-Pull Force Gauge With High-efficiency

Digital display push-pull force meter is a small, simple, multi-functional and high-precision push and pull test instrument, which is widely used in electronic appliances, construction hardware, light industrial textiles, auto parts, lighters and other ignition devices, fire equipment, pen making Push-pull load, insertion force test, destructive test of locks, fishing gear, chemical industry, power machinery, scientific research institutions and other industries. The digital display has high resolution, fast sampling speed, and easy to use. It is a new generation of high-efficiency and high-precision push-pull test instrument.

Product Detail

product detail

Features

● High precision and high resolution.

● Three measurement mode for selection（Real time、Peak、First peak）.

● N(Newton),Kg (Kilogram) , Lb (Pound) and Oz(Ounce) four units for selection and conversion.

● Setting function of gravity acceleration----User can input at your option the accurate value of gravity acceleration at the using place so as to make the testing and unit conversion be more accurate.

● Upper and lower limits can be set for statistic analysis. The buzzer will alarm if exceeding the limits.

● Minimum force value shielding function: the data within the set minimum range can be shielded.

● Automatic shutdown function: The automatic shutdown time can be set, and the automatic shutdown can achieve a point saving effect when there is no operation for a long time.

● Power: 2pcs AAA battery (1.5V*2)

● Automatic backlight, buzzer alarm function.

Product Specifications

Model	NMF-2	NMF-3	NMF-5	NMF-10	NMF-20	NMF-30	NMF-50	NMF-100	NMF-200	NMF-300	NMF-500
Brand	NEWJIELI
Maximum load value	2N	3N	5N	10N	20N	30N	50N	100N	200N	300N	500N
	0.2kg	0.3kg	0.5kg	1kg	2kg	3kg	5kg	10kg	20kg	30kg	50kg
	0.45Lb	0.65Lb	1.1Lb	2.2Lb	4.5Lb	6.5Lb	11Lb	22Lb	45Lb	65Lb	110Lb
	7.2Oz	10.8Oz	18Oz	36Oz	72Oz	108Oz	180Oz	360Oz	720Oz	1080Oz	1800Oz
Load division value	0.001N			0.01N				0.1N
	0.001kg			0.001kg				0.01kg
	0.001Lb						0.01Lb			0.1Lb
	0.01Oz					0.1Oz				1Oz
Sensor structure	Inner sensor
Accuracy	±1％(10%~100% of full scale)
Power	2 AAA batteries 1.5V
Working temperature	5℃～35℃
Transport temperature	-10℃～60℃
Relative humidity	15％～80％RH
