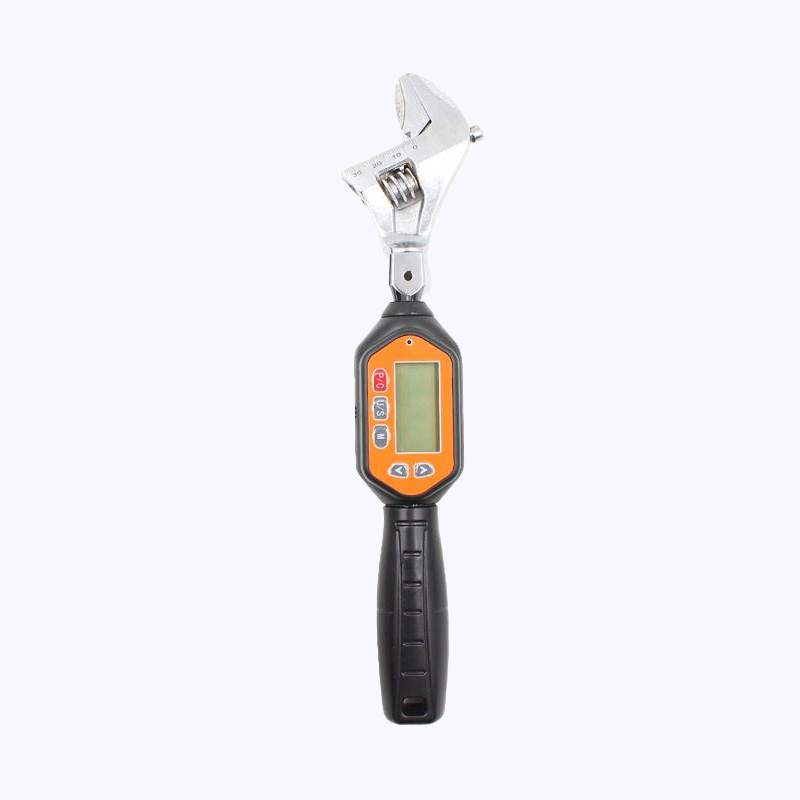

Mini Digital 10-100N.m Interchangeable Torque Wrench

The MINI-Digital Display Torque and MINI-Replaceable Head Digital Display Torque Wrench feature a mini-style viewing screen, boasting a small and exquisite size that makes them ideal for use in tight spaces. These wrenches come with a plethora of functions, including setting torque, selecting units (N.m, kgf.cm, ft.lbf, in.lbf), saving data, deleting data, exporting data, and calibration functions, among others. Their user-friendly control, facilitated by the digital display, significantly reduces the difficulty of operation and the skill requirements for users. These versatile tools are suitable for a variety of industries, including the automobile and machinery sectors, and offer ease of use for fastening and controlling bolts, making them indispensable for efficient and precise work.

Product Detail

Features

Large Screen Display, Backlight Function;
Precision: Clockwise ±2%, Counterclockwise ±2.5% (The total range of 20% ~ 100%);
Buzzer and LED Light will be started when predetermined torque value is reached (Only in Peak Mode);
Four types of engineering units (N.m, kgf.cm, ft.lbf, in.lbf);
Three Measuring Modes: Real-Time Mode, Peak Mode, Preset Mode;
Switch itself off after 3 minutes automatically.
999 sets of record data can be saved;

Product specifications

Replaceable Head Model		NMB-C10	NMB-C30	NMB-C60	NMB-C100
Maximum operating range	N.m	10	30	60	100
	ft.lbf	7.38	22.14	44.28	73.8
	in.lbf	88.5	265.5	531	885
	kgf.cm	102	306	612	1020
Inter changeable head connection size		9*12

Buzzer Setting range （N.m）		0.3~10	0.9~30	1.8~60	3~100
Ordinary Model Length(mm)		235		245	290
Replaceable Head Model Length (mm)		205			240
Accuracy*1		Clockwise: ±2% Counterclockwise: ±2.5%
Data storage capacity		999
Operation mode		Peak mode (P) Real-time mode (T) Preset value mode (Pre)
Unit		N.m、kgf.cm、ft.lbf、in.lbf
Ratchet head form		Two-way ratchet head
Number of ratchet teeth		72 Teeth
Number of buttons		5
Battery		2 7# batteries
Operating temperature		-10°C~60°C
Storage temperature		-20°C~70"C
Drop test height		1m
Vibration test conditions		10G
Life test*2		10000 times

Notice:

*1. The accuracy guarantee range is 20% to 100% of the maximum operating value. The torque accuracy is the normal value. The calibration accuracy takes the middle groove of the five grooves on the handle as the calibration point. To ensure accuracy, it is recommended to calibrate it once a year.

*2. "Once" means that the wrench is applied from 0 N.m to the maximum operating setting value of the wrench, and then back to 0 N.m.
