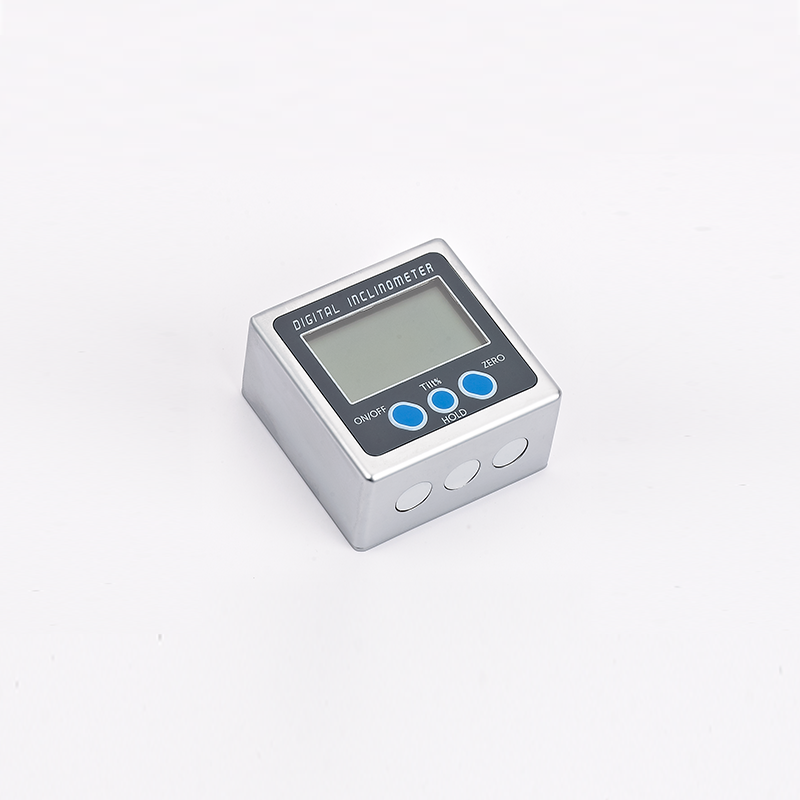

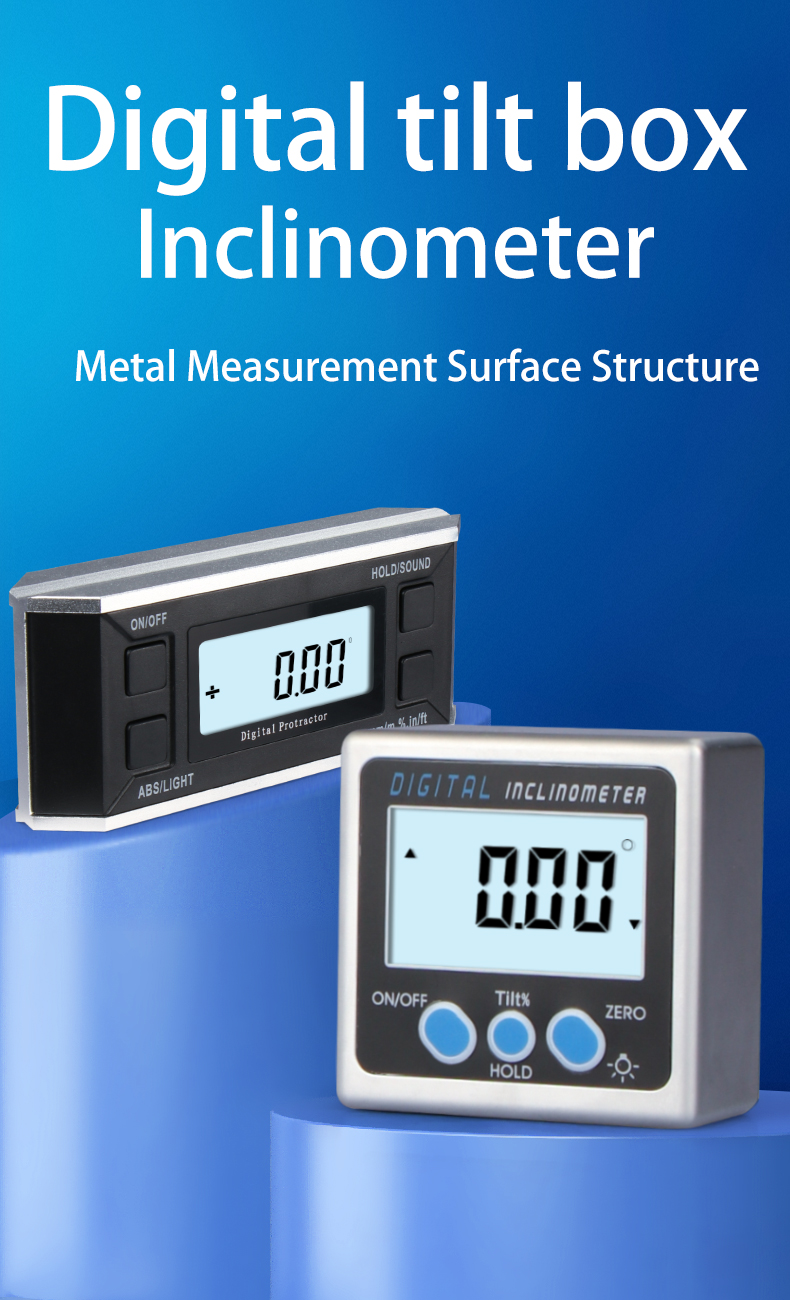

Magnetic Digital Protractor Inclinometer Bevel Box
product detail
Features
● Strong magnetic adsorption function, freeing hands and easy recording
● Digital display screen for easy reading

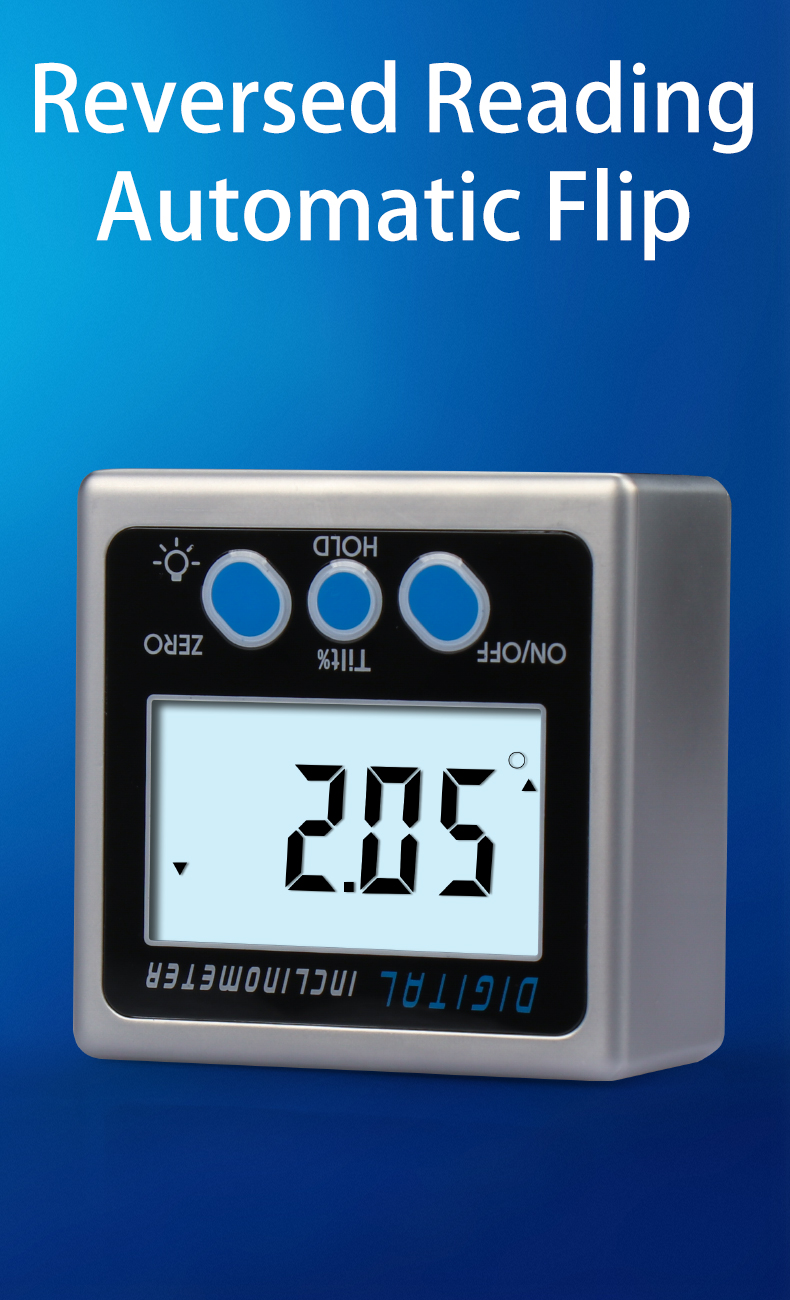

● When the product is inverted, the numbers will automatically flip

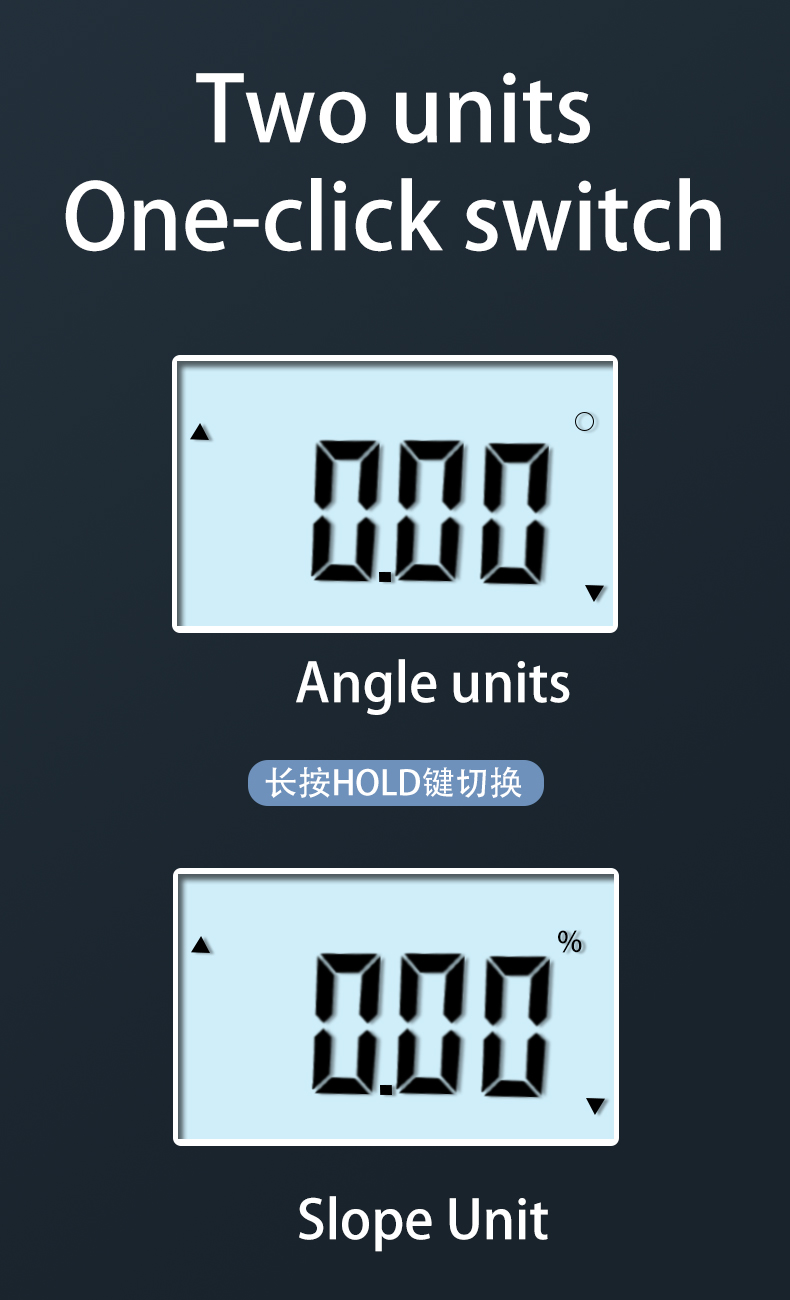

● One click switching of angle and slope
● Multi functional measuring tool, three in one protractor, level ruler, and inclinometer
● Precise stainless steel measuring structure, high wear resistance
● Power-off automatically in 5 minutes.
● Relative/absolute measurement interchange at any position.

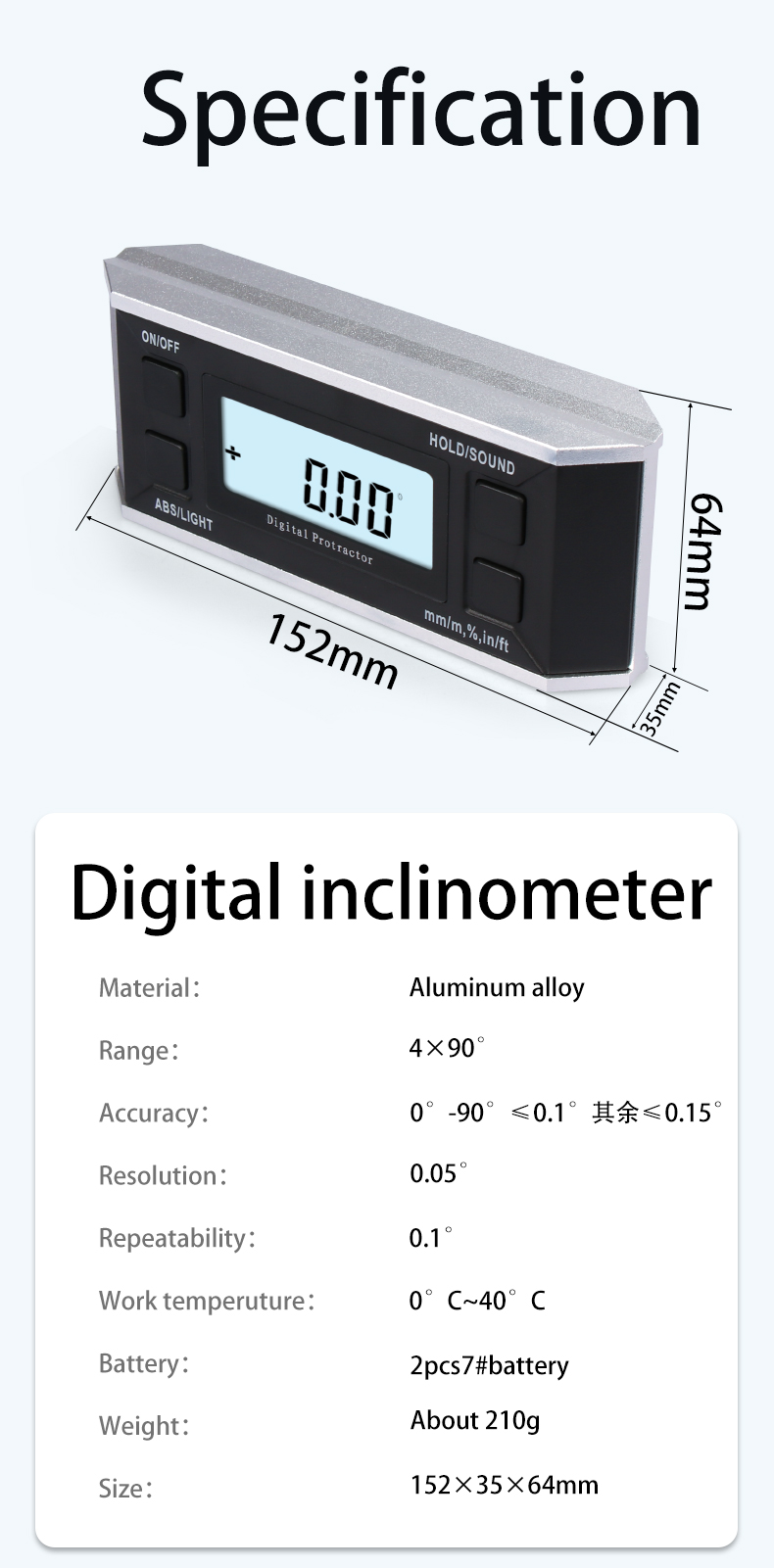

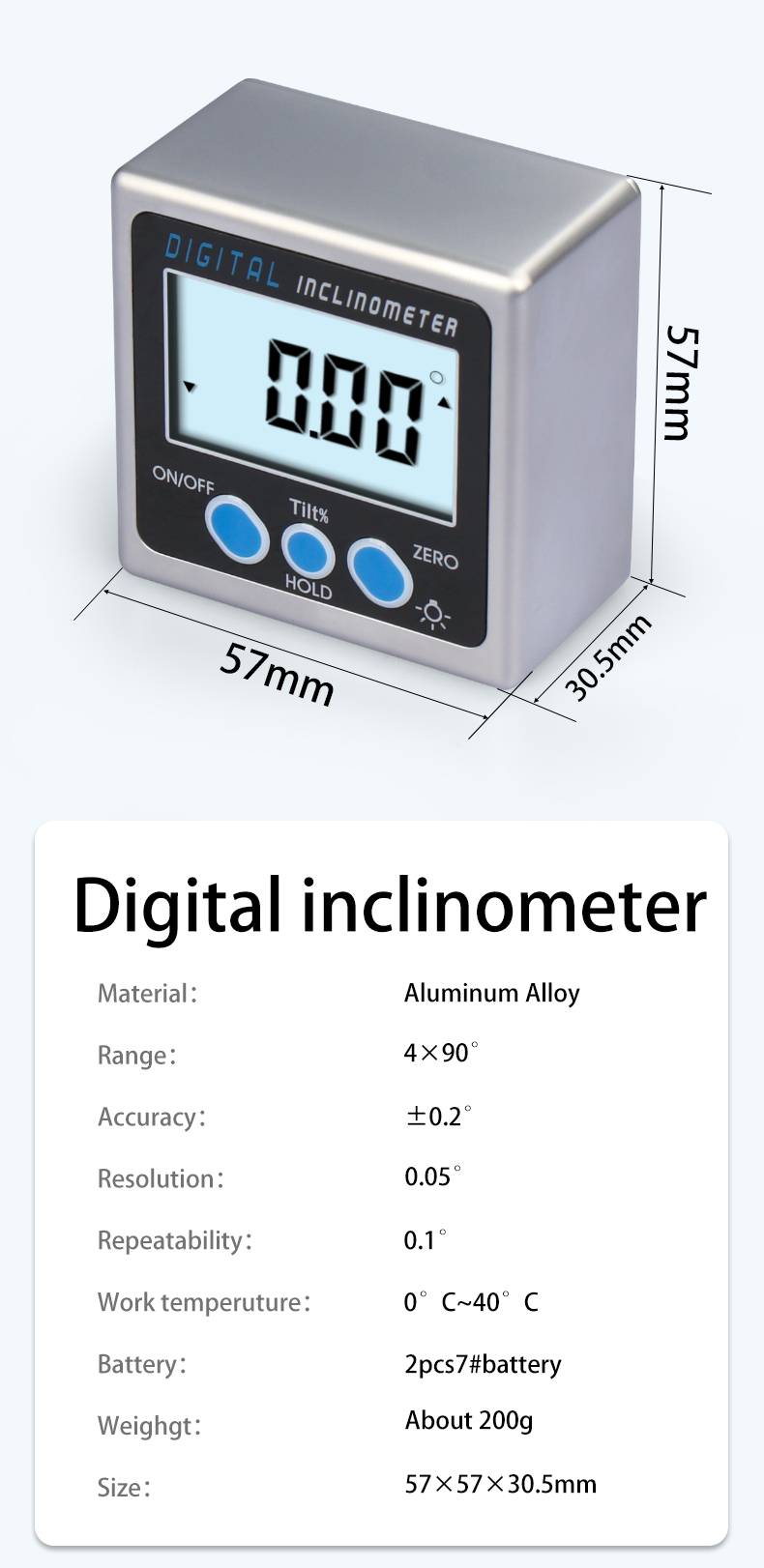

Product specification
|
Model |
NJJH-110 |
NJJH-130 |
NJJH-131 |
|||||||
|
Brand |
NEWJIELI |
|||||||||
|
Range |
4*90° 2*180 |
4*90° 2*180 |
Single axis:4*90° Dual axis：±40 |
|||||||
|
Accuracy |
±0.2° |
|||||||||
|
Resolution |
0.05° |
|||||||||
|
Material |
Mental |
|||||||||
|
Number of Axis |
1 |
2 |
||||||||
|

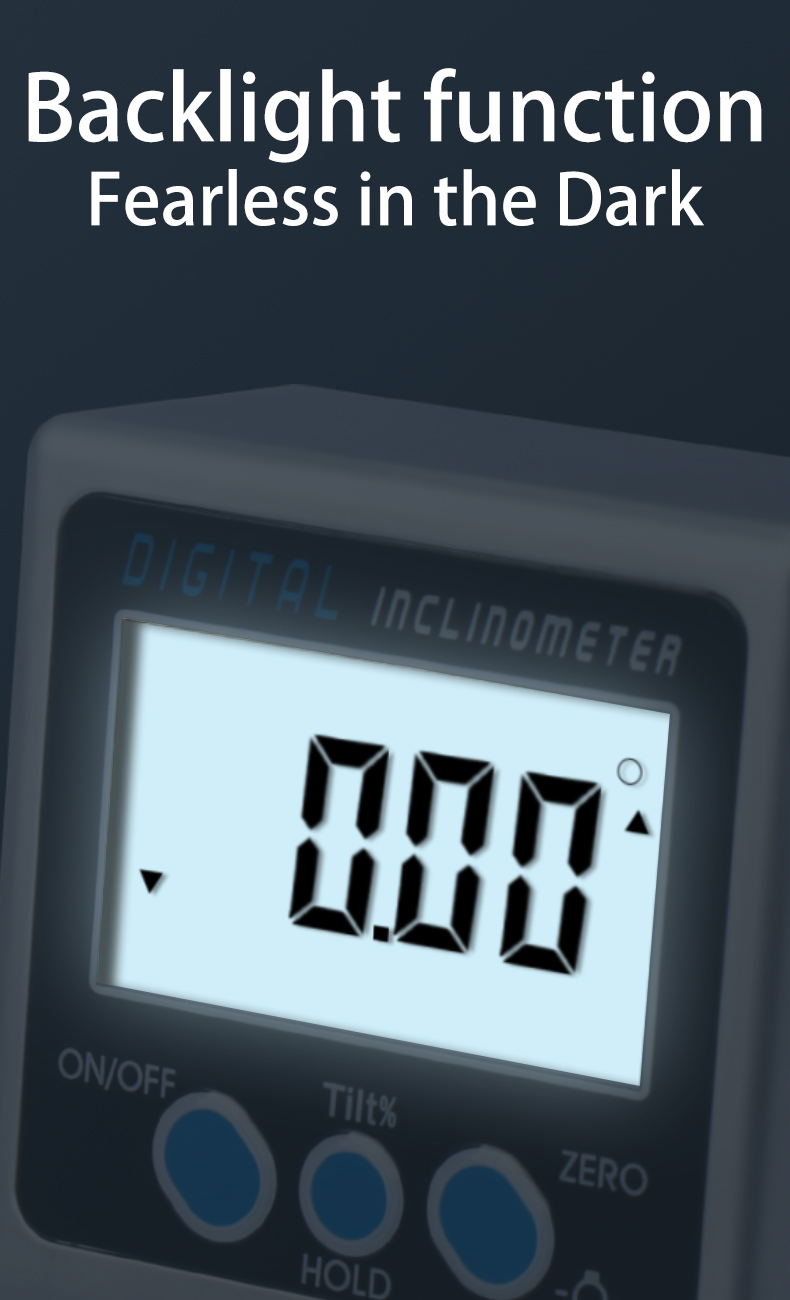

Backlight |
No |
No |
Yes |
|||||||
|
Repeatability |
0.1° |
|||||||||
|
Power supply |
7#batteries |
|||||||||
|
Working temperature |
0 ℃ ~40 ℃ |
|||||||||
|
Gross net |
0.1° |
|||||||||
|
Dimension(mm) |
57*31*57 |
59*31*61 |
||||||||
|
Magnet |
1 |
3 |
||||||||
Operating Instructions
● Press the "ON/OFF" button, it turns on, and the LCD displays absolute horizontal angle. Press "ON/OFF"button again, it turn off.
● Measurement initially displays 0.0 on the LCD at the beginning, when it displays"on the left side ""on the right side, it means the left side is higher and right side lower;
● when it displays"" on the left side ""on the right side, it means the left side is lower and right side higher.
● Put the instrument on the horizontal stand, and press the "ZERO" button, the value returns to zero, and the read-out is the angle value measured angle value relatively to the horizontal stand.
● Press the "HOLD" button, the value on the screen will be locked.
● The magnets at the bottom allow the instrument to be attached onto iron material measurement object. Press the "ZERO" button; reset the value to proceed relative measurement.

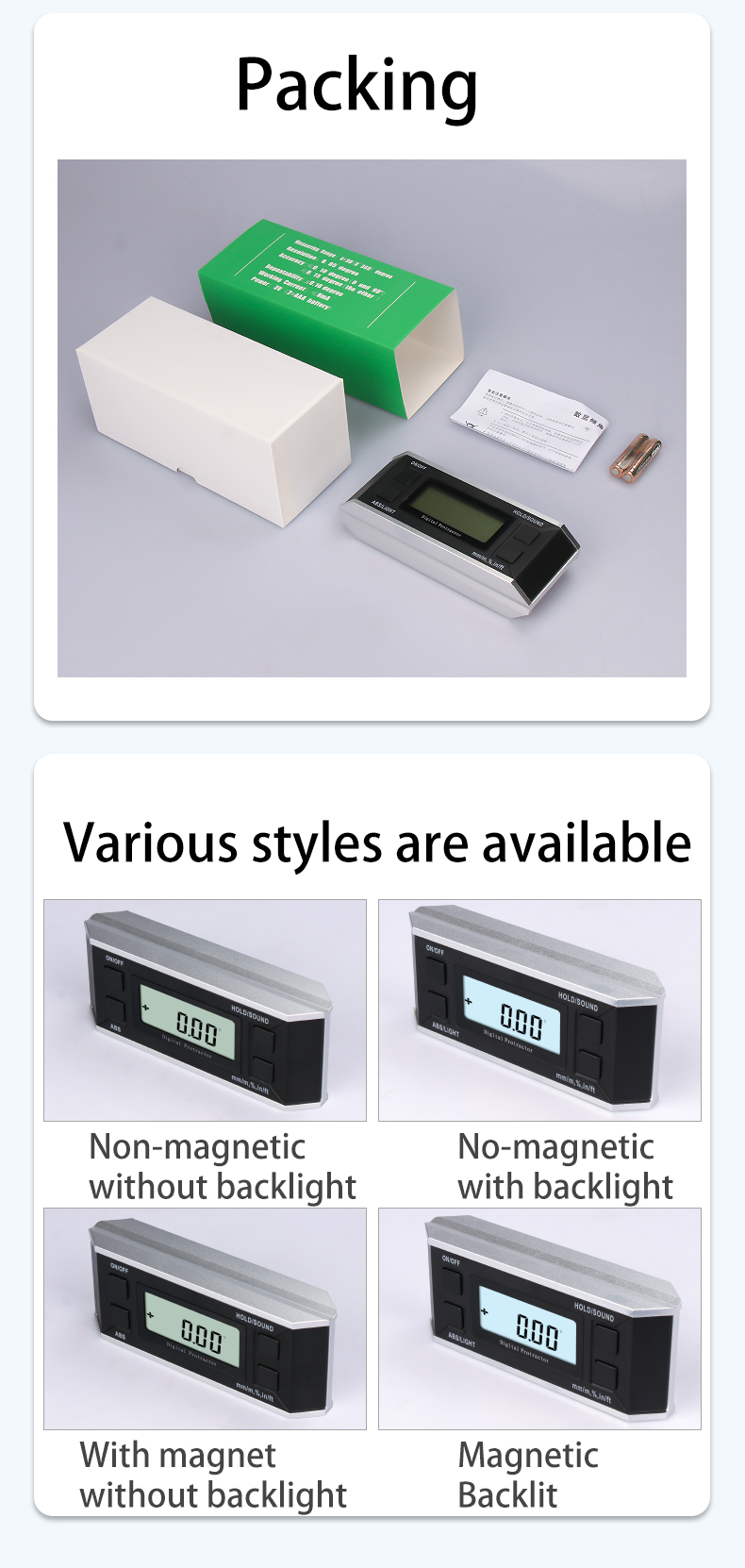

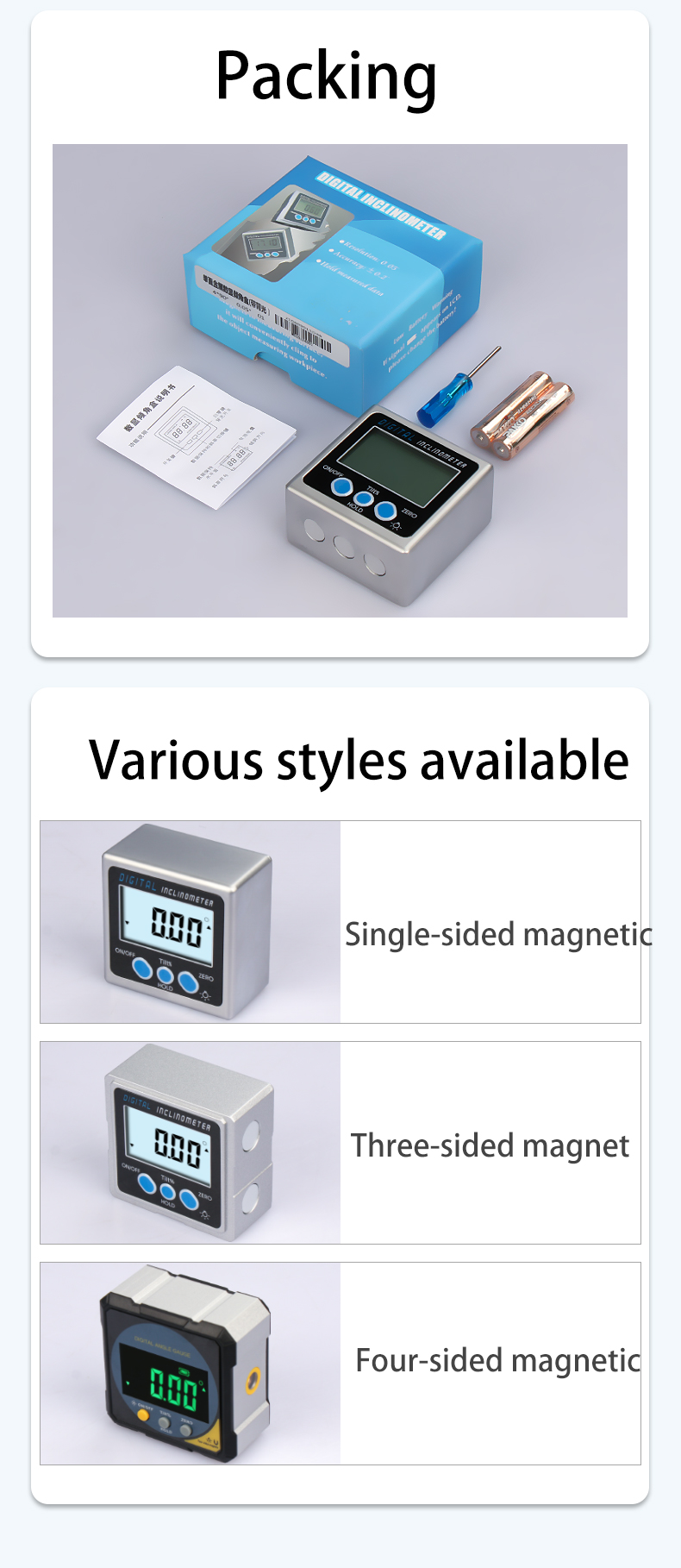

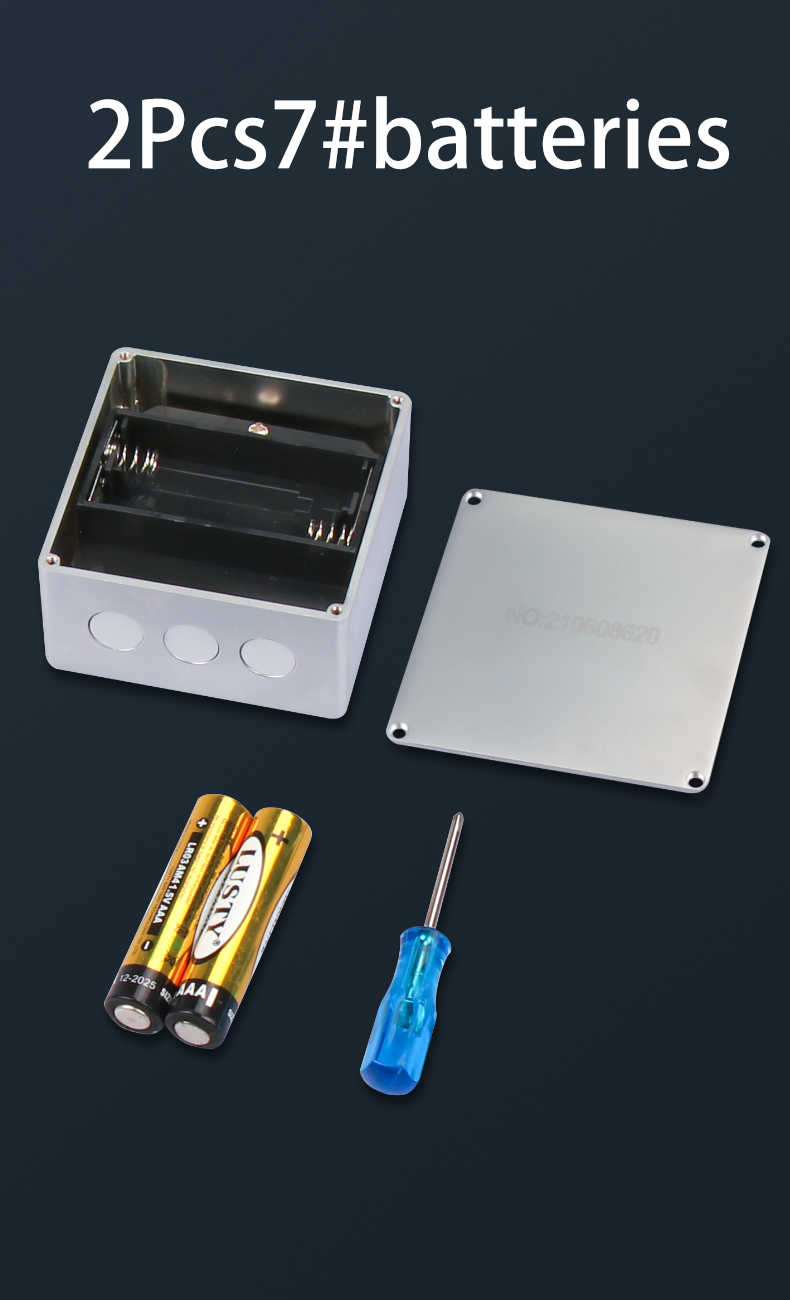

Package details
|
No. |
Name |
Qty |
|
1 |
screwdriver |
1PC |
|
2 |
Digital inclinometer |
1PC |
|
3 |
User manual |
1PC |
|
4 |
Battery |
2pcs AAA battery |
Picture Details
