Linear Micrometer-New Type Micrometer

New Type Micrometer are two models: wiring type and serial port type. It is a high-performance linear micrometer designed for precise measurement and efficient data management. It is equipped with a six-digit digital tube display, which can clearly display micron-level displacement data and is suitable for precise measurement of various precision machinery and automation equipment. The micrometer supports preset upper and lower tolerance values, and can display in real time whether the measurement results meet the tolerance standards, providing users with accurate and reliable results，it is worth a try.

Product Detail

Features

● The six-digit digital tube can display the micrometer displacement data

● Preset upper and lower tolerance data

● Three LEDs indicate the results of the tolerance comparison

● The results of the tolerance comparison can be output to drive external indicators and relays

● External zeroing function

● External control data locking function

● External control tolerance result output function

Product specification

Product name	Display box characteristic parameters
Operating voltage	9-24V
Operating current	Less than 200mA
Number of data bits	Six digits
Connected micrometer	Wire-type micrometer

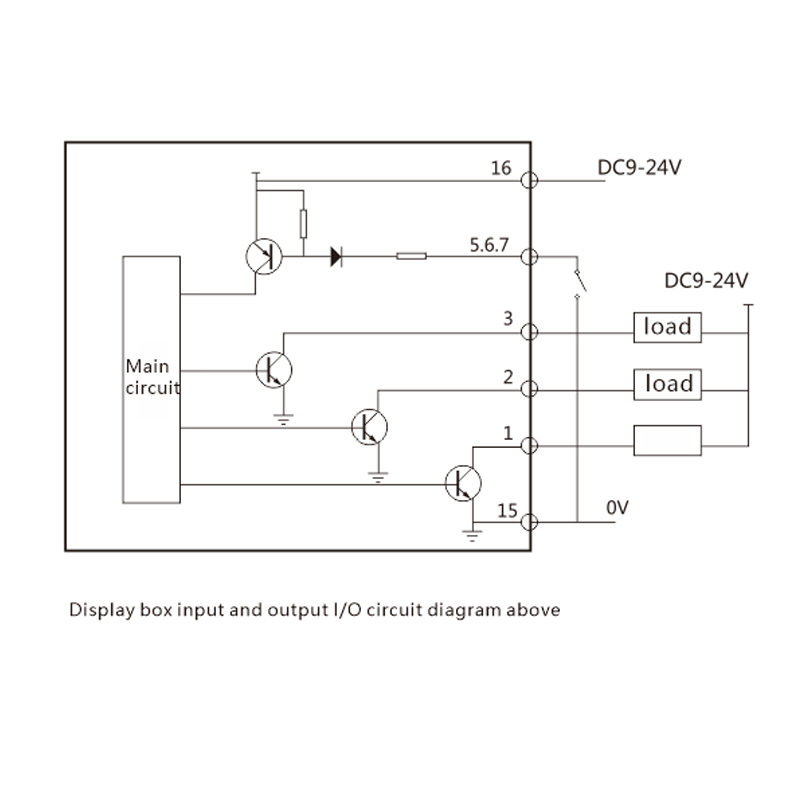

Control output	Three state outputs of tolerance comparison results (exceeding upper tolerance, passing, exceeding lower tolerance)
Output drive capability	20mA
Control input	External reset, external lock
Control input	External reset
Size (mm)	95x47X111

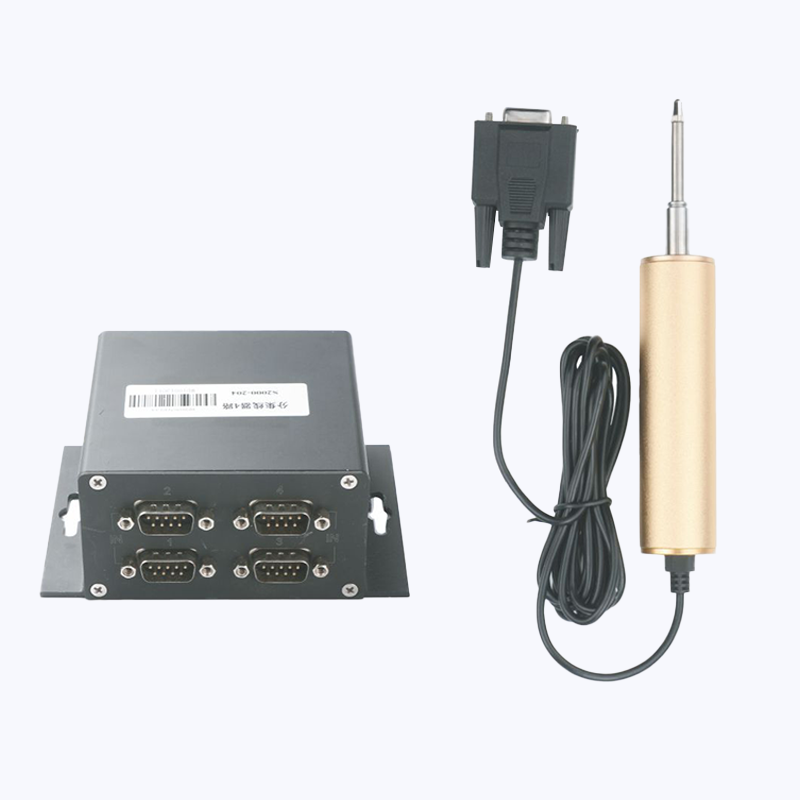

Product name	Linear percentage micrometer
Detection system	Capacitive measuring system, glass material sensor
Measurement range	0-12.7mm	0-25.4mm
Resolution	0.01mm	0.01mm
Repeat positioning accuracy	0.01mm	0.01mm
Full-range accuracy	0.03mm	0.03mm
Working voltage	5V
Working current	<18mA
Data update speed	10ms(100 frequency/S)
Wire output method	DB9 needle/lead type
Lead length	2m

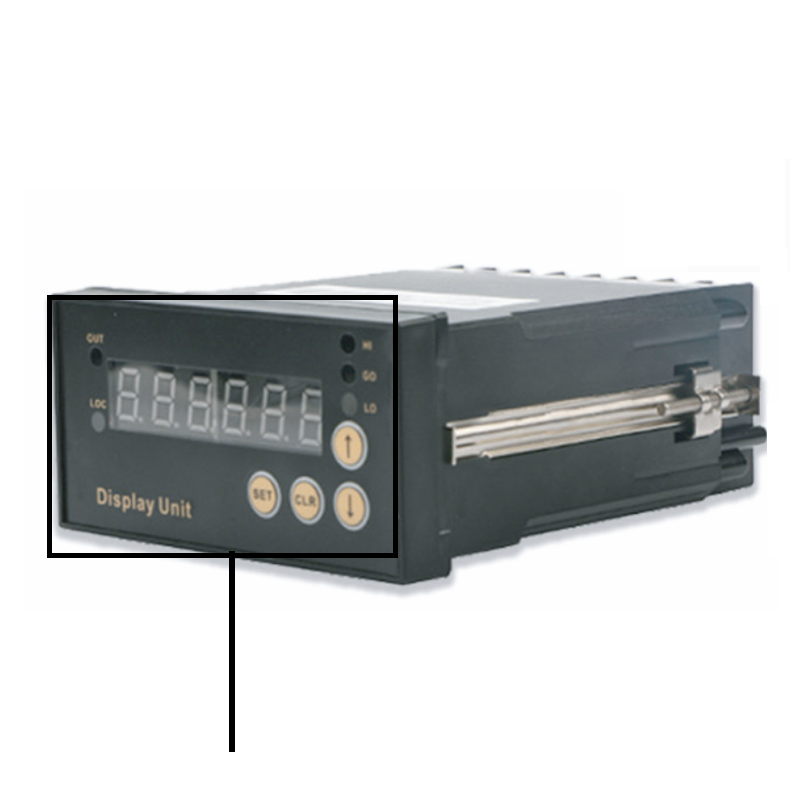

Product Structure

NEW TYPE MICROMETER.png

Four buttons
●【SET】Set button ●【CLR】Reset button ●【↓】Decrease button [↑] Increase button
LED indicator
●【HI】Exceeds upper tolerance, unqualified
●【GO】Product qualified, within tolerance band
●【LO】Exceeds lower tolerance, unqualified
●【LOC】Data lock status
●【OUT】Tolerance result output status
