Laser Smart Angle Meter Infrared Laser Angle Measuring Instrument
product detail
Features

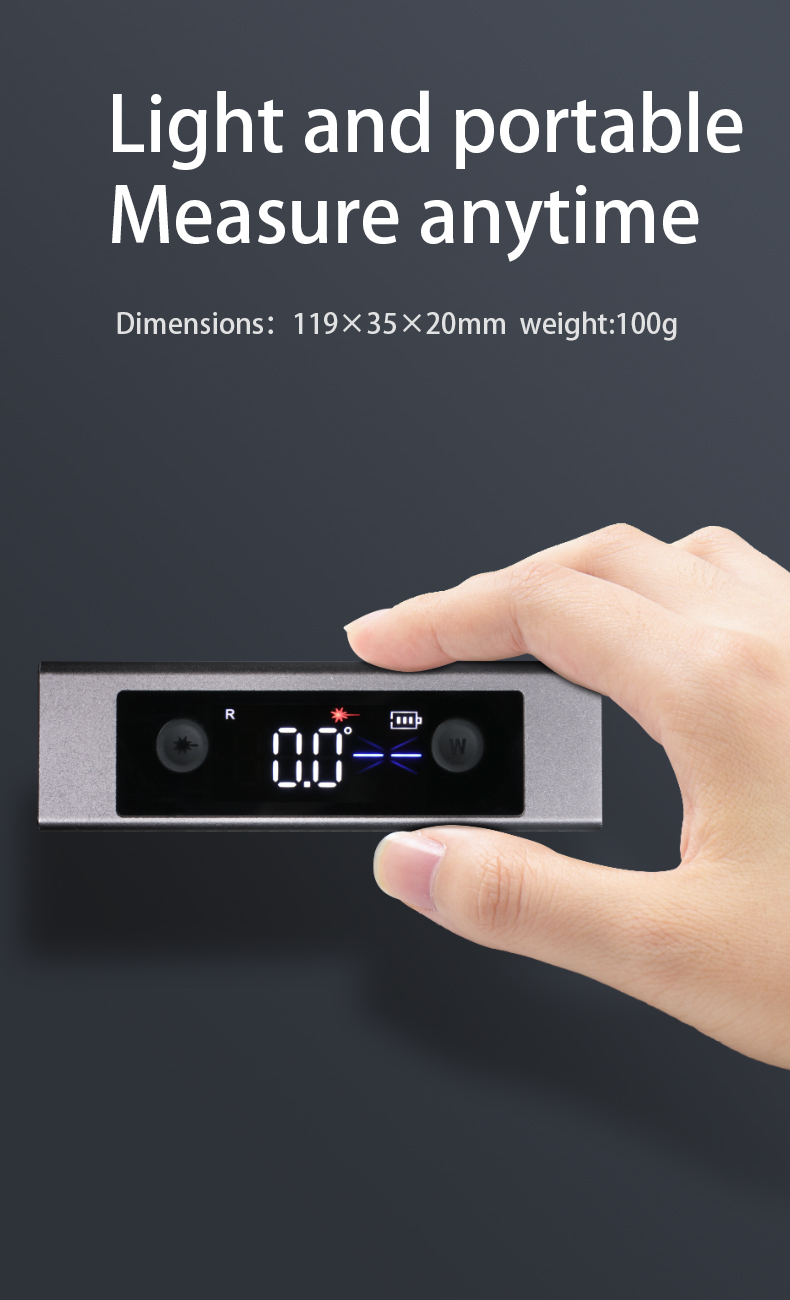

● The Laser Smart Angle Meter is lightweight and portable, allowing for convenient measurement anytime and anywhere.

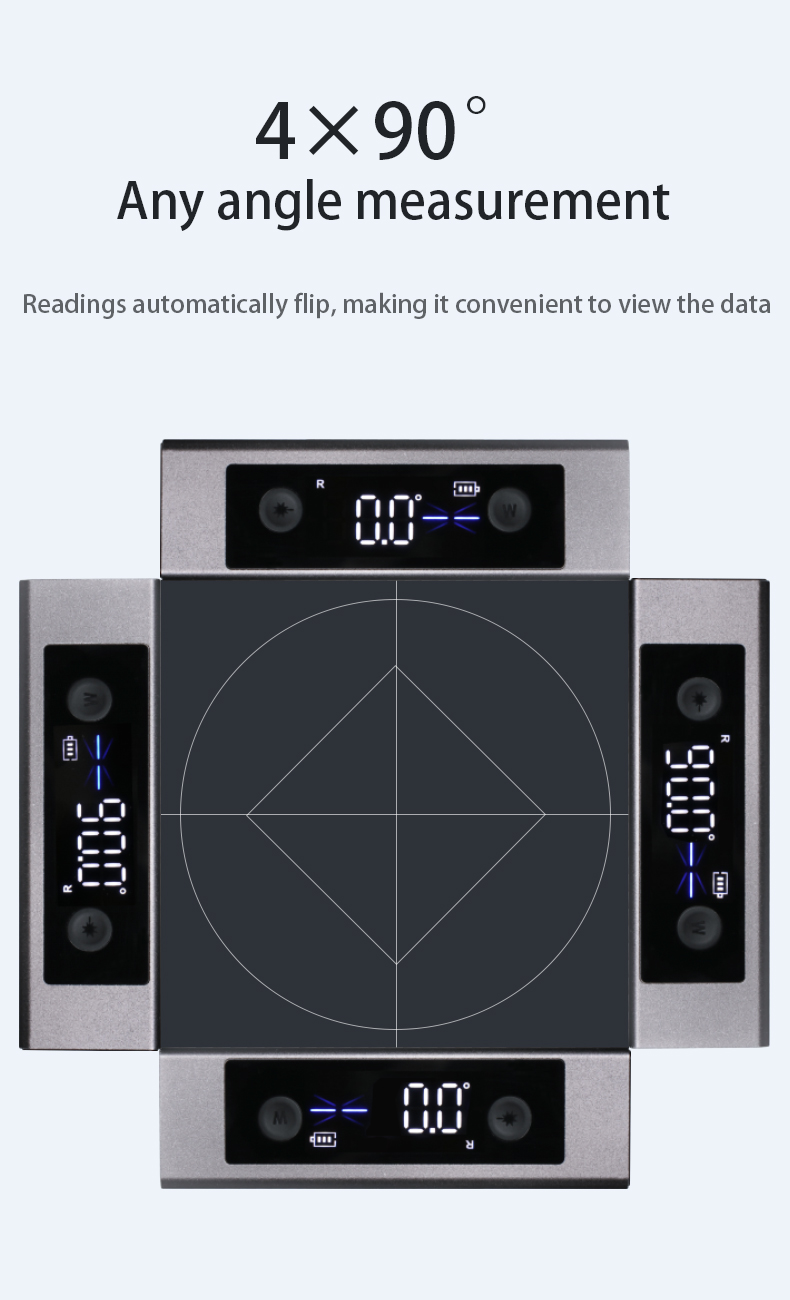

● It offers the capability to measure any angle at 4×90°, with readings that automatically invert for user-friendly operation.

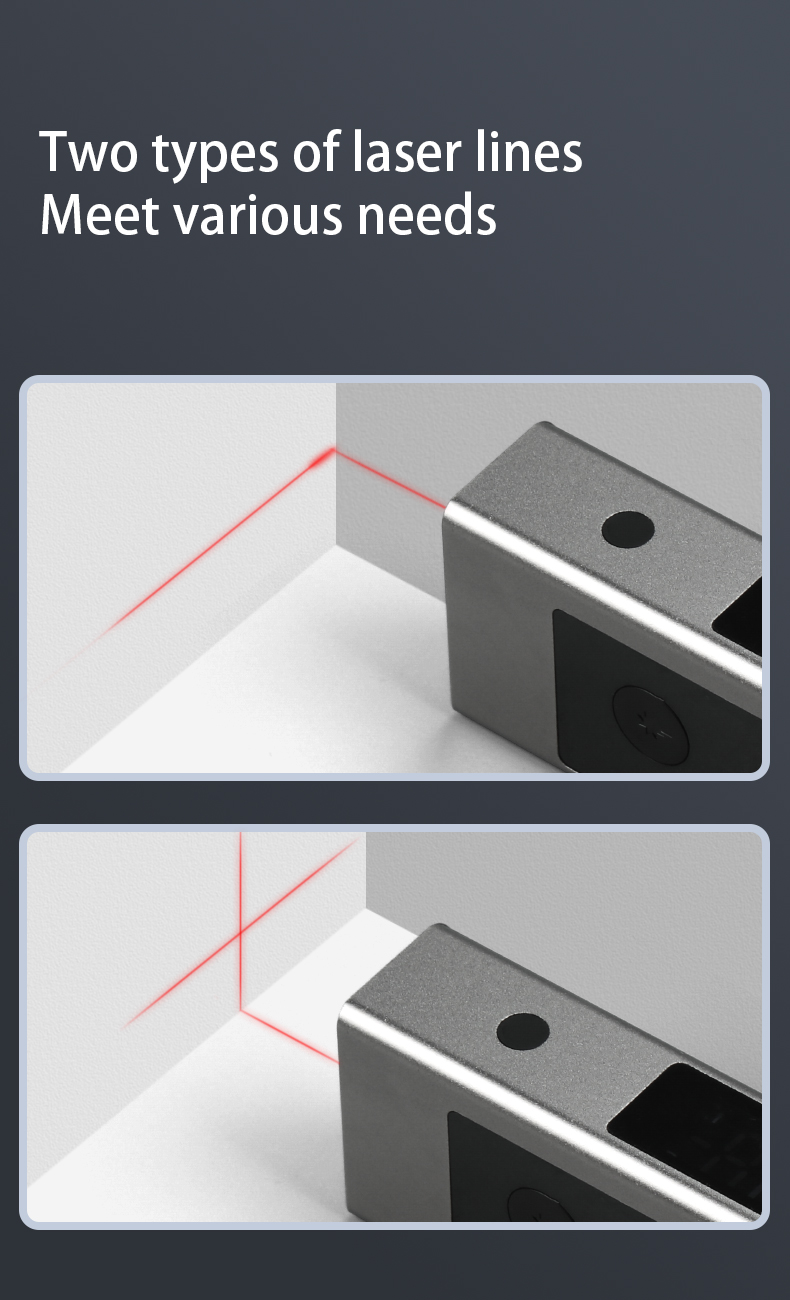

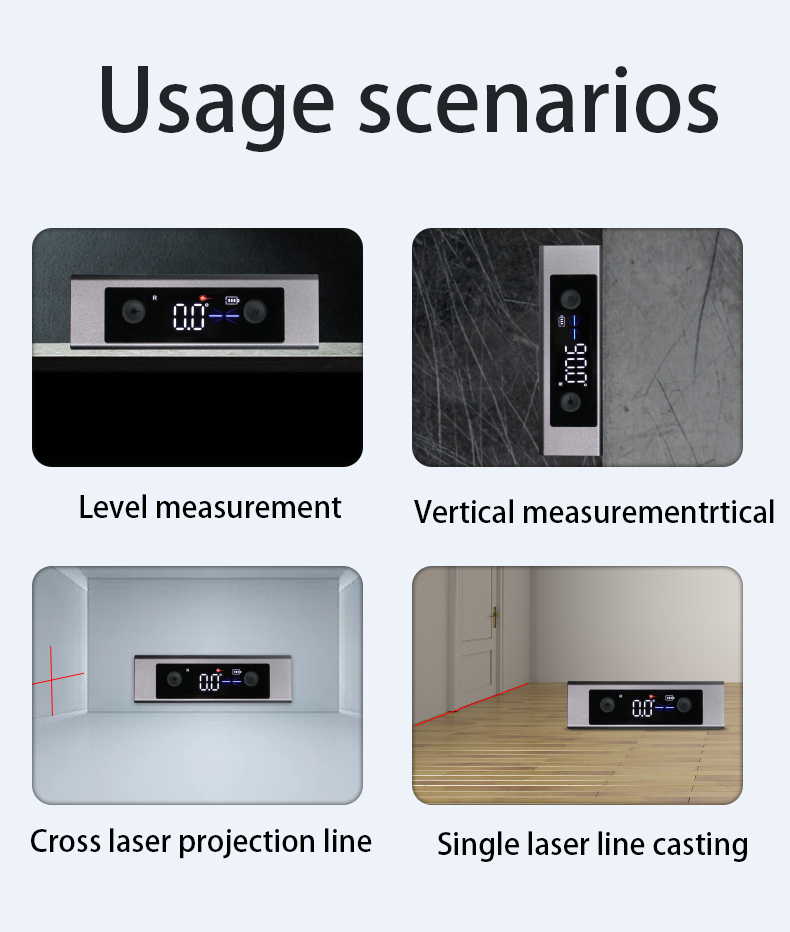

● Featuring both line and cross laser projections, this instrument meets a variety of measurement needs.

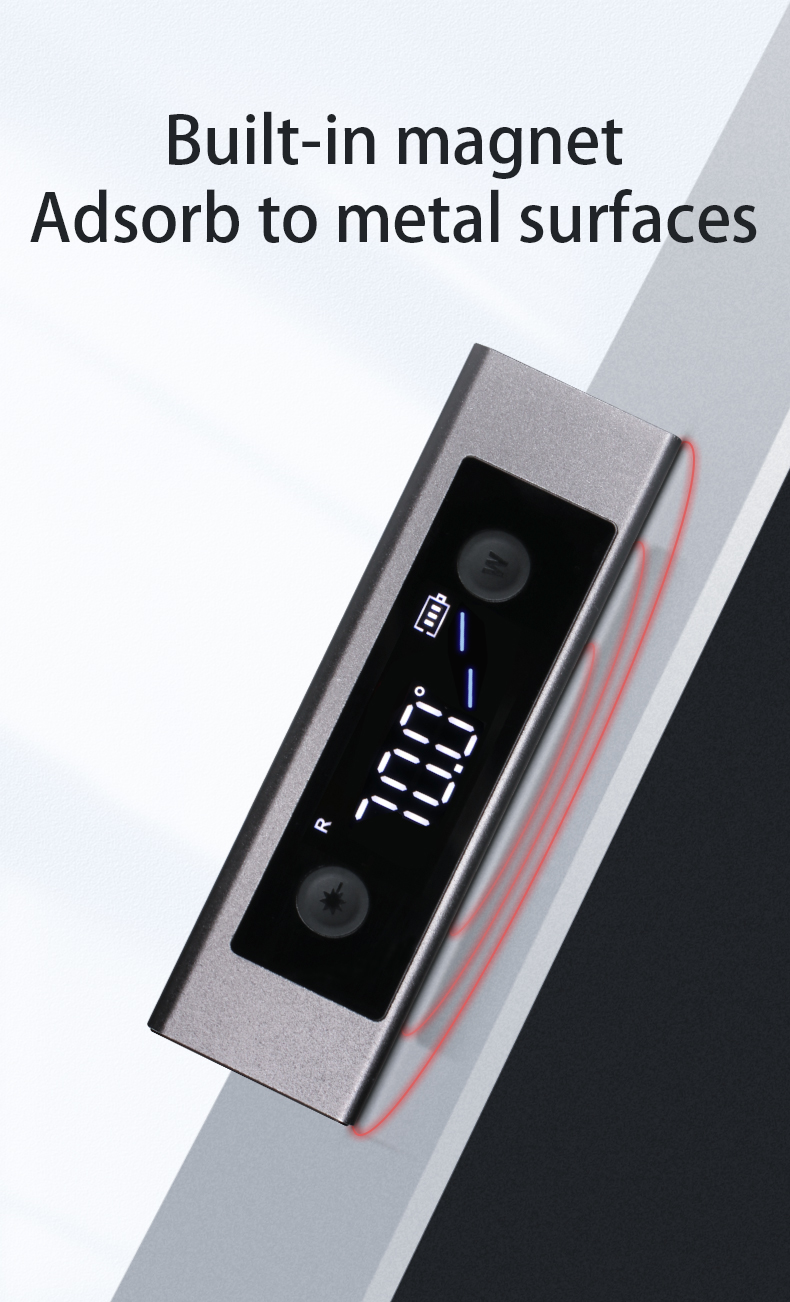

● The built-in magnets enable secure attachment to metal surfaces and workpieces, enhancing stability during use.

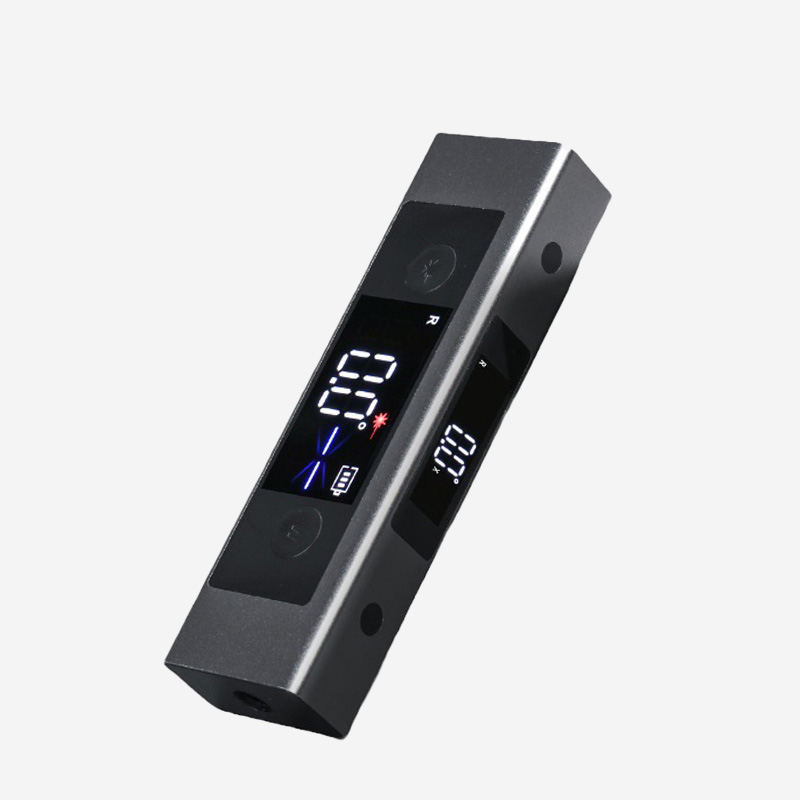

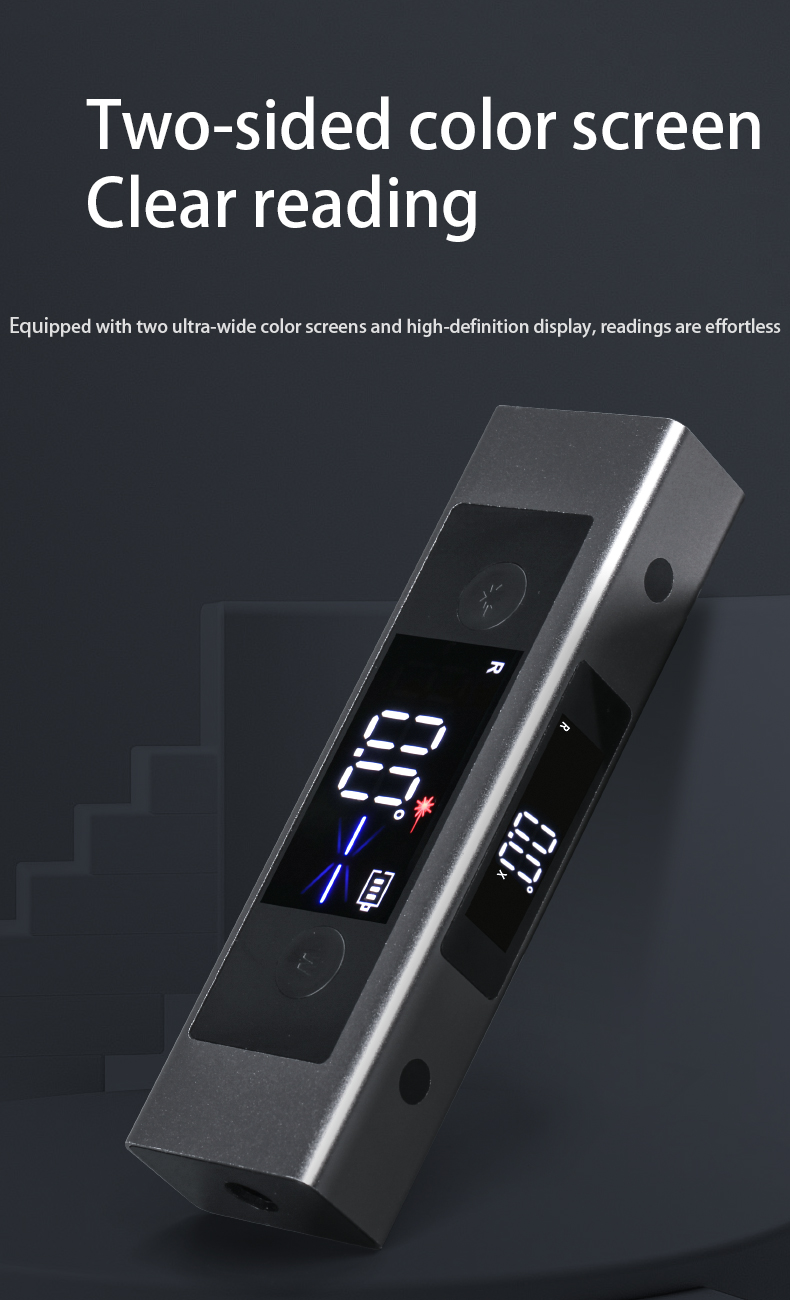

● Equipped with dual ultra-wide color screens, the device provides high-definition displays that make reading measurements effortless.

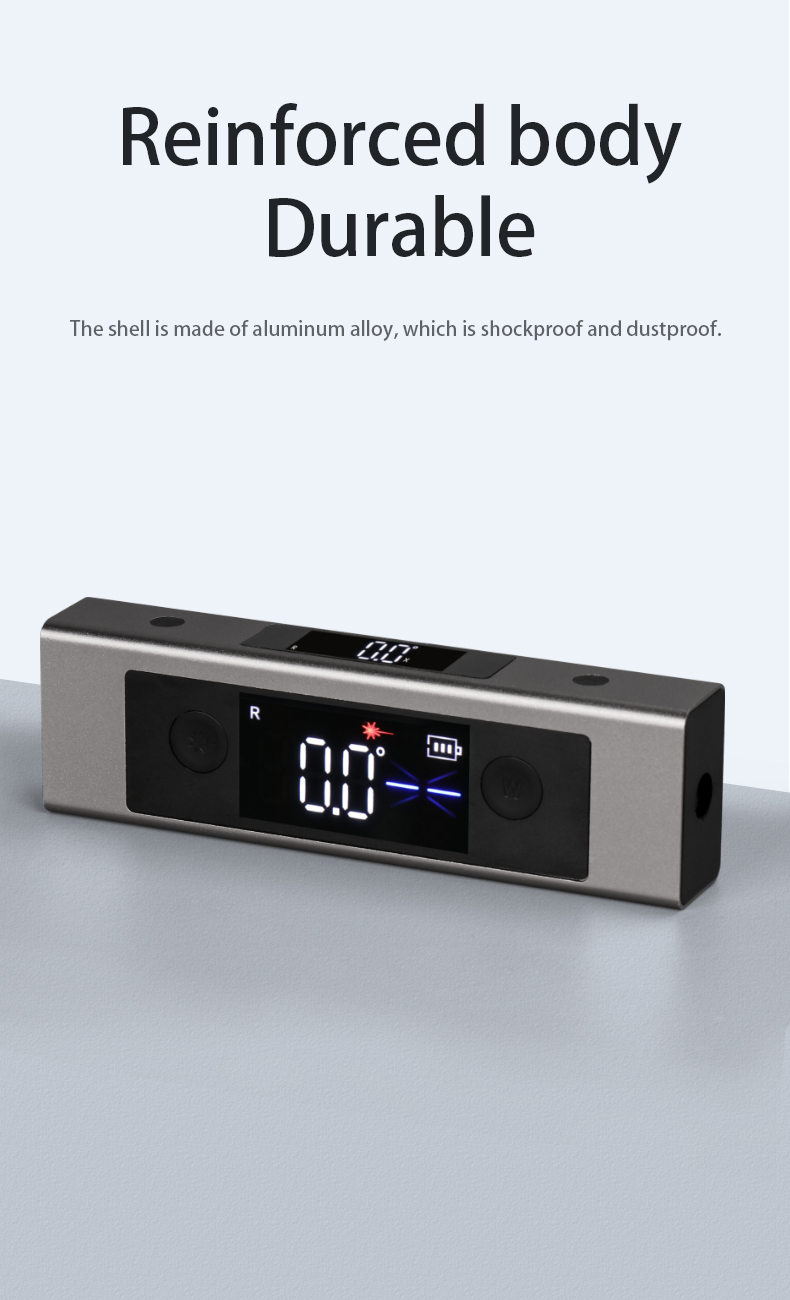

● Its aluminum alloy housing ensures durability, making it suitable for demanding environments.

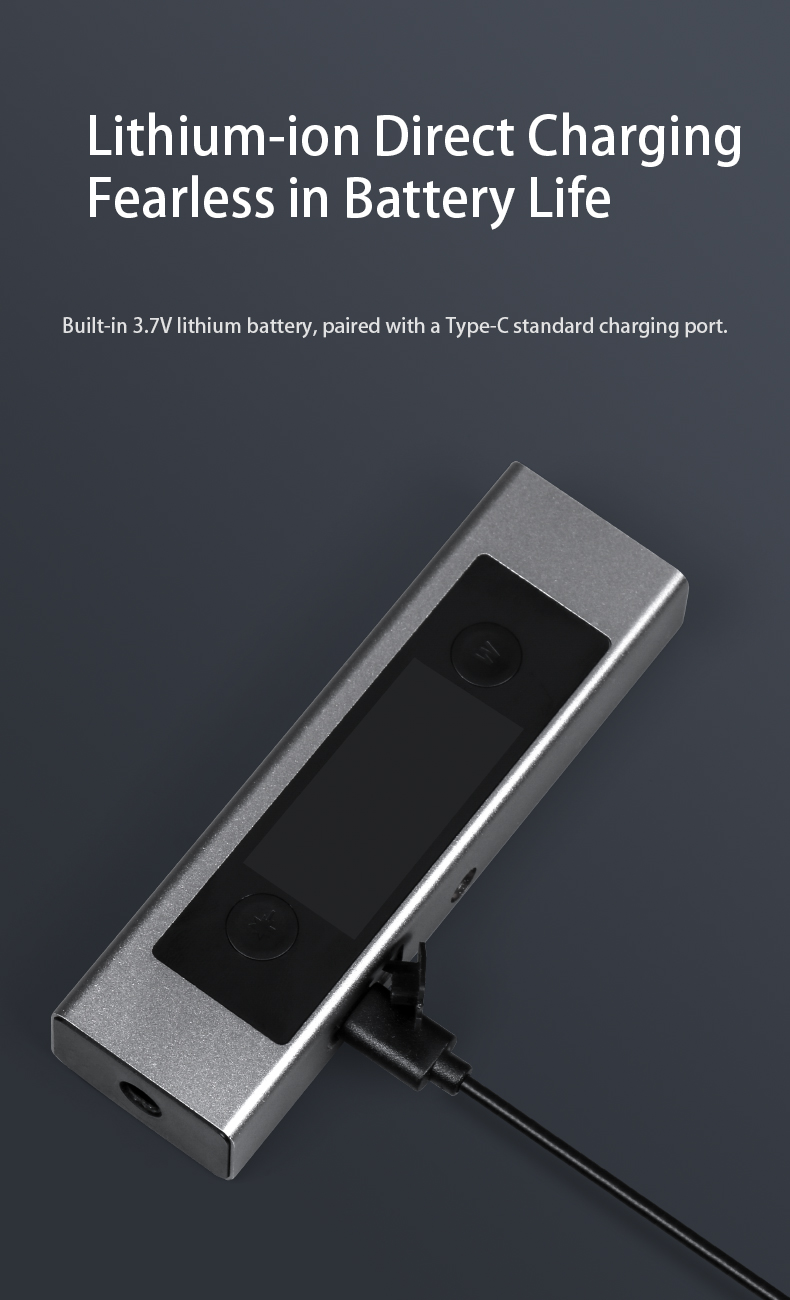

● The rechargeable lithium battery, paired with a Type-C charging port, guarantees long-lasting performance.

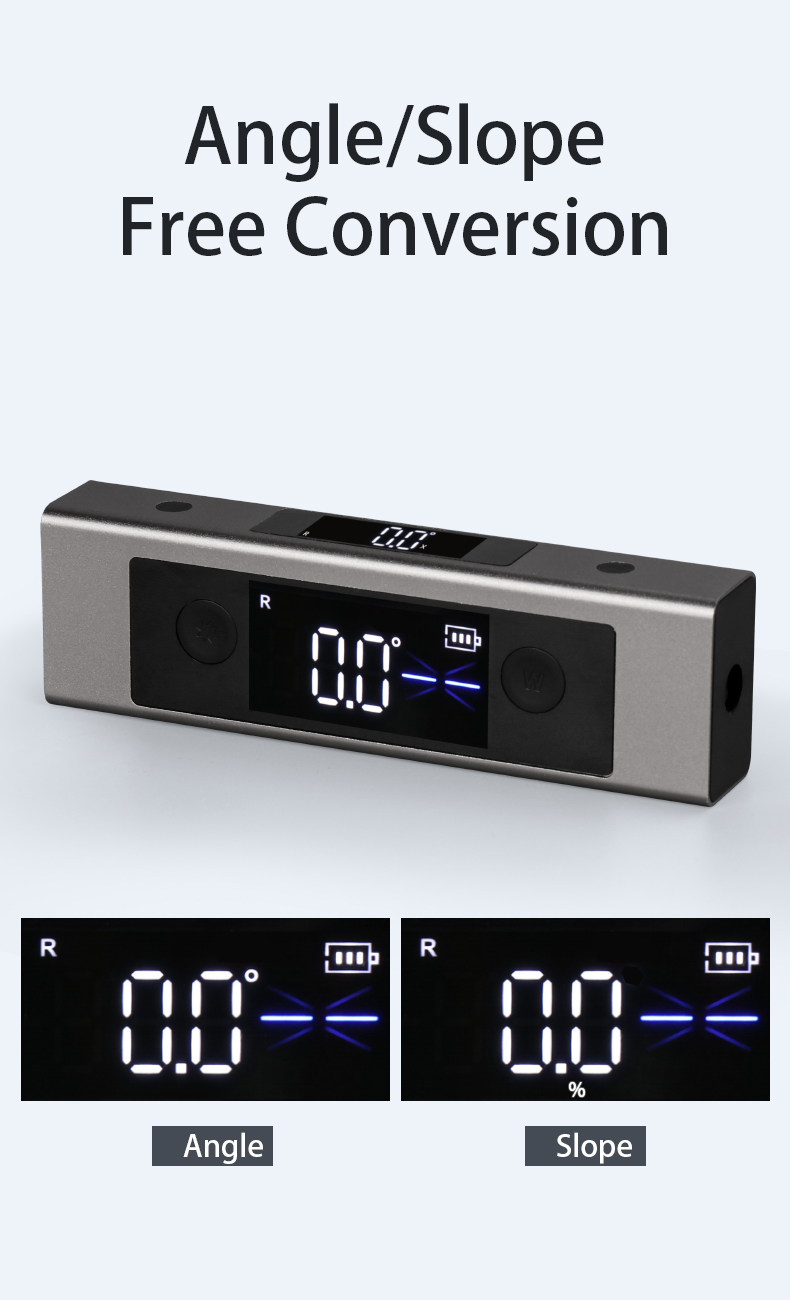

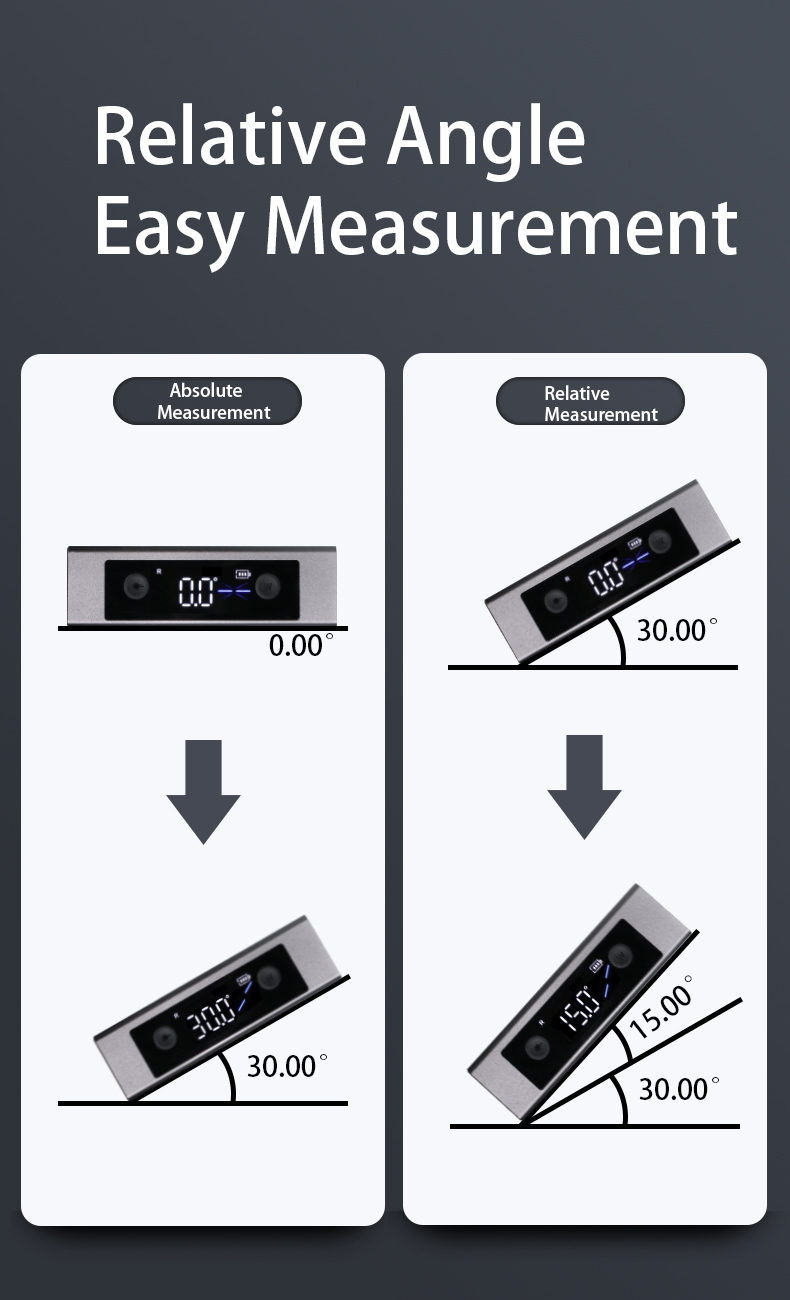

● The angle meter allows for easy conversion between slope angles and relative angles, facilitating straightforward measurements.

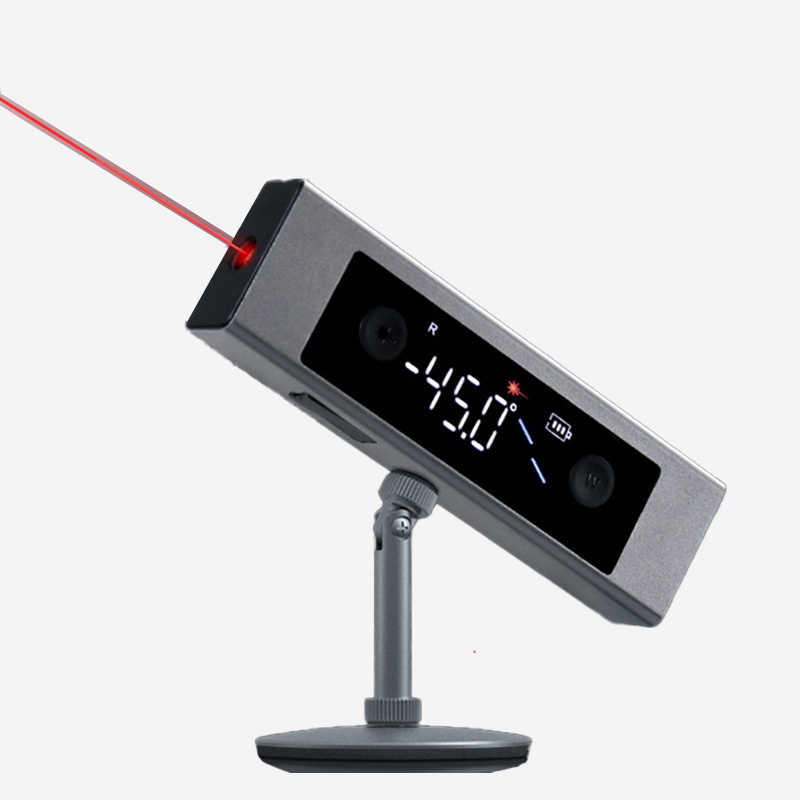

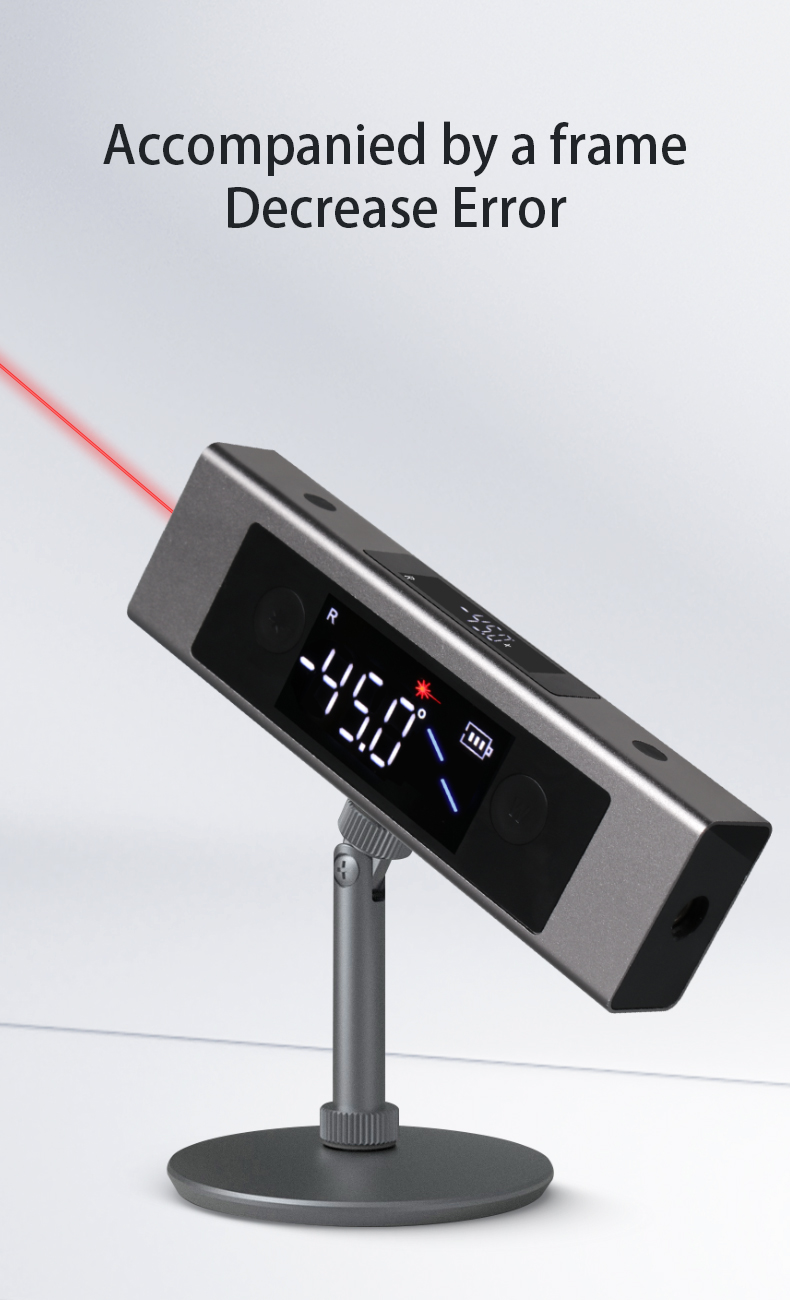

● When used with the included stand, it significantly reduces measurement errors, ensuring precision in every application.

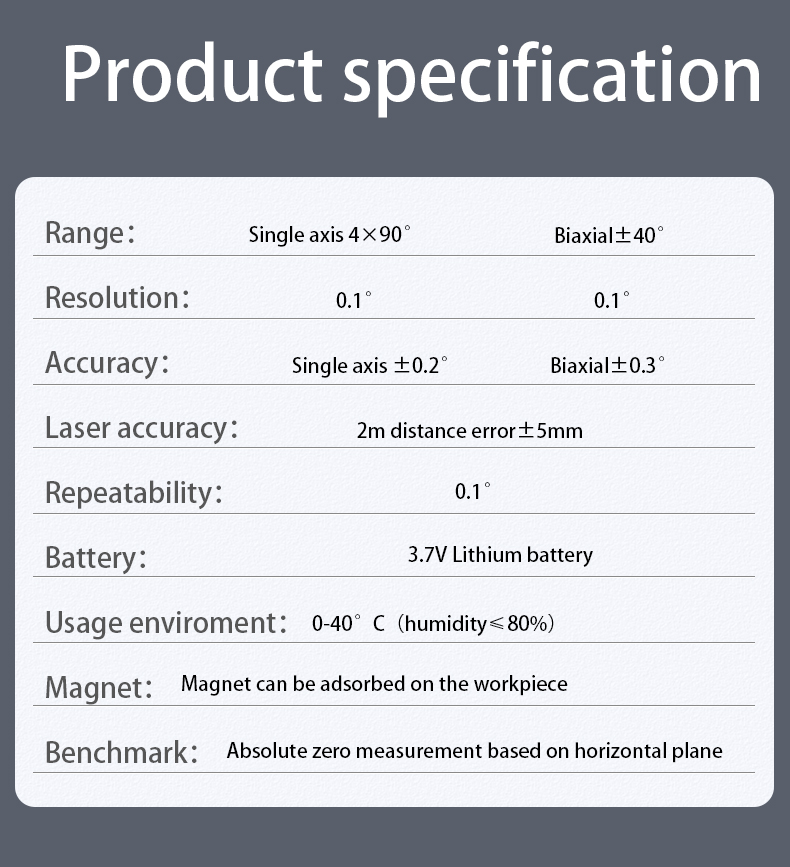

Product Specification
| Model | NZJY-1 | NZJY-2 |
| Brand | NEWJIELI | |
| Laser count | cross laser | cross laser＋line lase |
| Number of axis | two axis | |
| Range | single-axis 4×90° | |
| dual-axis ±40° | ||
| Repeatability | 0.1° | |
| Resolution | 0.1° | |
| Accuracy | single-axis ±0.2° | |
| dual-axis ±0.3° | ||
| laser accuracy | ±5mm（2meter） | |
| Dimension | 118.4*35*20mm | |
| Material | Aluminum alloy | |

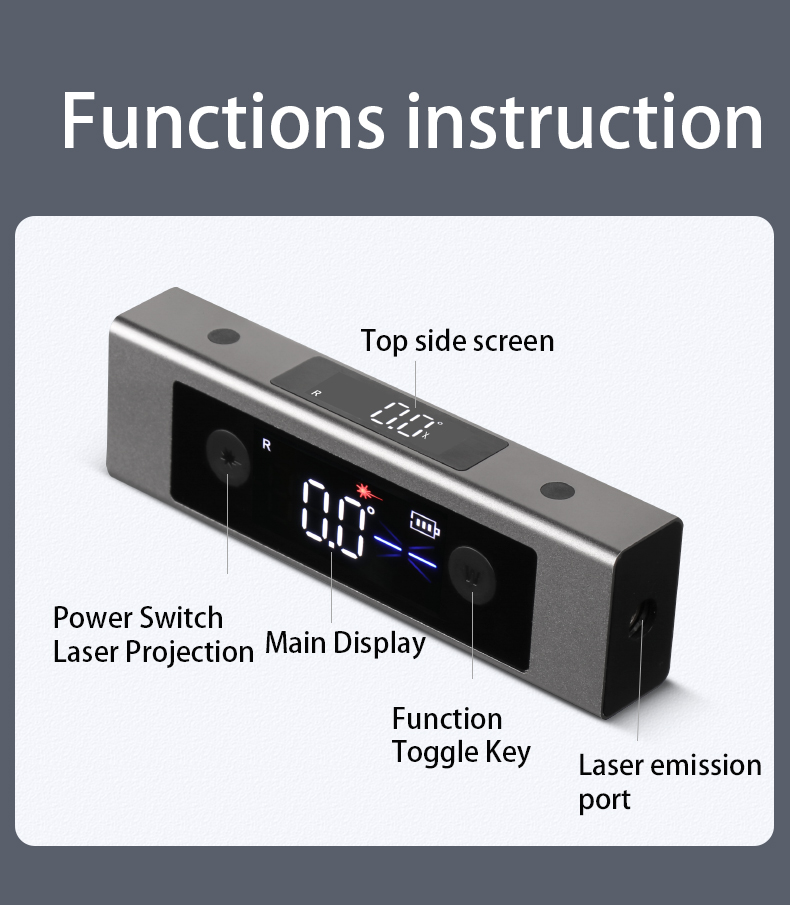

Product Structure
Picture Details
