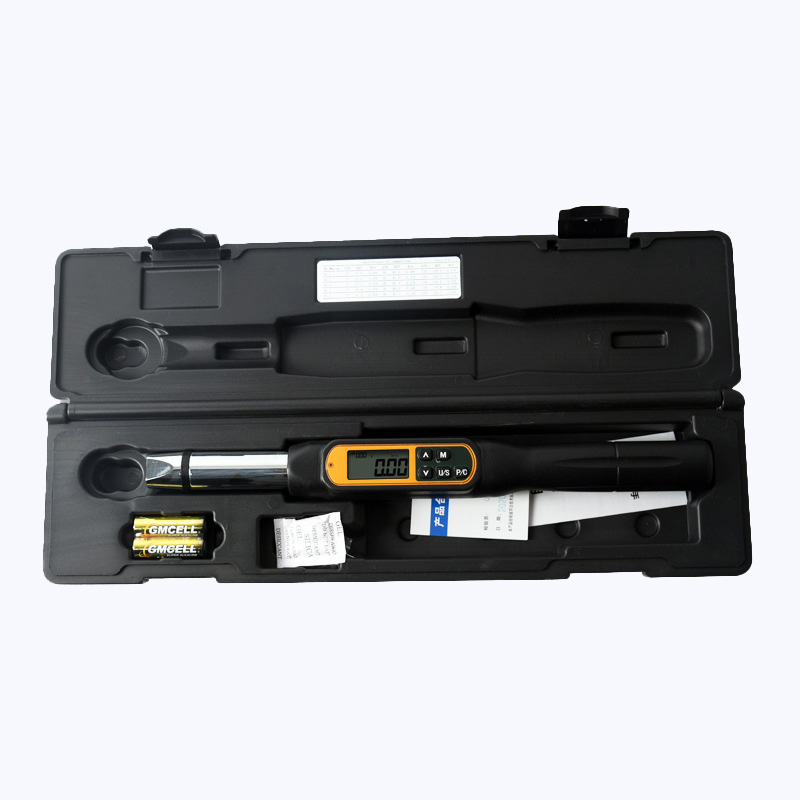

Interchangeable Head Large-screen Digital Display Torque Wrench

The replaceable head digital display torque wrench are different from the general torque wrench, in which the ratchet wheel of the replaceable head wrench can be freely replaced with plug-ins such as opening mouth, plum blossom head and movable opening head. Both have powerful operation functions, including torque setting, unit setting, numerical storage, numerical clearance, as well as numerical output and user correction function. It is characterized by high precision, accurate measurement, stable performance, low power consumption and simple operation. The requirements for operators are reduced by installing digital display screens. It is applicable to bolt fastening and control in automobile industry, machinery industry, etc.

Product Detail

Product Features

● Backlit Display: Large screen for clear reading of measurement data.
● High Accuracy: Clockwise ±2% and counterclockwise ±2.5% accuracy within 20% to 100% of full scale.
● Bi-directional Operation: Capable of both clockwise and counterclockwise operation.
● Alarm Indication: Buzzer and LED alert when predetermined torque value is reached (peak limit and preset modes).
● Multiple Units: Four engineering units available (N.m, kgf.cm, ft.lbf, in.lbf).
● Versatile Measurement Modes: Real-time, peak, and preset modes for different measurement needs.
● Data Storage: Function to store and record numerical values for future reference.
● Automatic Shutdown: Powers off automatically after 5 minutes of inactivity to conserve battery.
● Overload Protection: Displays "oLoRd" and prevents further force when overloaded at 120% of full scale.

Product Specifications

Model	General	NWJB-10	NWJB-30A	NWJB-30B	NWJB-60	NWJB-85	NWJB-135A	NWJB-135B	NWJB-200		NWJB-340	NWJB-500		NWJB-850
	Replaceable head	NWJB-C10	NWJB-C30A	NWJB-C30B	NWJB-C60	NWJB-C85	NWJB-C135A	NWJB-C135B	NWJB-C200		NWJB-C340
Minimum indexing value		0.01					0.1
Maximum operating range	N.m	10	30	30	60	85	135	135	200		340	500		850
	ft.lbf	7.37	14.75	14.75	22.12	62.69	99.57	99.57	147.5		250	368.7		626.8
	in.lbf	88.5	177	177	265.5	752.31	1195	1195	1770		3009	4424		7521
	kgf.cm	101.97	203.94	203.94	305.91	866.75	1376.613	1376.613	2039.433		3467.03	5098.58		8667.58
Connector		1/4		3/8				1/2				3/4
Connection size of replaceable head		9×12						14×18
Length (mm)		390		420				535		655		950	1220
Accuracy		Clockwise: ±2%					Clockwise: ± 2.5%
		counterclockwise: ±2.5%					counterclockwise: ± 3.5%
Number of teeth of ratchet wheel		36										48
Ratchet wheel form		Two-way ratchet wheel
Unit		N.m、ft.lbf、in.lbf、kgf.cm
Operating mode		Peak Hold (P)/Real Time Mode (T)/Preset Mode (Pre)
Battery		2 1.5 V # AA batteries
Operating temperature		-10℃～60℃
Storage temperature		-20℃～70℃
Humidity		No condensation can reach 90%
Fall test height		1m
Vibration test condition		10G
Life test		10000 times

Product Components

Non-replaceable wrench

Replaceable head wrench

Key / display screen

No.	Name	No.	Name
1	Two-way ratchet wheel	12	Stored value
2	Steering paddle	13	Measuring direction
3	Indicator	14	Operating mode
4	LCD liquid crystal display screen	15	Engineering unit
5	Key	16	Torsion value
6	Battery box	17	Up/Operating Mode Selection
7	Battery cover	18	Down/preset Value Adjustment
8	Ratchet torque square head	19	Save/Store Data View
9	Buzzer	20	Menu/Unit
10	Grip	21	Power/Clear
11	Battery charge	22	Replaceable ratchet wheel
