High Precision Terminal Pull Force Tester for Reliable Connector Strength Measurement

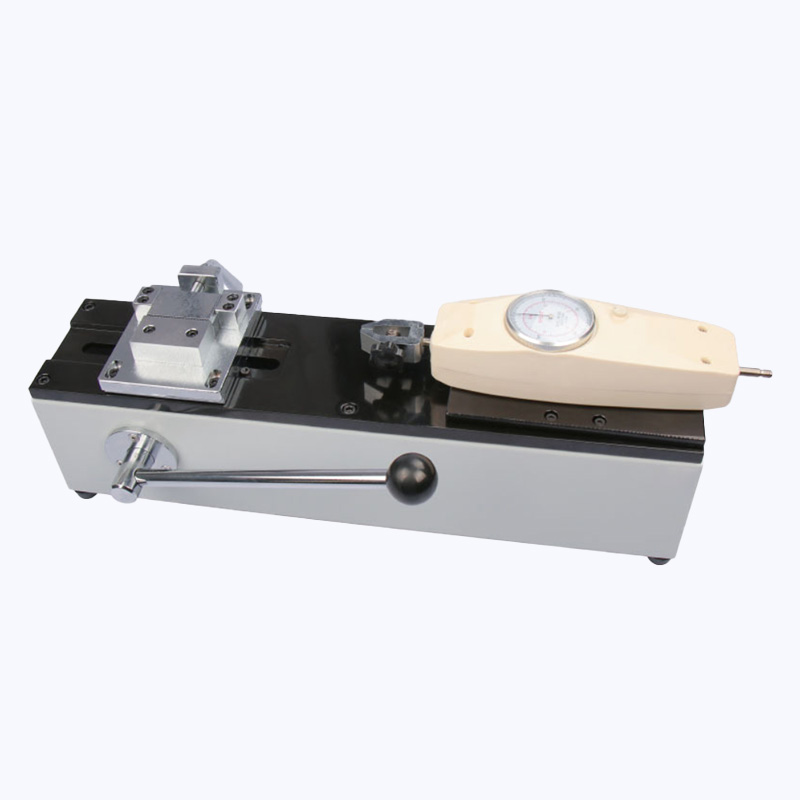

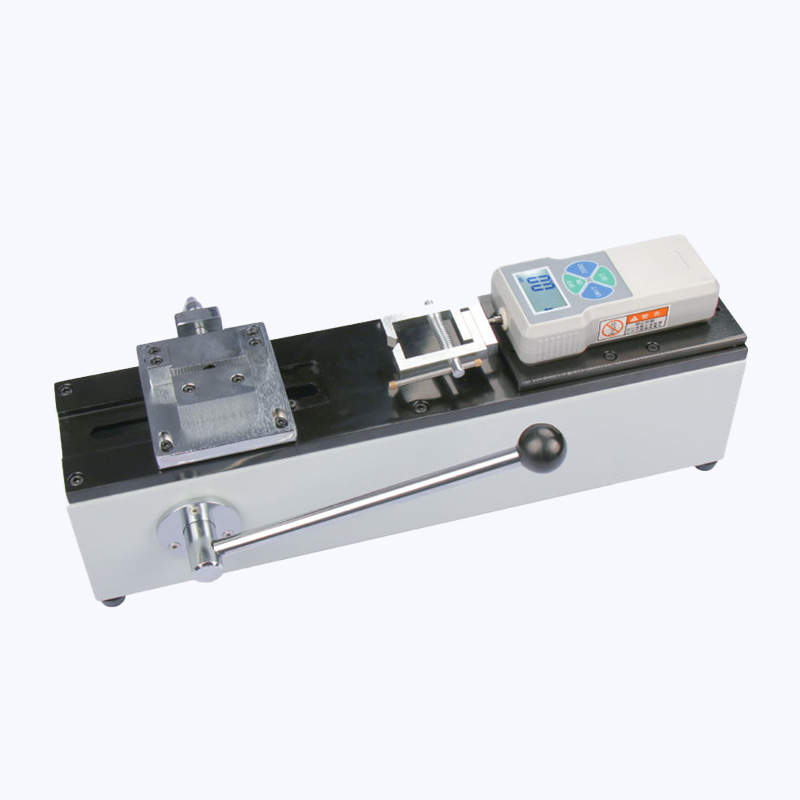

ADL Terminal pull force tester is a kind of testing equipment to wiring harness and electronic industry, specifically used to test all kinds of wire terminals pulling-out force. This essential testing equipment ensures the reliability and safety of connections by accurately assessing the pull force required to detach terminals. With its user-friendly interface and digital display, the tester facilitates easy operation and precise measurements, making it an indispensable tool for quality control in manufacturing and compliance testing.

Product Detail

product detail

Features

● The instrument can combine other force gauges and special fixture in testing.

● This instrument has characteristics of compact device,accurately controlling, high testing accuracy, convenient specimen clamping, simple operation, etc. It is the ideal equipment for wiring harness factory to ensure product quality.

Product Specification

Model:	ADL
Brand	NEWJIELI
Power suply	220V 50/60HZ
Effective stroke:	50MM
Sensor accuracy:	＋0.2% (full scale)
Effective use area of test area:	105100MM(Customized Max 105152mm)
	105100MM(Customized Max 105152mm)
Size:	450160260mm
Weight:	10.6kg
