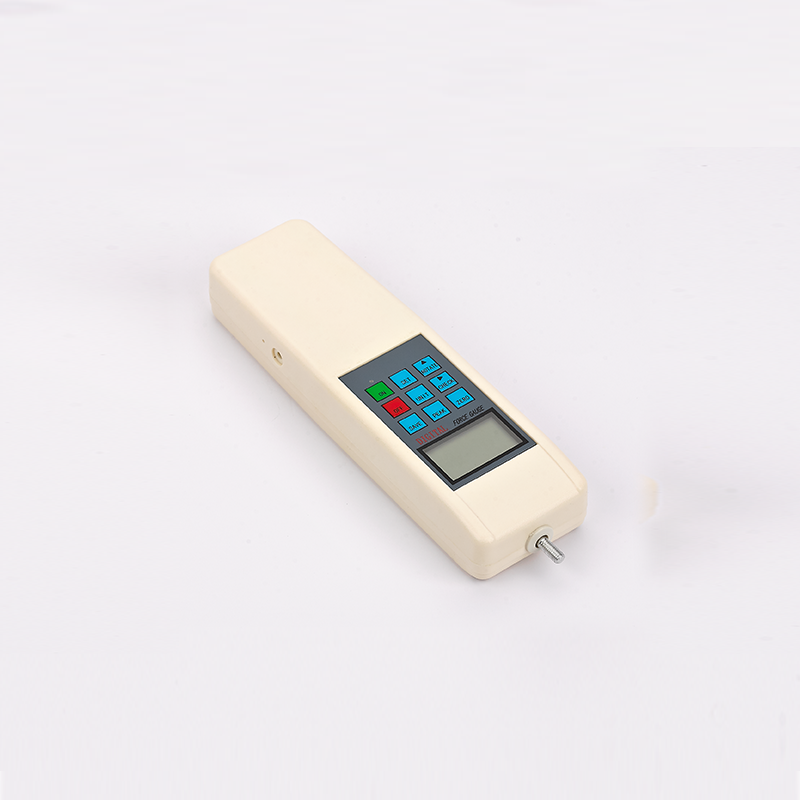

High precision Push Pull Digital Force Gauge with USB Output sensors

The digital force gauge with compact size, high accuracy, they are easy to operate and handy to carry out. Widely applied in electron, high & low voltage electrical appliance, hardware, automobile parts, lighter and ignition system, light industry, mechanical, textile, and so on industries for testing of pull or push load test, insertion force or pull and destructive experiment. This digital force gauge is new generation pulls the pressure measuring instrument.

    Contact us
    product details

    Features

    ● High precision and high resolution.
    ● Five testing modes and three display methods for selection(enhance testing efficiency to the maximum extent).
    ● Three units for option-N(Newton),Kg (Kilogram) and Lb (Pound)
    ● Accurate setting function of gravity acceleration
    ● Data storage function. 447 testing values can be stored.
    ● Data output function. The data can be input into computer through data line for various analyses.
    ● High quality chargeable power supply. The charging voltage is available from 100V to 240V, which can accommodate most areas in domestic and at abroad. It has also protection functions for short circuit, leakage and overload.

    Product specification

    Model

    NST2

    NST3

    NST5

    NST10

    NST20

    NST30

    NST50

    NST100

    NST200

    NST300

    NST500

    Peak load value

    2N

    3N

    5N

    10N

    20N

    30N

    50N

    100N

    200N

    300N

    500N

    0.2kg

    0.3kg

    0.5kg

    1kg

    2kg

    3kg

    5kg

    10kg

    20kg

    30kg

    50kg

    0.45Lb

    0.65Lb

    1.1Lb

    2.2Lb

    4.5Lb

    6.5Lb

    11Lb

    22Lb

    45Lb

    65Lb

    110Lb

    load division value

    0.001N

    0.01N

    0.1N

    0.0001kg

    0.001kg

    0.01kg

    0.0001Lb

    0.001Lb

    0.01Lb

    Sensor structure

    Inner sensor

    Accuracy

    ±0.5％

    Power

    7.2V  1.2V×6  NiMH batteries

    Data interface

    RS 232 nine-hole socket

    Charging time

    4~6 hours

    The battery of continuous use of time

    About 15 hours

    Battery Life

    ≥300 times

     Charger

    Input：AC 100-240V 50HZ    Output：DC 12V 500mA

    Working temperature

    5℃～35℃

    Transport temperature

    -10℃～60℃

    Relative humidity

    15％～80％RH

    Working conditions

    No hypocenter and corrosive medium

    Gross net

    0.6kg

    Dimension

    24.5*6.5*3.8mm

    Model

    NST1000

     NST2000

     NST3000

    NST5000

    NST10k

    NST20k

    NST30k

    NST50k

    NST100k

    NST200k

    NST300k

    NST500k

    NST1000k

    NST2000k

    Peak load value

    1000N

    2000N

    3000N

    5000N

    10KN

    20KN

    30KN

    50KN

    100KN

    200KN

    300KN

    500KN

    1000KN

    2000KN

    100kg

    200kg

    300kg

    500kg

    1Kkg

    2Kkg

    3Kkg

    5Kkg

    10Kkg

    20Kkg

    30Kkg

    50Kkg

    100Kkg

    200Kkg

    220Lb

    450Lb

    650Lb

    1100Lb

    2.2KLb

    4.5KLb

    6.5KLb

    11KLb

    22KLb

    45KLb

    65KLb

    110KLb

    220KLb

    450KLb

    load division value

    0.1N

    1N

    0.001KN

    0.01KN

    0.1KN

    1KN

    0.01kg

    0.1Kg

    0.0001KKg

    0.001KKg

    0.01KKg

    0.1KKg

    0.01Lb

    0.1Lb

    0.0001KLb

    0.001KLb

    0.01KLb

    0.1KLb

    Sensor structure

    Inner/External Sensor

    External sensor

    Accuracy

    ±1％

    Data interface

    RS 232  nine-hole socket

    Power

    7.2V  1.2V×6  NiMH batteries

    Charging time

    4~6 hours

    The battery of continuous use of time

    About 15 hours

    Battery Life

    ≥300 times

    Charger

    Input：AC 100-240V 50HZ    Output：DC 12V 500mA

    Working temperature

    5℃～35℃

    Transport temperature

    -10℃～60℃

    Relative humidity

    15％～80％RH

    Working conditions

    No hypocenter and corrosive medium

     Product Structure

    Inner-Sensoro74
    Inner Sensor      External sensor
    ◇ Stype sensor
    • Inner-Sensor131j
    • Inner-Sensor2cje

    Range

    Size/mm

    Equivalent

    D

    L

    H

    B
    50~500N 5~50Kg

    M8

    		 51 64 12.7
    1K~5KN 100~500Kg M12 51 76 19.1
    10KN 1t M12 51 76 25.4
    20~50KN 2~5t M20 76 108 25.4
    100KN 10t M30 127 178 51
    200KN 20t M36×3 140 188 60
    ◇ Spoke sensor
    • Spoke-sensors0g
    • Spoke-sensor2bc2

    Range

    Size/mm

    Equivalent

    ΦA

    ΦB

    ΦC

    ΦF

    MD

    H

    E

    5000N~50KN

    500Kg~5t

    105

    88.9

    6.5

    32

    M16×1.5

    37

    34

    100、200KN

    10~20t

    125

    101.6

    8.5

    39

    M32×1.5

    52

    48

    500KN

    50t

    145

    116.8

    10.5

    50

    M40×1.5

    58

    54

    1000KN

    100t

    205

    162

    12.5

    80

    M60×2

    85

    78
    ◇ Column Type sensor (Internal thread)
    • Column-Type-sensor-(Internal-thread)27e2
    • Column-Type-sensor-(Internal-thread)s07

    Range

    Size/mm

    		Equivalent

    A

    H

    φB

    φ

    M

    C
    1000~5000N 100~500Kg

    88

    58

    28

    44

    16×1.5

    26
    10~50 1~5t

    120

    68

    51

    63

    22

    48
    100 10t

    138

    94

    60

    76

    30

    56
    200 20t

    156

    108

    68.5

    88

    36×3

    76
    ◇ Column Type sensor (External thread)
    • Column-Type-sensor-(External-thread)1j3i
    • Column-Type-sensor-(External-thread)2nec
    KN Equivalent(T) A ΦB C M
    100~200 10~20 214 86 124 M42×4.5
    500 50 276 106 156 M56×5.5
    1000 100 380 142 180 M90×6
    2000 200 500 175 220 M140×10
    Data interface (9PIN)
    Column-Type-sensor-(External-thread)5fgq

    PIN

    Function

    PIN4  PIN5

    Contact Point Signal

    PIN2  PIN3

    PIN5

    RS232 interface to computer
    Outline and mounting dimension chart
    • Outline-and-mounting-dimension-charty8z
    • Outline-and-mounting-dimension-chart2shx

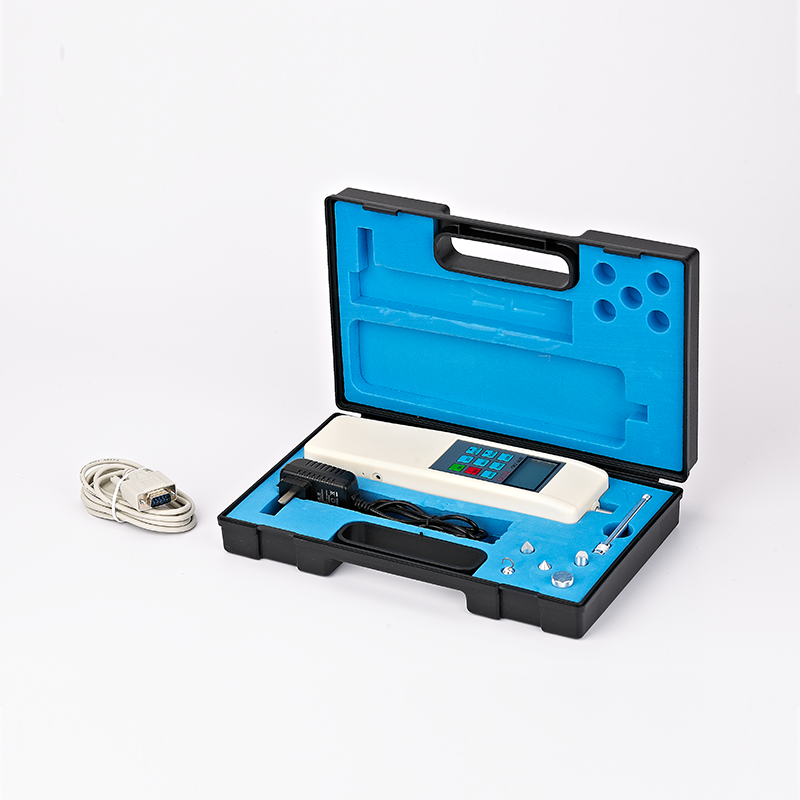

    Packing list

    Charger

    Compressed clamp

    Stretching clamp

    Extended bar

    Mounting screw

    Manual

    Inspection certificate

    2

    1

    4

    1

    1

    4

    1

    1

    3

    1

    4

    1

    1

    4

    1

    1

    5

    1

    4

    1

    1

    4

    1

    1

    10

    1

    4

    1

    1

    4

    1

    1

    20

    1

    4

    1

    1

    4

    1

    1

    30

    1

    4

    1

    1

    4

    1

    1

    50

    1

    4

    1

    1

    4

    1

    1

    100

    1

    4

    1

    1

    4

    1

    1

    200

    1

    4

    1

    1

    4

    1

    1

    300

    1

    4

    1

    1

    4

    1

    1

    500

    1

    4

    1

    1

    4

    1

    1

    1000 (built-in)

    1

    4

    1

    1

    4

    1

    1

    1000（external）

    1

    3

    2

    -

    4

    1

    1

    2000

    1

    3

    2

    -

    4

    1

    1

    3000

    1

    3

    2

    -

    4

    1

    1

    5000

    1

    3

    2

    -

    4

    1

    1

    10K

    1

    3

    2

    -

    4

    1

    1

    20K

    1

    3

    2

    -

    4

    1

    1

    30K

    1

    3

    2

    -

    4

    1

    1

    50K

    1

    3

    2

    -

    4

    1

    1

    100K

    1

    -

    -

    -

    4

    1

    1

    200K

    1

    -

    -

    -

    4

    1

    1

    300K

    1

    -

    -

    -

    4

    1

    1

    500K

    1

    -

    -

    -

    4

    1

    1

    1000K

    1

    -

    -

    -

    4

    1

    1

    2000K

    1

    -

    -

    -

    4

    1

    1
