High-Precision Concentricity Tester for Accurate Measurement and Quality Control
Features
● Precision measurement for the circularity, concentricity, circular runout of shaft workpiece
● Precision measurement quickly for outer circle and inner circle of shaft workpiece simultaneously
● Precision measurement for muti-points in one shaft workpiece simultaneously
● Quick measuring for flush surface, inner circle and outer circle at the same time
● The standard accuracy is 0.005mm and the high accuracy is 0.002mm
● Fast measurements save time
● Easy to operate, strong versatility
● Lightweight, easy to move and easy to maintain
Product specification
| Model | Clamp type | Measuring range (mm) | Head accuracy (μm) | Overall accuracy (μm) | |
| Applicable diameter | Applicable length | ||||
| NWA-10 | Single lever type | 3-25 | 102 | ≤ 1μm | ≤ 5μm |
| NWA-20 | 10-50 | 152 | |||
| NWA-40 | 20-102 | 203 | |||
| NWK1-10 | Dual lever type | 3-25 | 102 | ||
| NWK1-20 | 10-50 | 152 | |||
| NWK1-40 | 20-102 | 203 | |||
| NWK2-20 | Scale/lever type | 10-50 | 152 | ||
| NWK2-40 | 20-102 | 203 | |||
| NWA-10G | Single lever type | 3--25 | 102 | ≤2μm | |
| NWA-20G | 10-50 | 152 | |||
| NWA-40G | 20-102 | 203 | |||
| NWK1-10G | Dual lever type | 3-25 | 102 | ||
| NWK1-20G | 10-50 | 152 | |||
| NWK1-40G | 20-102 | 203 | |||
| NWK2-20G | Scale/lever type | 10-50 | 152 | ||
| NWK2-40G | 20-102 | 203 | |||
Product Structure

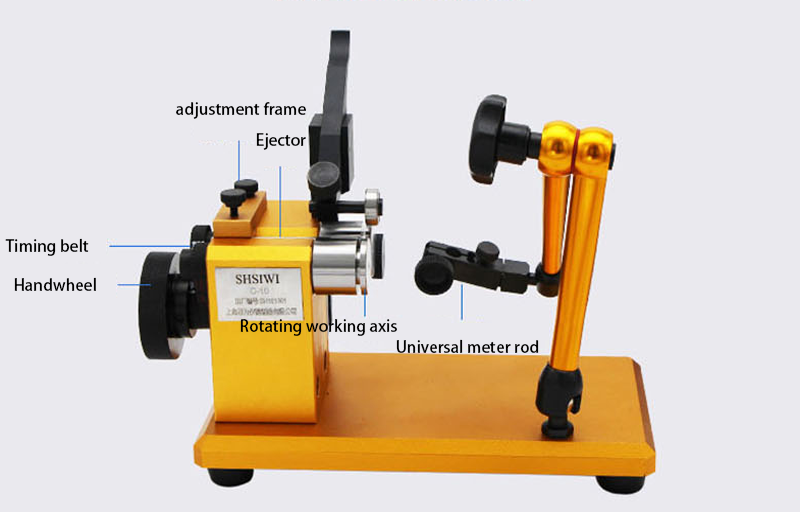

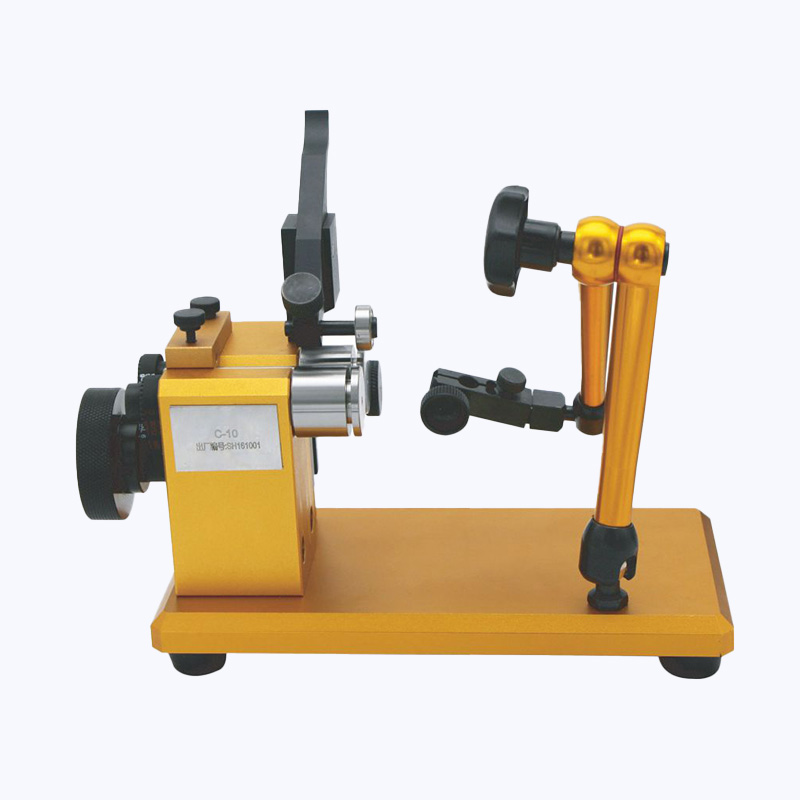

Economical C Series
