High-Precision Automatic Turret Vickers Hardness Tester for Steel, Non-ferrous Metals Etc

The automatic turret Vickers hardness tester is a high-tech product integrating optics, mechanics and electronics. This hardness tester has a novel design and boasts excellent reliability, operability and repeatability, making it an ideal product for testing Vickers hardness. The machine adopts computer software programming and an optical measurement system. Through the input via soft keys, it allows for the selection of the measurement of Vickers and Knoop hardness, enables the adjustment of the intensity of the measurement light source, and makes it possible to choose the dwell time. On the LCD display screen, the test method and test force can be shown. By inputting the length of the indentation diagonal on the panel, the hardness value can be directly read out on the screen, which simplifies the complexity of looking up tables. It is convenient to use and has high measurement accuracy.

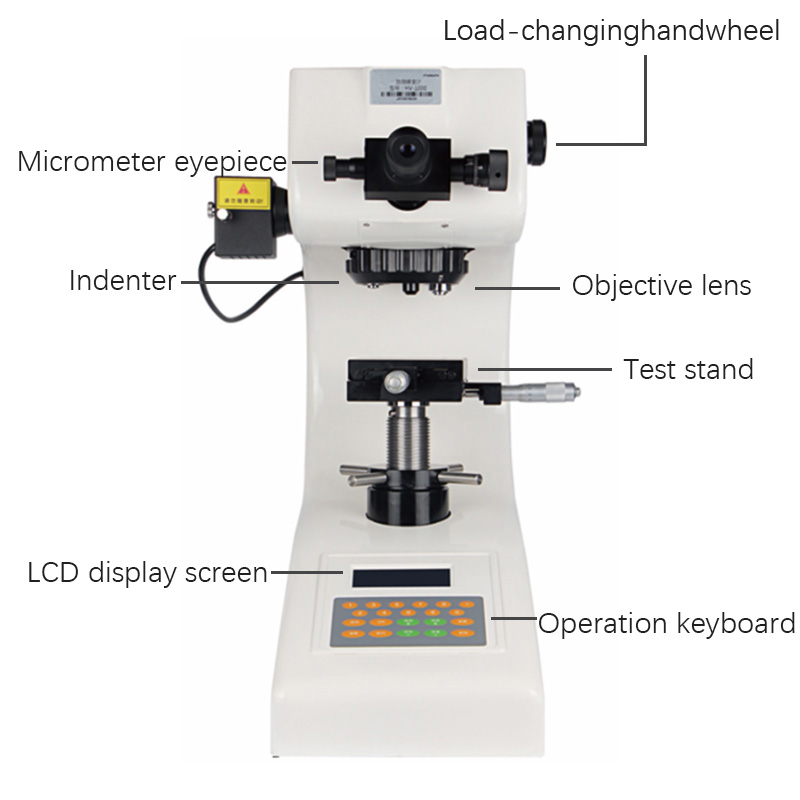

Product Detail

Features

● Optical System's Outstanding Features: The optical system designed by senior optical engineers not only has clear images but can also be used as a simple microscope. The brightness is adjustable, providing a comfortable visual experience and lessening fatigue during long-term operation.

● Advantages of the Industrial Display Screen: The industrial display screen can intuitively show hardness values, hardness conversions, test methods, test forces, holding times, measurement numbers, and the test process is clear and straightforward.

● Highlights of the Cast Aluminum Shell: The cast aluminum shell is formed in one piece, with a stable structure that does not deform. It has a high-grade pure white automotive paint finish, strong scratch resistance, and remains shiny and new after many years of use.

Product Specification

Model	HV-5Z/10Z/30Z/50Z
Vickers hardness scale	HV0.3, HV0.5, HV1.0, HV2.0, HV3.0, HV5.0
	HV0.3, HV0.5, HV1.0, HV2.0, HV3.0, HV5.0, HV10.0
	HV1, HV3, HV5, HV10, HV20, HV30
	HV1, HV5, HV10, HV20, HV30, HV50
Test force (Kgf)	0. 3, 0.5, 1.0, 2.0, 3.0, 5.0, 10.0, 20.0, 30.0, 50.0
Screen/turret	Manual turret HV and automatic turret HVS are optional
Diagonal length input optical system resolution	Manual HV:0.5μm Automatic HVS:0.125μm
Display	5-digit hardness value, 4-digit diagonal length (D1,D2), hold time, number of tests, average, mean standard deviation, return
Load control	Automatic (load/hold/unload)
Dwell time of the test force (s)	5~60
Optical system	1. Objective lens: 10× 20×, eyepiece: 10 x; 2. Total amplification (μm): 100×( Observation ), 200×(Measurement); 3. Measuring range (μm): 200
Optical channel	Dual optical channel (eyepiece and CCD camera channel)
Hardness measuring range	(5-3000)HV
Unit conversion	Brinell, Rockwell, Knoop
Scale conversion	HK (Knoop)
X-Y test table	Size (mm): 100×100; travel (mm): 25×25, resolution (mm): 0.01
Max height of specimen (mm)	165
Max width of specimen (mm)	130 (Distance from center line of indenter to machine wall)
Data output	Reserved built-in micro printer interface (RS232 serial interface), optional installation
Power supply	AC220V/50HZ
Dimensions (mm)	585mm200mm630mm
Weight (kg)	45
