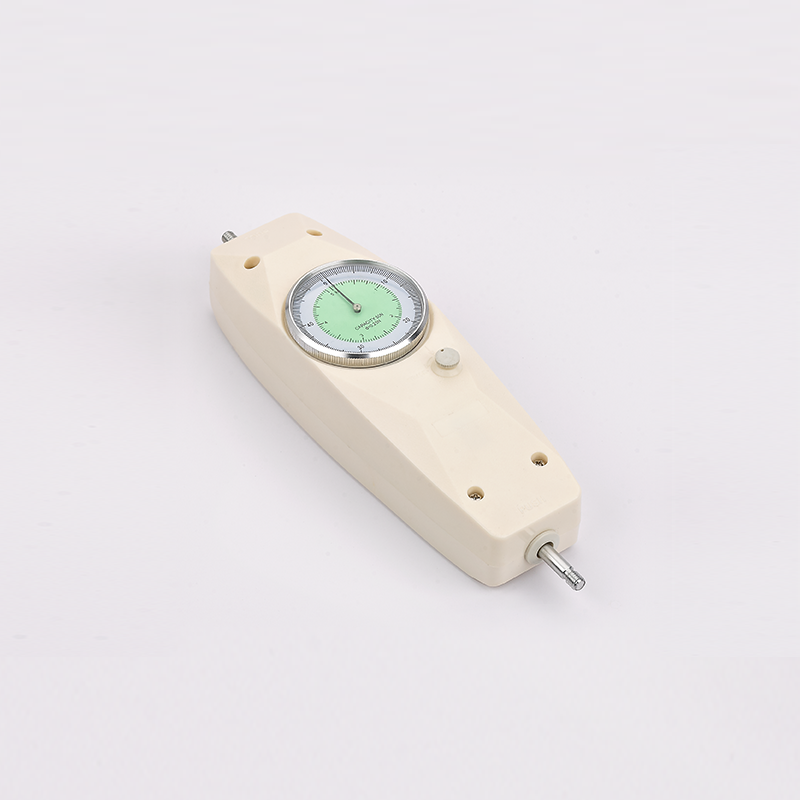

Analog Push Pull Force Gauge with Accurate Precision Pointer Display
Features
● Small size, simple operation, can be hand-held or installed on various test benches, combined with various fixtures for testing
● The digital display direction can be flipped up and down, and the large font display is convenient, and the test accuracy is high
● Free switching between continuous load indication and peak holding function
● Newton, kilogram and pound units can be switched at any time
● The sensitivity of the keys of this instrument is set to 1 second, and there may be no response when pressing the keys quickly
● Please pause slightly when pressing the button to ensure that the key function works normally
Product specification
|
Model |
NZT20 |
NZT30 |
NZT50 |
NZT100 |
NZT200 |
NZT300 |
NZT500 |
|
Brand |
NEWJIELI |
||||||
|
Max. Load value |
20N 2kg |
30N 3kg |
50N 5kg |
100N 10kg |
200N 20kg |
300N 30kg |
500N 50kg |
|
Min Load value |
2N 0.2kg |
3N 0.3kg |
5N 0.5kg |
10N 1kg |
20N 2kg |
30N 3kg |
50N 5kg |
|
Load graduation value |
0.1N 20g |
0.2N 20g |
0.25N 50g |
0.5N 100g |
1.0N 200g |
2.0N 200g |
2.5N 500g |
|
Unit |
Lb,Kg,N |
||||||
|
Push-pull rod travel |
10mm |
||||||
|
Item dimension |
225*60*51mm |
||||||
|
Gross weight |
1kg |
||||||
|
Working temperature |
10℃ ~30℃ |
||||||
|
Relative humidity |
15%~80%RH |
||||||
|
Place of origin |
Zhejiang, China |
||||||
|
Warranty |
1 year |
||||||
|
Package Quantity |
Up to order |
||||||
|
Package Sizes |
Up to quantities |
||||||
Product Structure

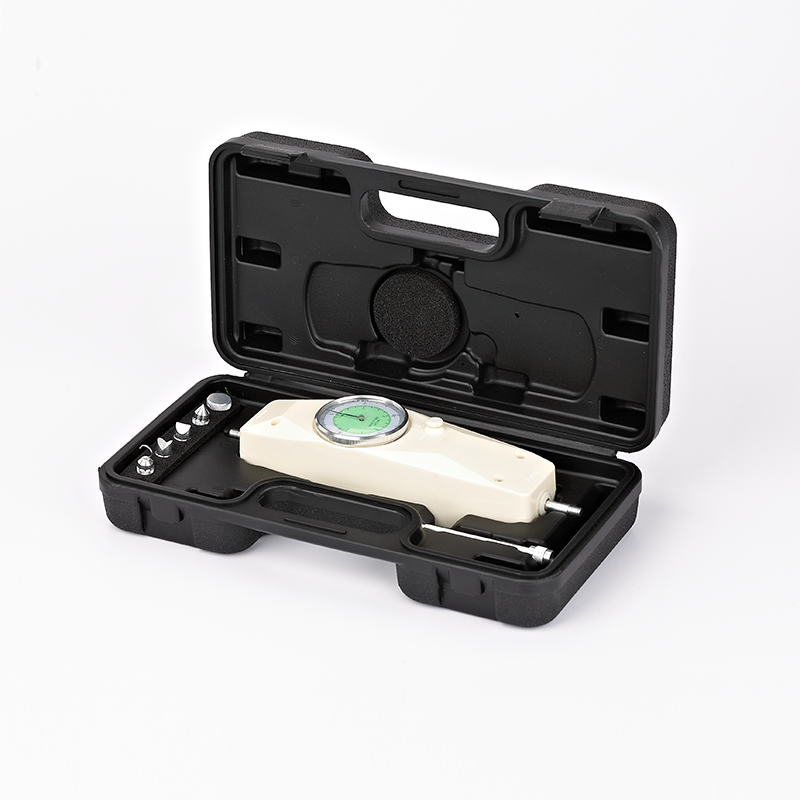

Package details
|
No. |
Name |
Qty |
|
1 |
Push clamp |
4 |
|
2 |
Pull clamp |
1 |
|
3 |
Added pole |
1 |
|
4 |
User manual |
1 |
|
5 |
Check certificate |
1 |
