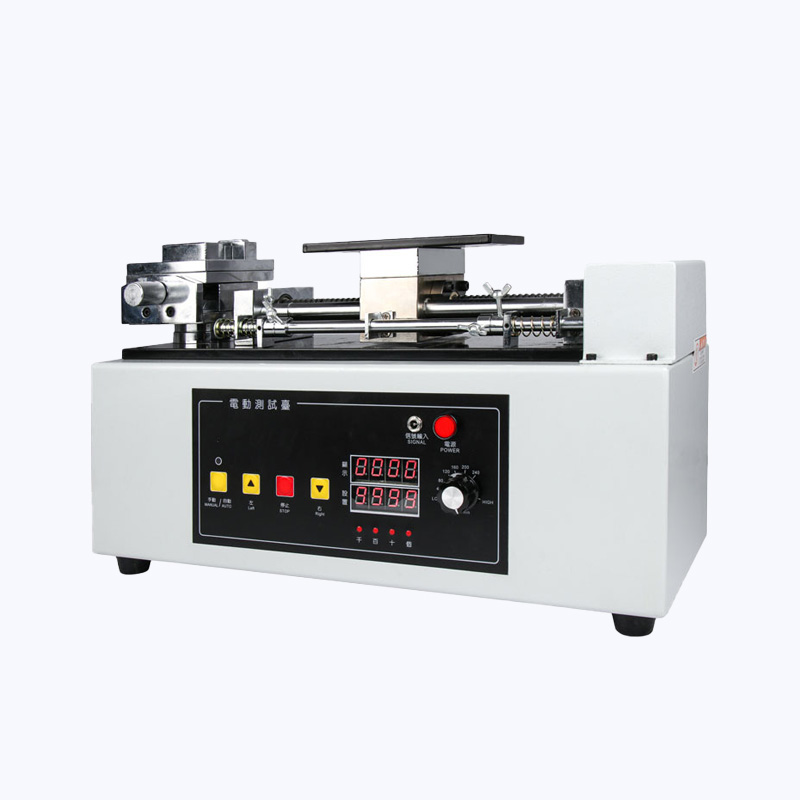

High-Performance Electric Horizontal Testing Platform

Electric Horizontal Testing Platform is designed for  series force gauge of push-pull load test. This product adopts double guide bar structure, it has good stability, wide suitable scope, convenient use, and has advantages of stepless speed adjustment, manual (jog), automatic control switch function. Applicable to electronic appliances, electric wire and cable, hardware machinery, electromagnetic machinery, auto parts, and machinery, chemical industry, building doors and windows, adhesive plastic woven, spring coil manufacturing, medical equipment, fire equipment, printing and packaging, shaver, gear aviation, zipper buttons, textile and clothing, coal, furniture, elevator, lighter and ignition devices, lock, pens industry , electric power industries and scientific research institutions, schools, etc.

    product detail

    Feature

    ● Electric loading with stepless speed regulation.

    ● Screw drive with a compact structure.

    ● Smooth transmission and easy operation.

    ● Compatible with various push-pull force gauges and fixtures, offering strong functionality.



    Product Specification

    Model NJX-200-500N NJX-400-500N NJX-700-500N NJX-200-1000N NJX-400-1000N NJX-700-1000N
    Brand NEWJIELI
    Max Lord 500N 1000N
    Effective Stroke 200mm 400mm 700mm 200mm 400mm 700mm
    Operating Voltage AC220V
    Test Speed

    25-280mm/min

    Dimension 280×340×780mm 280×340×980mm 280×340×1270mm 280×340×780mm 280×340×980mm 280×340×1270mm
    Weight 38kg 40kg 42kg 38kg 40kg 42kg



    Product Structure
