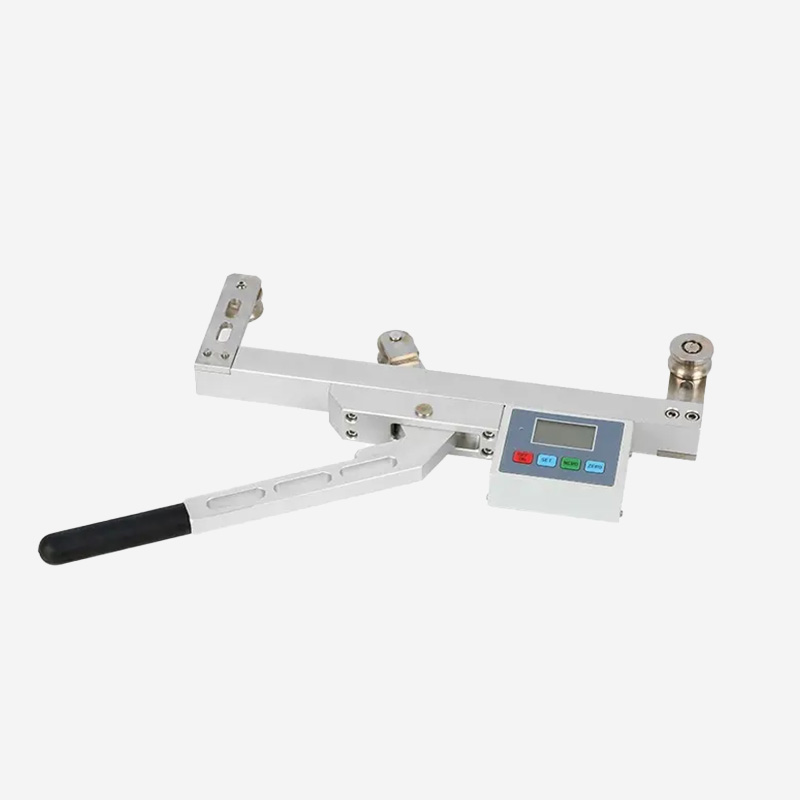

High speed railway tension meter Fiber optic rope tester
product detail
Features
● Online measurement: the rope does not need to be removed, but the rope with tension can be measured online. When the rope tension is loaded in real time, the real-time tension can be observed online.
● Portable: the instrument uses high strength aluminum alloy structure, light weight, small volume, easy to carry, measure the rope tension, one person can complete all the operations.
● Easy operation: the instrument loading mechanism adopts lever structure, only the push of the instrument handle to correctly measure the rope tension; the operation is easy, a person can complete a measurement within 30 seconds.
● The instrument has stable performance and high measurement accuracy. When the specification of the measured rope is consistent with the rope number stored in the Force meter, the measurement accuracy can reach 5% of the full range within the quantitative range.
● The instrument has built-in three preset specifications of rope, and only need to choose the corresponding rope number when measuring.
● Digital display force value, the instrument uses LCD display to measure the force value, reading is more convenient.
● Three unit switching: The instrument can switch between N, Kgf, and Lbf force values.
● The instrument can save 383 sets of measurement data, and the saved data can be exported by computer.
Product Specification
| Model | NGZ-A-5000G | NGZ-A-5000S | NGZ-B-5000G | NGZ-B-5000S | NGZ-C-5000G | NGZ-C-5000S | |
| Brand | NEWJIELI | ||||||
| Resolution | 1N | ||||||
| Units | N，Kgf，Lbf | ||||||
| Accuracy | ±5% | ||||||
| Sampling Rate | 10Hz | ||||||
| Battery | NiMH 7.2V Battery Packs | ||||||
| Charger | Input: AC 100-240V 50Hz Output: DC 12V 500mA | ||||||
| Dimension | 430×142×40 （mm） | ||||||
| Max Range | 5000N | ||||||
Copper stranded tension gauge built-in specification table
NGZ-A-5000G The built-in specifications of rope tension meter are shown below:
NGZ-B-5000G The built-in specifications of rope tension meter are shown below:
NGZ-C-5000G The built-in specifications of rope tension meter are shown below:
Steel wire rope tension gauge built-in specification table
NGZ-A-5000S The built-in specifications of rope tension meter are shown below:
NGZ-B-5000S The built-in specifications of rope tension meter are shown below:
NGZ-C-5000S The built-in specifications of rope tension meter are shown below:
Product Structure
