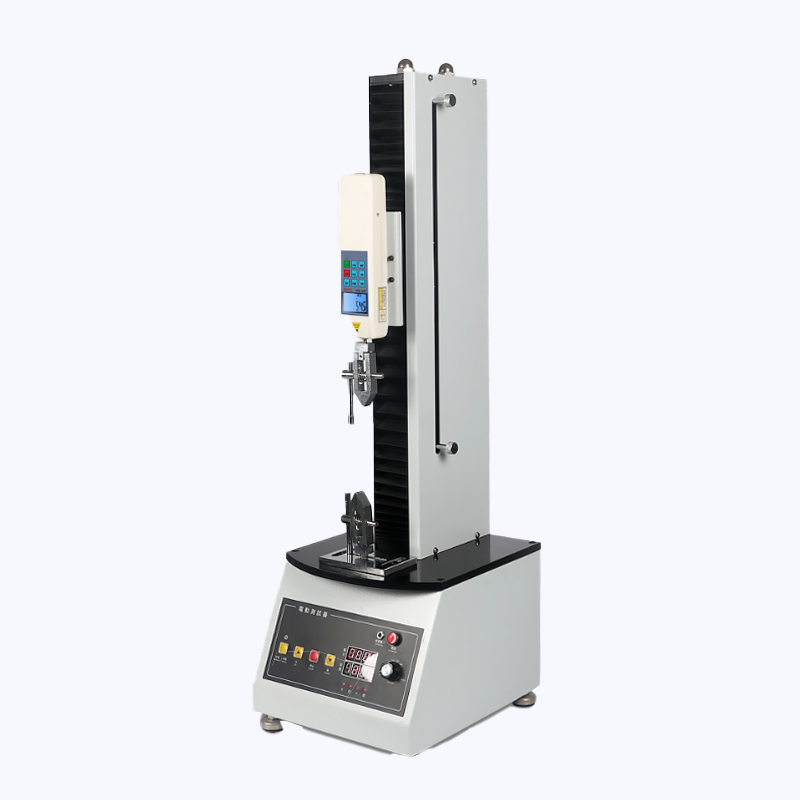

Electric Single-column Vertical Machine

NEL Single-column Vertical Machine is force load test platform specially matched for HF and NK series force measurement gauge. The product is double vertical rod structure, featuring good stability, wide applicable scope and convenience, as well as stepless speed regulation, manual (point) and automatic control switching functions. Applicable for tests of force load, Insertion and withdrawal, destruction in such industries as rubber and plastic, light industry-textile, constructional door and window, composite materials, electric wire and cable, parts and accessories for automobile, power machinery, scientific research institutes, etc.

Product Detail

product detail

Feature

● The machine is equipped with a 17-inch large LCD display for clear visibility of test data.

● It provides real-time display of force and displacement, allowing users to monitor the testing process continuously.

● There are two measurement modes available: real-time and peak, offering flexibility in data collection.

● The device operates in two working modes: automatic and manual, catering to different testing needs.

● The user interface features an intuitive Chinese dialogue system, making it easy to navigate and operate.

● It includes a continuous increase/decrease speed function, enabling precise control over testing conditions.

● The machine is equipped with an emergency stop function to ensure user safety during operation.

Product Specification

Model	NJX-200-500	NJX-400-500	NJX-700-500	NJX-200-1000	NJX-400-1000	NJX-700-1000
Brand	NEWJIELI
Range	200-500N	400-500N	700-500N	200-1000N	400-1000N	700-1000N
Maximum load	500N			1000N
Effective travel	200MM	400MM	700MM	200MM	400MM	700MM
Test speed	70~270mm/min （The speed varies according to the load, and the speed becomes smaller when the load becomes larger）
Working voltage	AC110V
Outline dimension	280x340x780	280x340x980	280x340x1270	280x340x780	280x340x980	280x340x1270
Net weight	38KG	40KG	42KG	38KG	40KG	42KG
