Digital Torque Meter For Torque Wrench
Features
● Clockwise and counterclockwise can be operated.
● Real-time measurement mode (track), peak mode (peak), save the peak calculation mode (pre)
● Units: N.M., lbf.ft, lbf.in and kgf.cm are available for selection and mutual conversion.
● Data storage function, which can store 100 test values. Three digital tubes in the upper left corner show the number of data currently stored.
● Communication function
● Automatic shutdown can be set to the required automatic shutdown time. When automatic shutdown is set to 0, it will not be automatically shut down.
● With charging function
Product specification
|
Model |
Measuring range （N.m） |
Dividing value （N.m） |
Precision |
Nominal size of inner hexagon |
Net weight |
Clamping range |
|||
|
inch |
mm |
kg |
mm |
||||||
|
NQBH-0.5 |
0.1-0.5 |
0.0001 |
±2% |
1/4 |
6.35 |
0.8 |
1-8 |
||
|
NQBH-1 |
0.2-1 |
0.001 |
±2% |
1/4 |
6.35 |
||||
|
NQBH-2 |
0.4-2 |
0.001 |
±2% |
1/4 |
6.35 |
||||

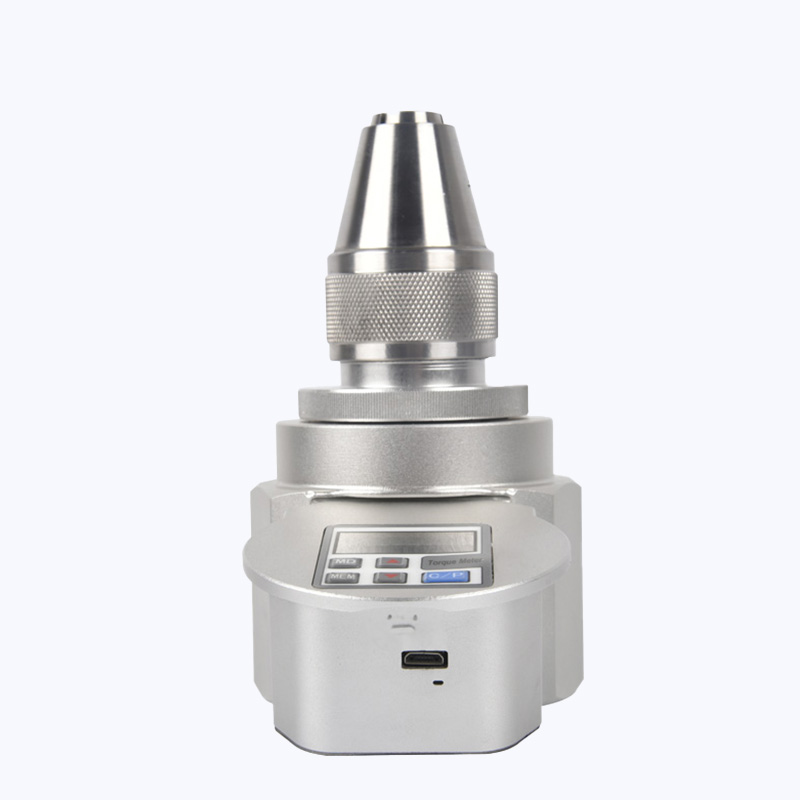

Function and name of each component
①Three-jaw
The three-jaw device can tighten and loosen freely with the tightening and loosening of the thread, and clamp the measured object.
②Liquid crystal display:
The 4-and-a-half-bit LCD display includes electric quantity display, two working modes, preset value setting, torque unit, torque value, torque direction mark and stored count value.
③USB communication interface
Connect the computer to transmit data, and connect the charger to charge the battery.
④Key panel
The key panel includes five keys:
、
、
and
、
: Scroll up the stored data and change the settings.
: Enter data viewing mode, scroll down to store data, switch interfaces and change settings.
: data storage, switching or saving when setting parameters.
: Working mode switching.
: Turn on/off, confirm zero position and delete data.
