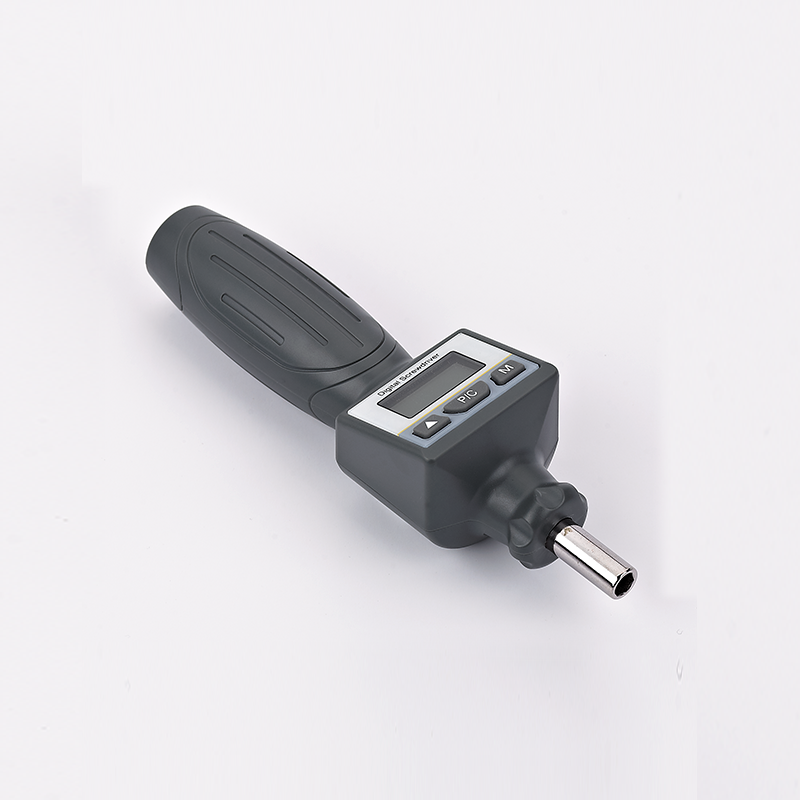

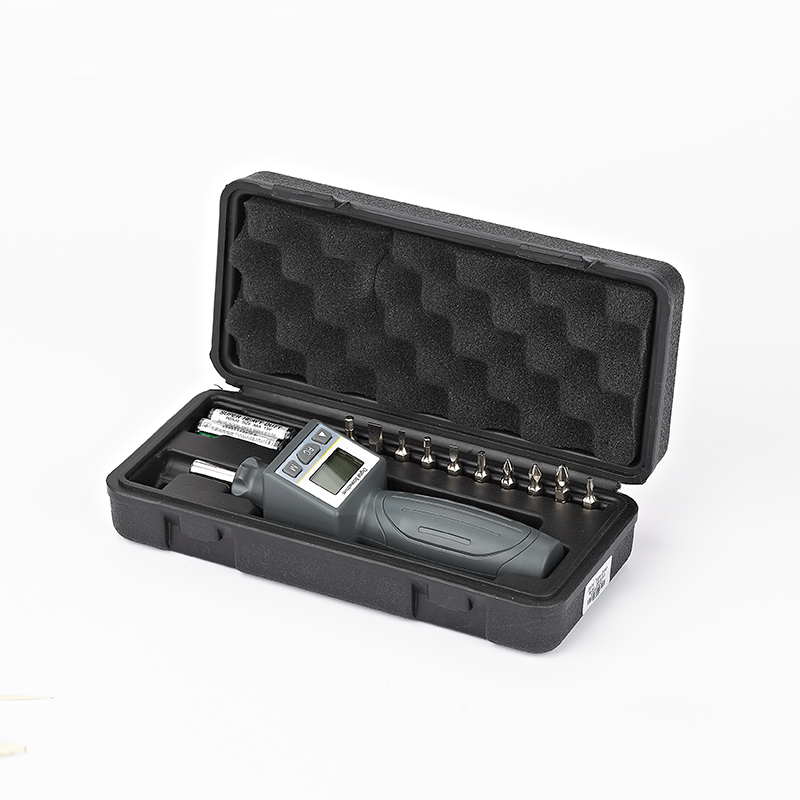

Compact Digital Torque Screwdriver Bits Set by Trusted Manufacturer
Features
♦ Digital display backlight, easy to read data clearly.
♦ Automatic shutdown after 1 minute of no operation to save quantity of electricity.
♦ Clockwise and counterclockwise bidirectional operation.
♦ Three working modes of real time, peak value and preset value can be switched freely.
♦ Four torque unit options (N.m, ft.lbf, in.lbf, kgf.cm).
♦ It has the function of storing data.
♦ Torque direction mark and battery power display.
Product specification
|
Model |
NSQ-0.5 |
NSQ-2 |
NSQ-4 |
NSQ-8 |
|
Range(N.m) |
0.05-0.5 |
0.2-2 |
0.4-4 |
0.8-8 |
|
Unit |
N.m, ft.lbf, in.lbf, kgf.cm |
|||
|
Division Value(N.m) |
0.0001 |
0.001 |
||
|
Precision |
±2% |
|||
|
Nominal size of inner hexagon |
1/4（inch） 6.35（mm） |
|||
|
Gross weight(kg) |
0.12 |
|||
|
Battery |
2 Pcs AAA Battery |
|||
Product structure
Steps for battery replacement
1. Remove the Included Screwdriver: Use the provided screwdriver to loosen the two screws on the back of the handle.
2. Detach the Handle: Gently pry the handle apart, being careful not to damage any internal components.
3. Replace the Batteries: Remove the old batteries and insert new ones, ensuring to follow the correct polarity as indicated.
4. Reassemble the Handle: Put the handle back together, ensuring it clicks into place securely.
5. Tighten the Screws: Use the screwdriver to tighten the screws back into place to secure the handle.
6. Check the Function: After reassembling, perform a quick test to ensure the tool is functioning correctly with the new batteries.
