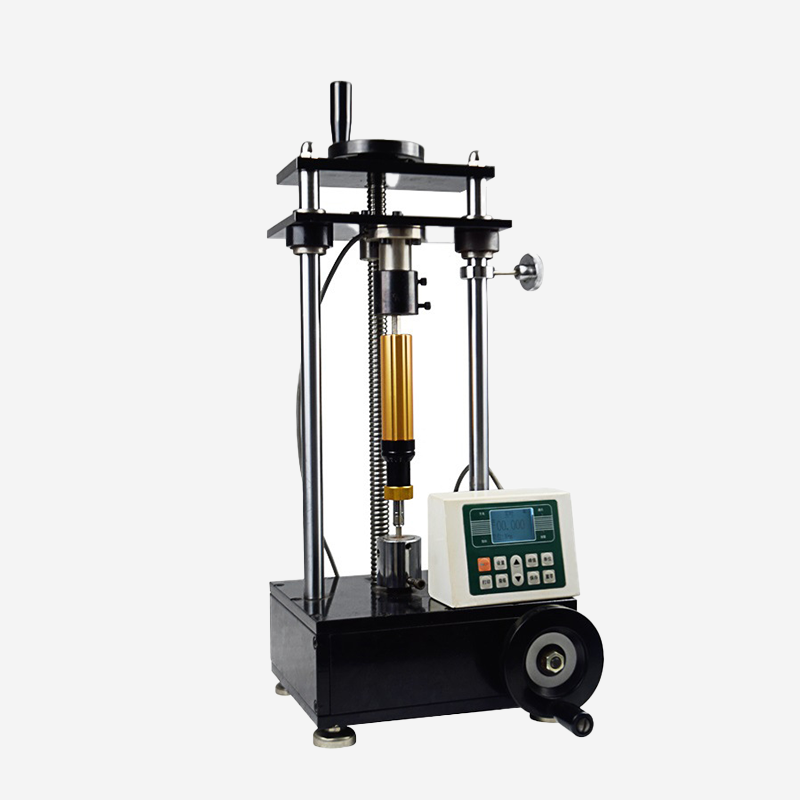

NEWJIELI Torque Screwdriver Calibrator- Precision Tool
Features
● High precision, high resolution, quick sample rate, full screen display.
- ● It is adopt high precision torque sensor with torque direction display.
- ● Setting of upper and lower limit values.
- ● Three units can be switched into each other for optional（N·m, kgf·cm, Ibf·in）
- ● Three modes : Real-time, Peak, Auto-peak can be switched.
- ● The USB interface can be connected to PC to make synchronous tests to show force diagram and also can record and store the result.
- ● Peak hold function, auto-peak function, auto-peak value display time setting function.
- ● Large storage capacity. It can save 99 sets test data.
- ● Automatic shut down without operation, time can be setting freely.
Product specification
|
Model |
NNQJ-2 |
NNQJ-5 |
NNQJ-10 |
NNQJ-20 |
|
|
Measuring Range/ Division Value |
N.m |
2.000/0.001 |
5.000/0.001 |
10.00/0.01 |
20.00/0.01 |
|
Kgf.cm |
20.40/0.01 |
51.00/0.01 |
102.0/0.1 |
204.0/0.1 |
|
|
Ib.in |
17.70/0.01 |
44.25/0.01 |
88.5/0.1 |
177.0/0.1 |
|
|
Precision |
±1％(10%~100% of full scale) |
||||
|
Peak Sampling Frequency |
1920HZ |
||||
|
Power |
7.2V 1.2V×6 Ni-MH Battery |
||||
|
Charging Time |
4~6 hours |
||||
|
Battery Continuous Using Time |
About 10 hours |
||||
|
Battery Life |
≧300 times |
||||
|
Size |
260*300*620mm |
||||
|
Net Weight |
32KG |
||||
|
Charger |
Input：AC 110-240V 50Hz Output：DC 12V 500mA |
||||
Product structure
