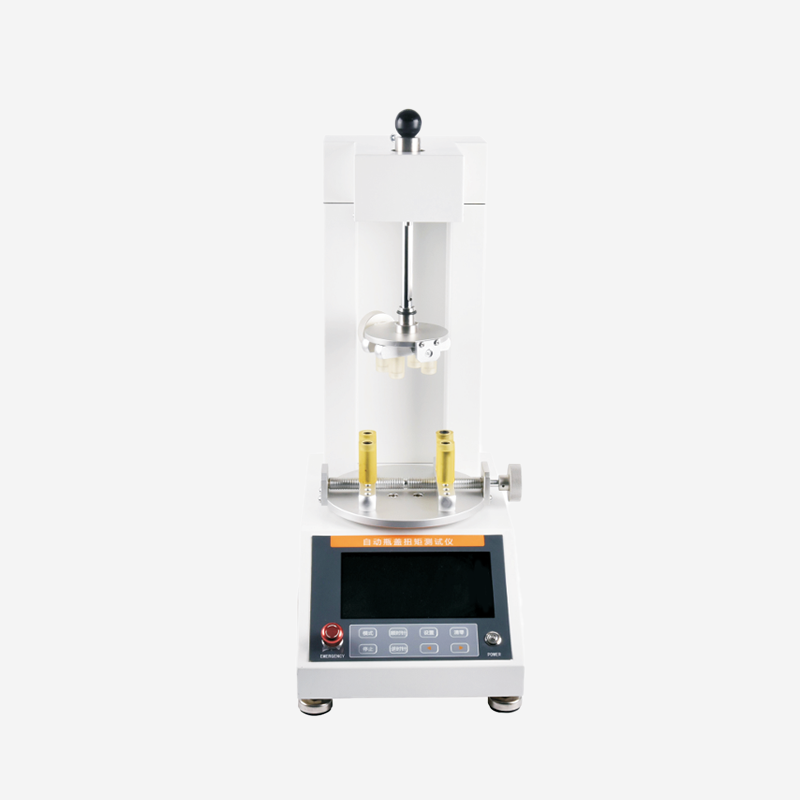

NEWJIELI Automatic Cap Torque Tester For Precise Torque Measurement

The innovative automatic bottle cap torque testing device is a freshly patented solution designed to autonomously measure torque values. By integrating cutting-edge electronic technology with precise mechanical systems, this tester eliminates the inaccuracies associated with manual cap opening and closing during torque tests, aligning with the national standard GB/T 17876. Outfitted with a high-precision torque sensor, it ensures precise force application and positioning. This equipment is ideal for assessing the torque required to open and close a variety of bottle caps, including those on medicinal glass and plastic bottles, child-resistant closures, beverage containers, mineral water, milk bottles, and oil containers. It has become the preferred tool for beverage and bottle manufacturers, as well as research facilities, quality inspection agencies, and medium to large enterprises, to ensure product quality standards.

    Features

    ● Measure the torque value (elastic force value), angle value, clockwise and counterclockwise two-way measurement of the bottle cap.
    • ● Three torque units: N.m, Kgf.cm, Lbf.in
    • ● Angular precision:1°/100°(Unit:deg)
    • ● Torque accuracy:±1%
    • ● Voltage:input AC220V/AC110V.
    • ● Equipped with RS232 interface, can connect the computer to use the host computer control and real-time curve.
    • ● Four measurement modes:Manual mode, automatic peak mode, repetition mode, torque angle modulus.
    • ● Operational speed:3-90deg/s.
    • ● Overload protection, the protection force is 120% of the full range.

      Product specification

      Model NZPJ-1 NZPJ-2 NZPJ-3 NZPJ-5 NZPJ-10
      Torque Range (N.m) 1N 2N 3N 5N 10N
      Maximum Test Range/Minimum Index Value N·m 1.000/0.001 2.000/0.001 3.000/0.001 5.000/0.001 10.00/0.01
      Kgf·cm 10.20/0.01 20.40/0.01 30.60/0.01 51.00/0.01 102.0/0.1
      Lbf·in 8.85/0.01 17.70/0.01 26.55/0.01 44.25/0.01 88.5/0.1
      Measurement Accuracy ±1%(10%~100% of full scale)
      Angular Precision 1°/ 100°
      Clamping Range 18mm-146mm   (Small clamp 6mm-60mm)
      Automatic Tightening Speed 3-90deg/s(Adjustable)
      Operating Temperature 0℃~35℃
      Storage Temperature -20℃~70℃
      Humidity No condensation up to 80%
      Boundary Dimension 440*255*1050mm
      Net Weight About 32kg
      Power Supply AC 220V 50Hz or AC 110V

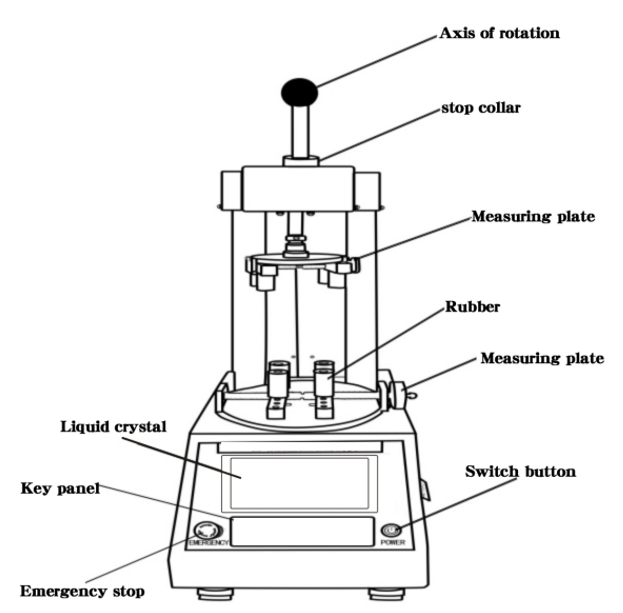

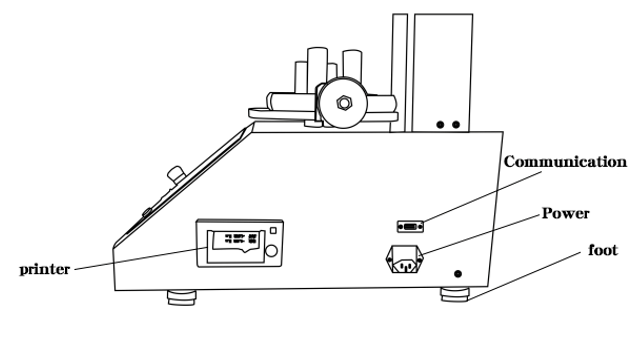

      Product structure

      screenshot-2024-10-29-133202screenshot-2024-10-29-133222
