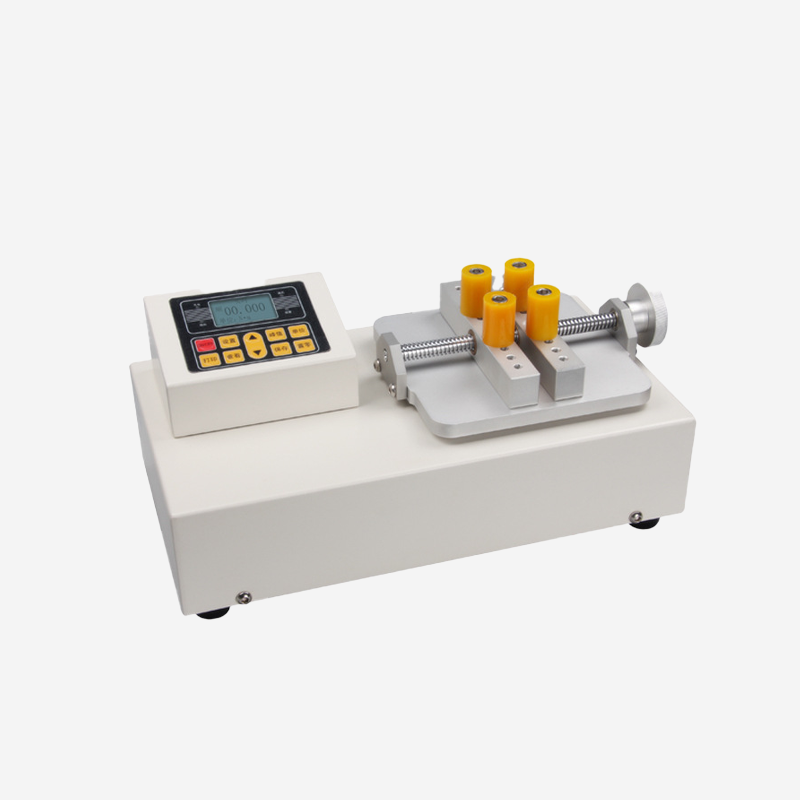

Cap Torque Tester - Precision Tool for Tightness
Features
● High precision, high resolution, quick sampling speed, full-screen display.
- ● Adopting high precision torque sensor, with torque direction display.
- ● Upper and lower limit value setting, red and green indicating lights and buzzer audible and visual alarm.
- ● Three units can be switched each other (N·m、kgf·cm、Ib·in).
- ● Real-time, peak, automatic peak three models of optional switch.
- ● Use USB interface and PC communications, synchronous test function can connect to the computer, computer synchronous display test force graph and the detailed test process, can save, print, doing all sorts of analysis.
- ● Peak holding, remove automatically function, remove time to set freely.
- ● Large storage, can save 99 groups of test data.
- ● Without automatic shutdown function, time can be set freely.
Product specification
| Model |
With printer |
NSPJ-1P |
NSPJ -2P |
NSPJ -3P |
NSPJ -5P |
NSPJ-10P |
NSPJ-20P |
|
No printer |
NSPJ-1 |
NSPJ-2 |
NSPJ-3 |
NSPJ-5 |
NSPJ-10 |
NSPJ-20 |
|
|
Measuring range / Division value |
N·m |
1.0000 0.0001 |
2.0000 0.0001 |
3.0000 0.0001 |
5.0000 0.0001 |
10.000 0.001 |
20.000 0.001 |
|
Kgf·cm |
10.200 0.001 |
20.400 0.001 |
30.600 0.001 |
51.000 0.001 |
102.00 0.01 |
204.00 0.01 |
|
|
Ib·in |
8.850 0.001 |
17.700 0.001 |
26.550 0.001 |
44.250 0.001 |
88.50 0.01 |
177.00 0.01 |
|
|
Precision |
±1%(10%~100% of full scale) |
||||||
|
Peak value sampling frequency |
2000HZ |
||||||
|
Power |
7.2V 1.2VX6 Ni-MH Battery group |
||||||
|
Charging time |
4～6 Hours |
||||||
|
Continuous using time of battery |
About 10 Hours |
||||||
|
Battery life |
≥300 times |
||||||
|
Size |
400mm×200mm×200mm |
||||||
|
Net weight |
12KG |
||||||
|
Power adapter |
Input：AC110V-220V 50HZ Output：DC 12V 500mA |
||||||

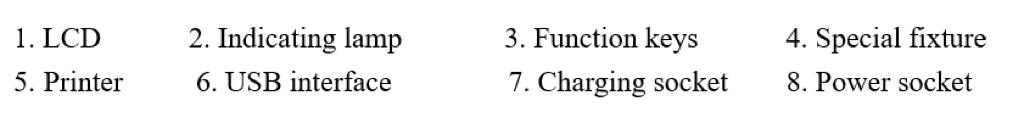

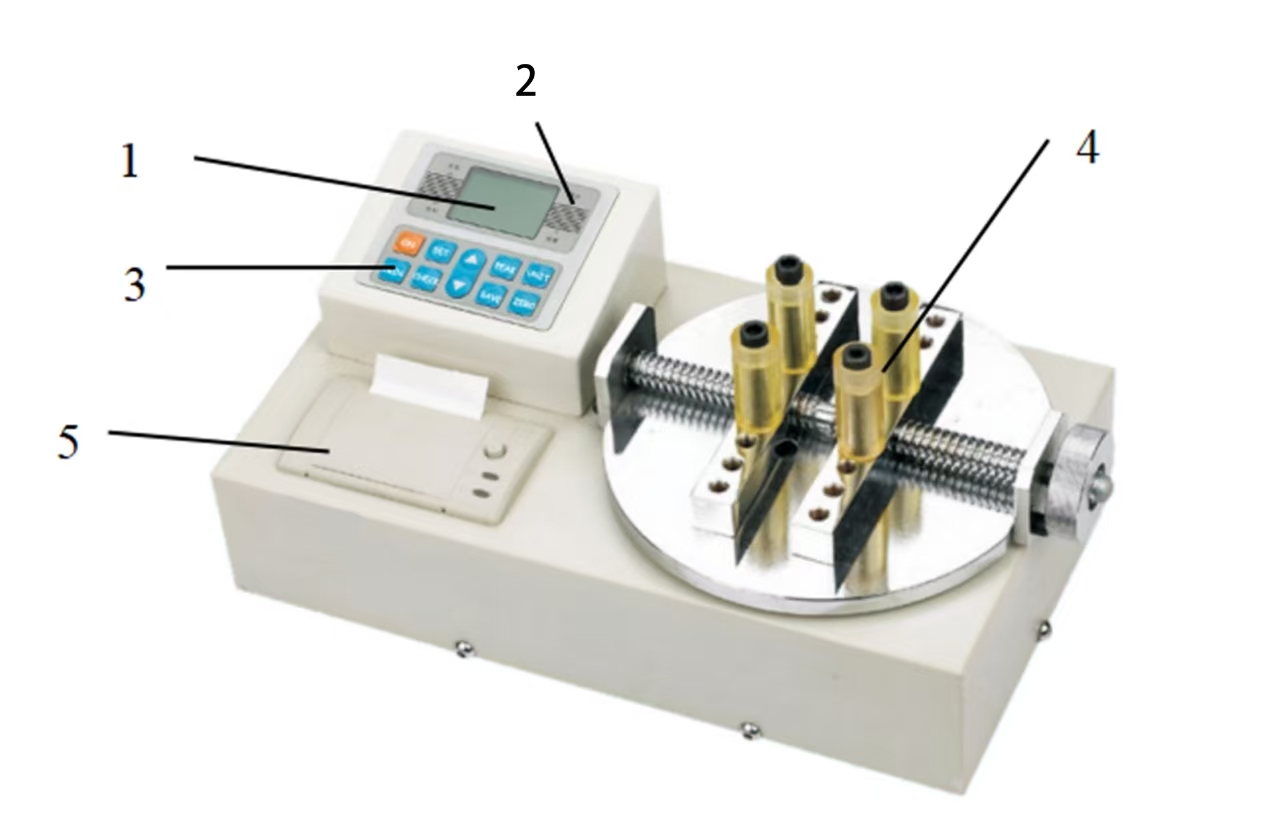

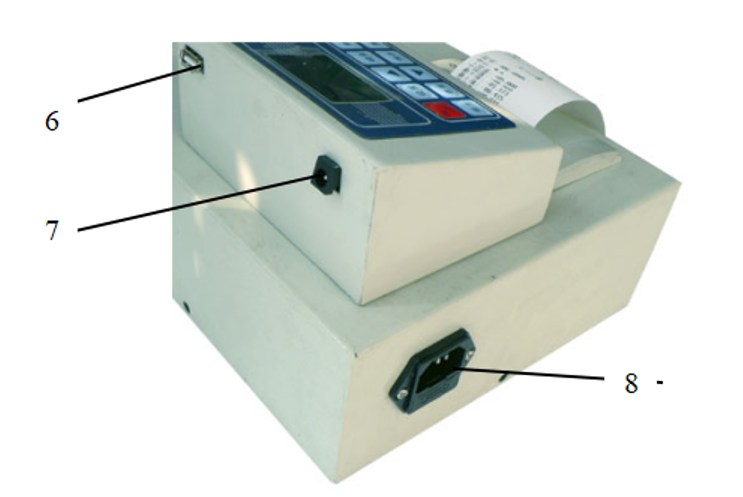

Product structure
