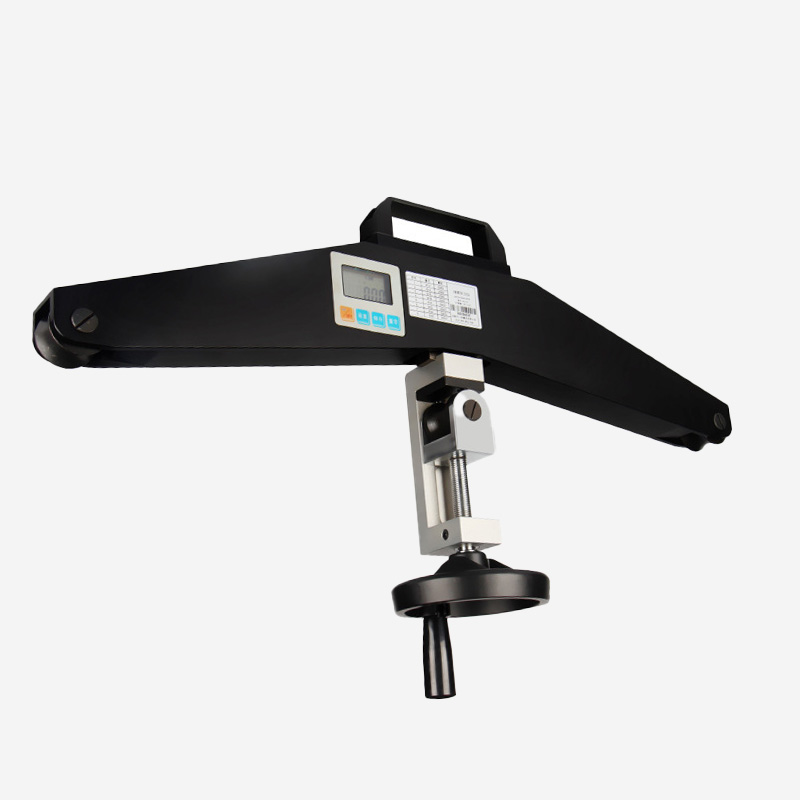

Cable Tensiometer, Wire Rope Tension tester wire rope tension meter
product detail
Features
● The rope structure with tension force can be measured directly without disassembly.
● Light weight, simple structure, convenient operation, suitable for any occasion.
● Stable performance, high measurement accuracy, with the system automatic compensation function, when the measured cable specifications and dynamometer cable number specifications are the same, the accuracy within the rated range can reach 2%.
● With fifteen kinds of wire diameter measurement function, wider measurement range.
● Scope of application: Suitable for flexible and stretched cables. Such as various steel ropes, high-strength ropes, etc.
● Accuracy level: 2 to 6% of the MAX function (depending on the form and characteristics of the rope).
● Rope diameter: ¢ 6 ~ ¢ 40mm.
Product Specification
| Model specifications | NSZ-20 | NSZ-50 | NSZ-100 | NSZ-200 |
| MAX load value (KN) | 20 | 50 | 100 | 200 |
| Load division value (KN) | 0.01 | 0.01 | 0.1 | 0.1 |
| Output Interface | Rs232 nine-hole socket | |||
| power supply | Rechargeable battery charger (charging voltage 100V ~ 240V) | |||
| Operating temperature | 5 ℃ ~ 35 ℃ | |||
| Transport temperature | -10 ℃ ~ 60 ℃ | |||
| Relative humidity | 15% ~ 80% RH | |||
| working environment | No vibration source and corrosive medium around | |||
| net weight | 5kg | |||
| Dimensions | 650 × 375 × 100 | |||
