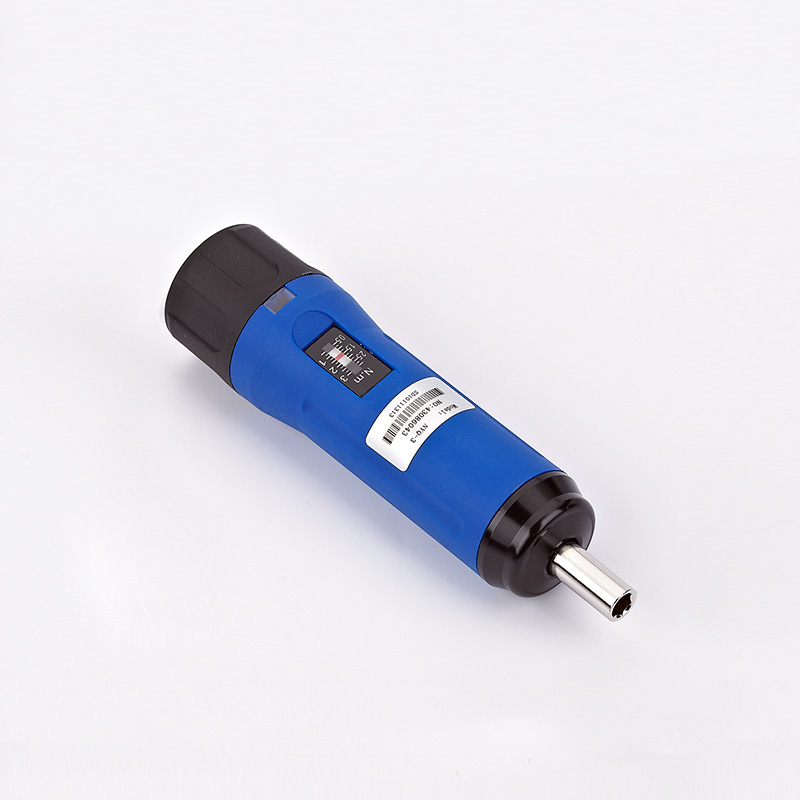

Adjustable Torque Screwdriver for Bike, Car Maintenance and Mounting

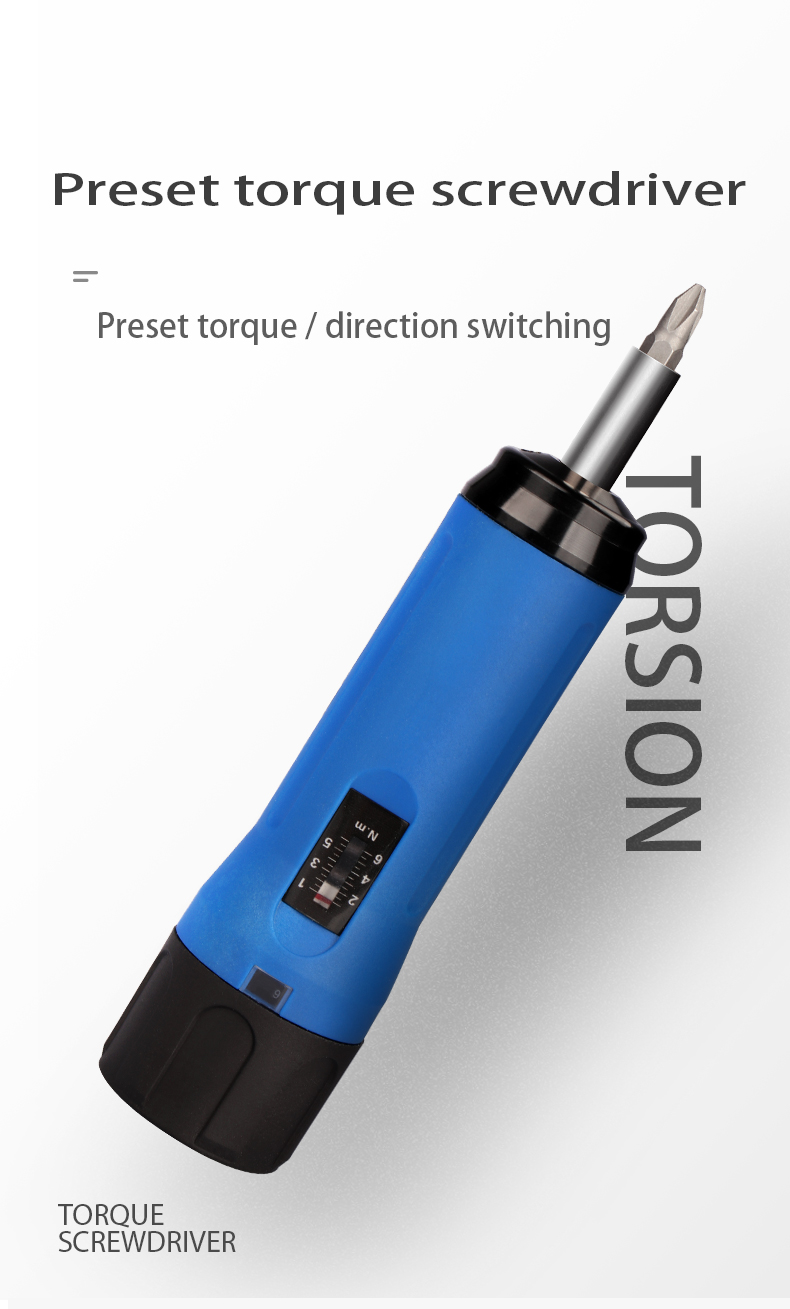

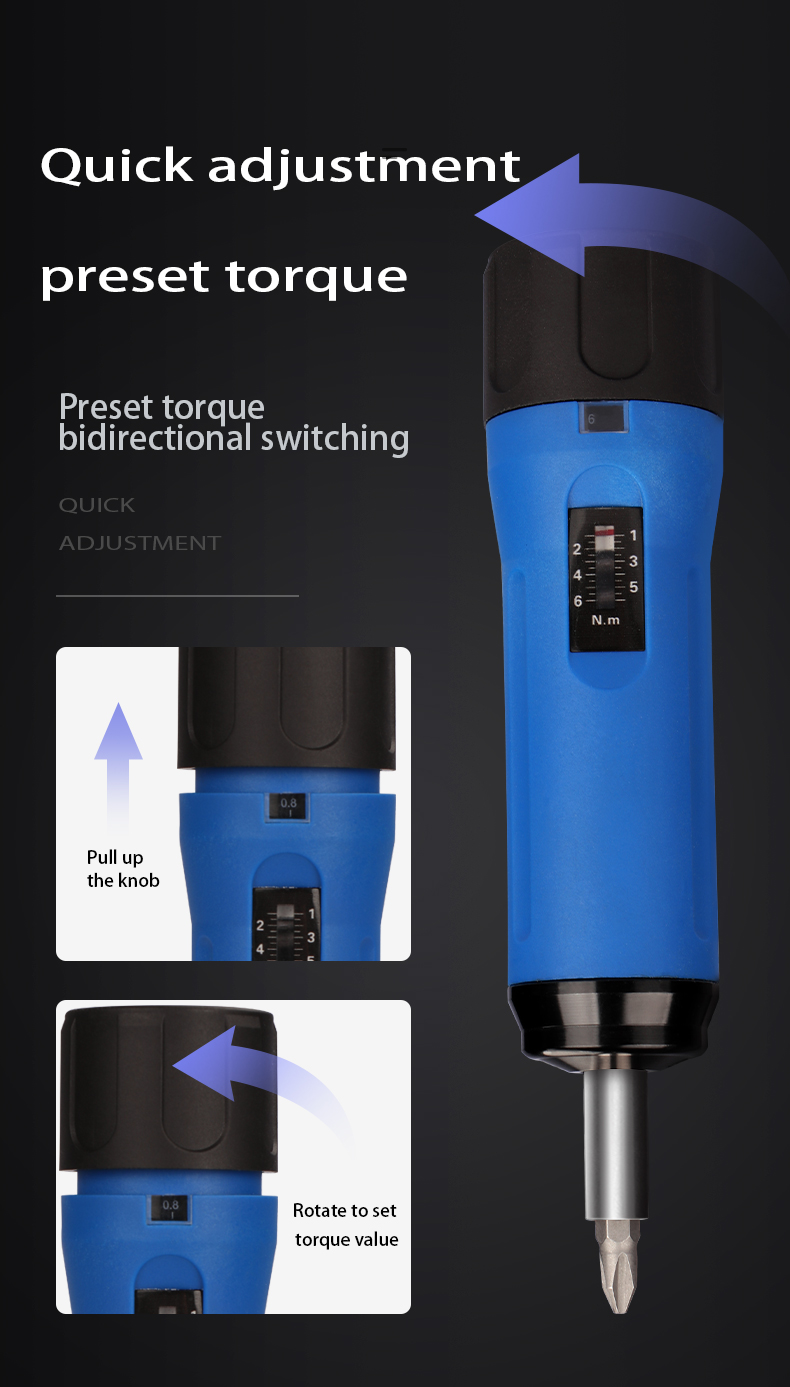

The economical preset torque screwdriver is used for tightening threaded workpieces with torque requirements. The product can be operated clockwise or counterclockwise, and the torque value can be preset. If the screwdriver idles beyond the set value, priority can be given to controlling thread tightening.
It is suitable for precision instrument screw locking, circuit board fixing and so on, which have higher requirements for screw locking, and the situations where high locking accuracy is required. Widely used in various industries such as electrical, light industry, mechanical manufacturing, scientific research structures and other industries.

Product Detail

Picture Details

product detail

Features

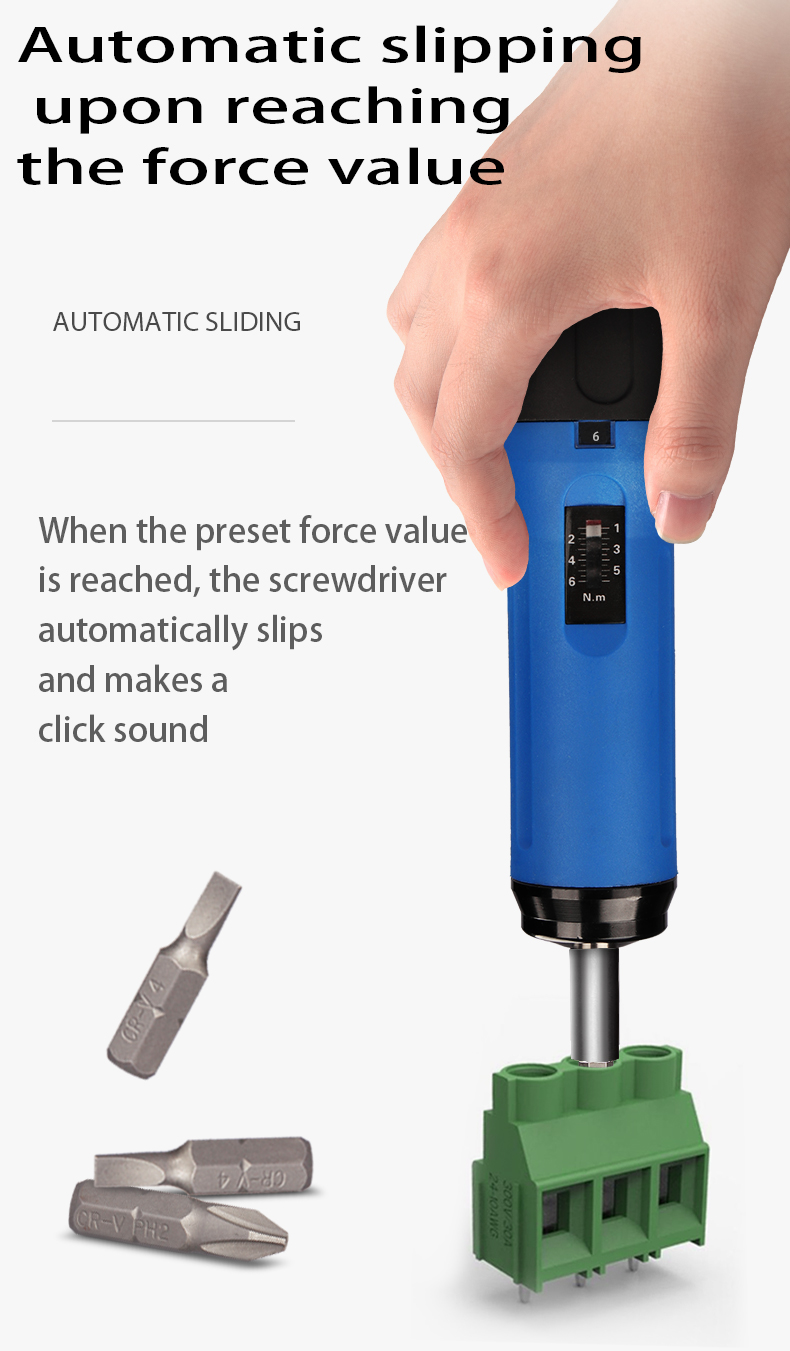

● Can preset torque value and have sound alarm prompt. When the tightening torque of the fastener reaches the preset torque value, it can automatically send out a signal “click"sound, accompanied by obvious hand feel vibration, indicating that the work is completed. After the force is released, the relevant parts are reset automatically

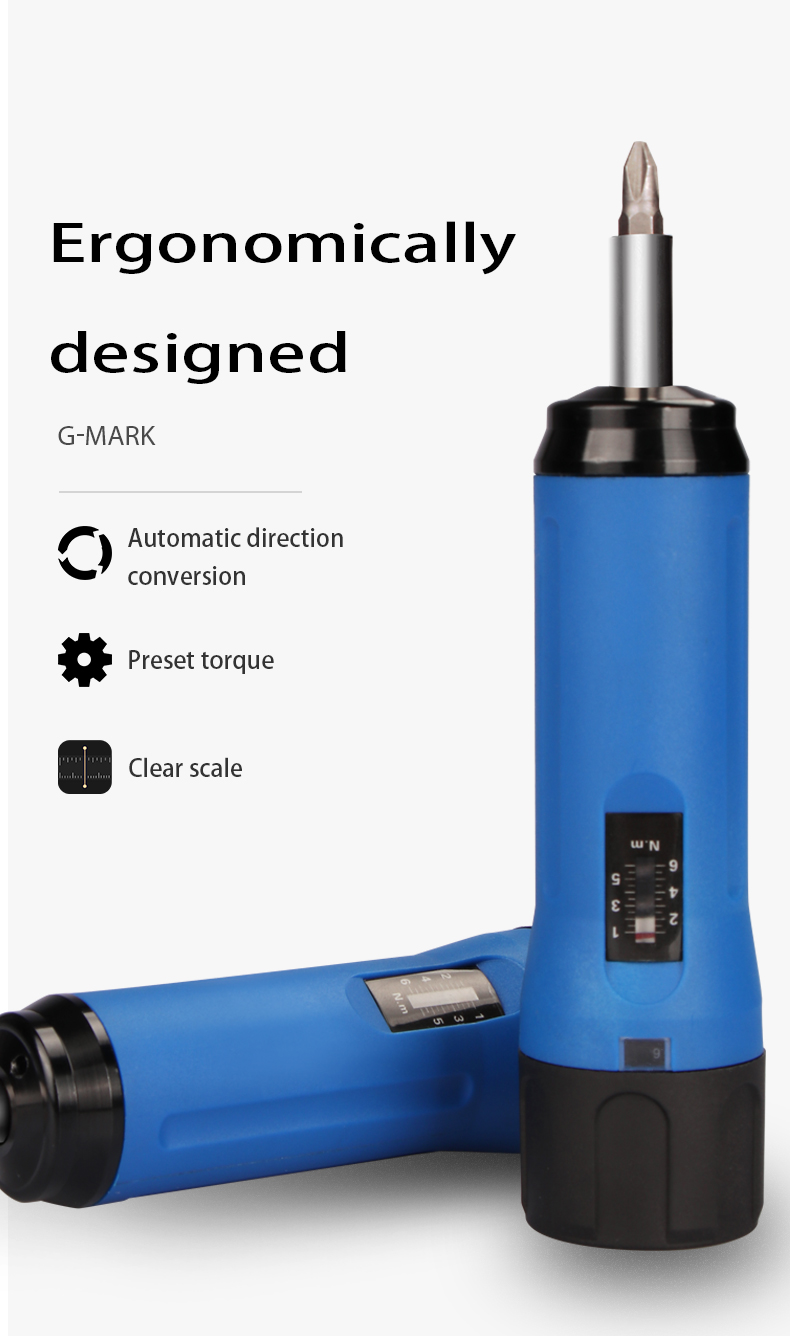

● Automatically switch in the reverse direction, both sides to use simple and convenient.

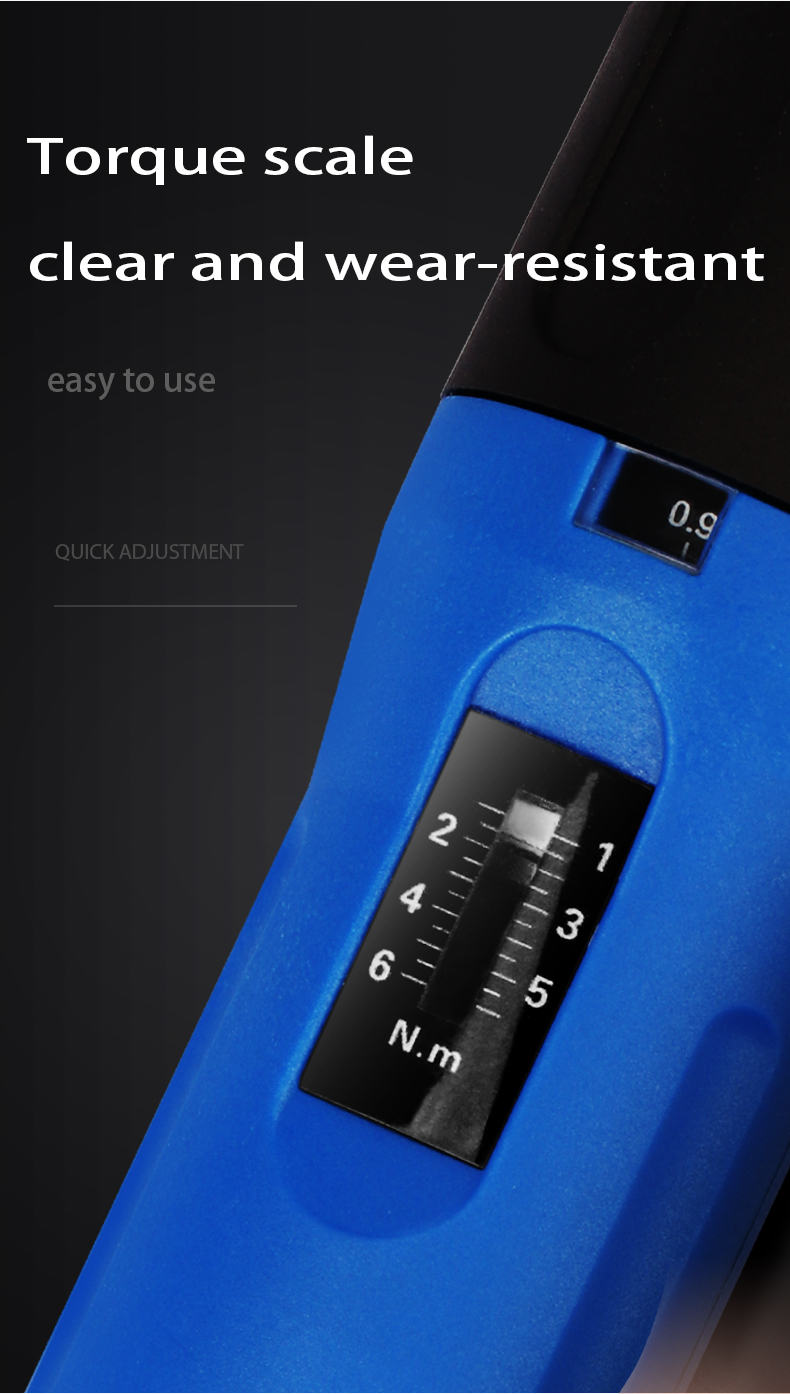

● Use straight line scale plus secondary scale,the scale line reading is clear and accurate.

● Jacket is made of nylon material, strong and wear-resistant.;

● This torque screwdriver to implement GB/T15729-relevant provisions of2008

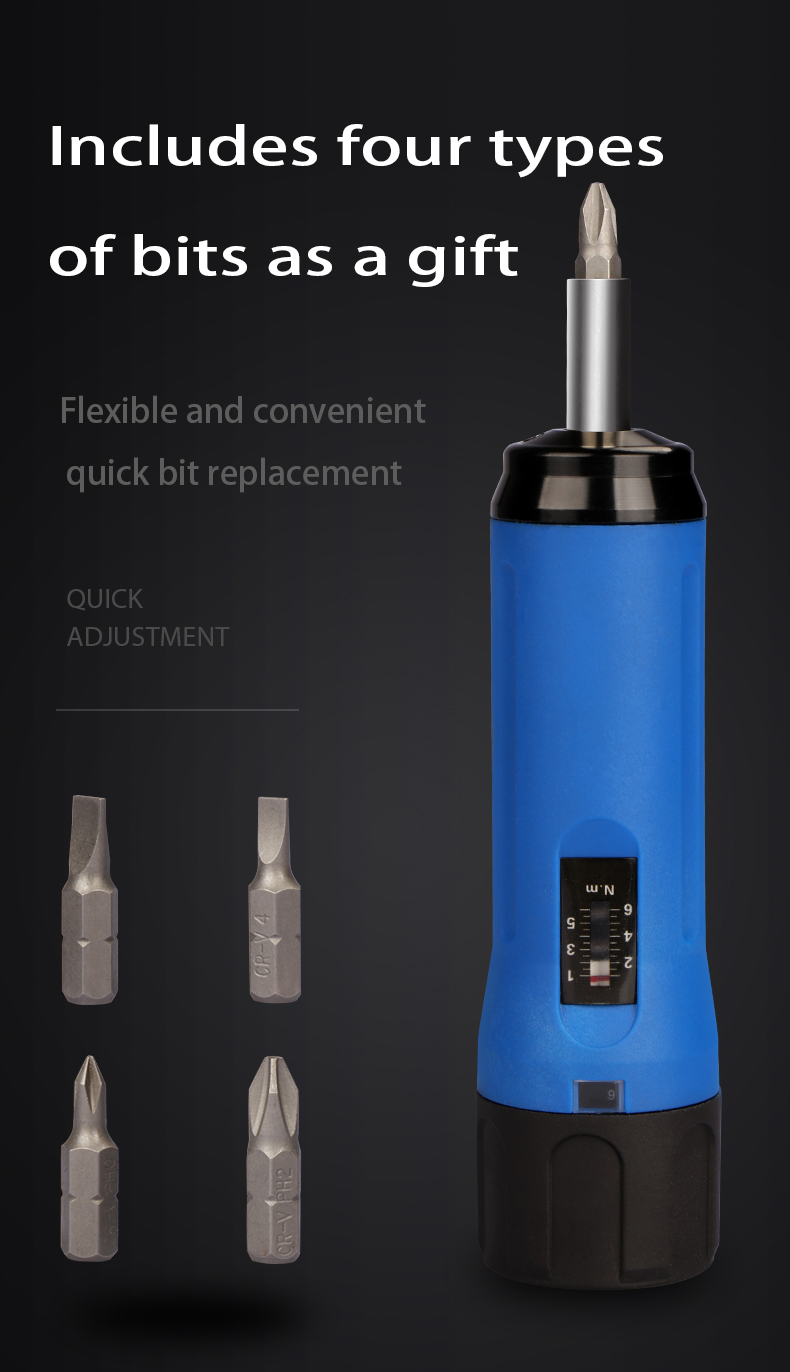

● Various screwdriver heads to be optioned, so that the customer can replace the screwdriver head according to the items they want to measure.

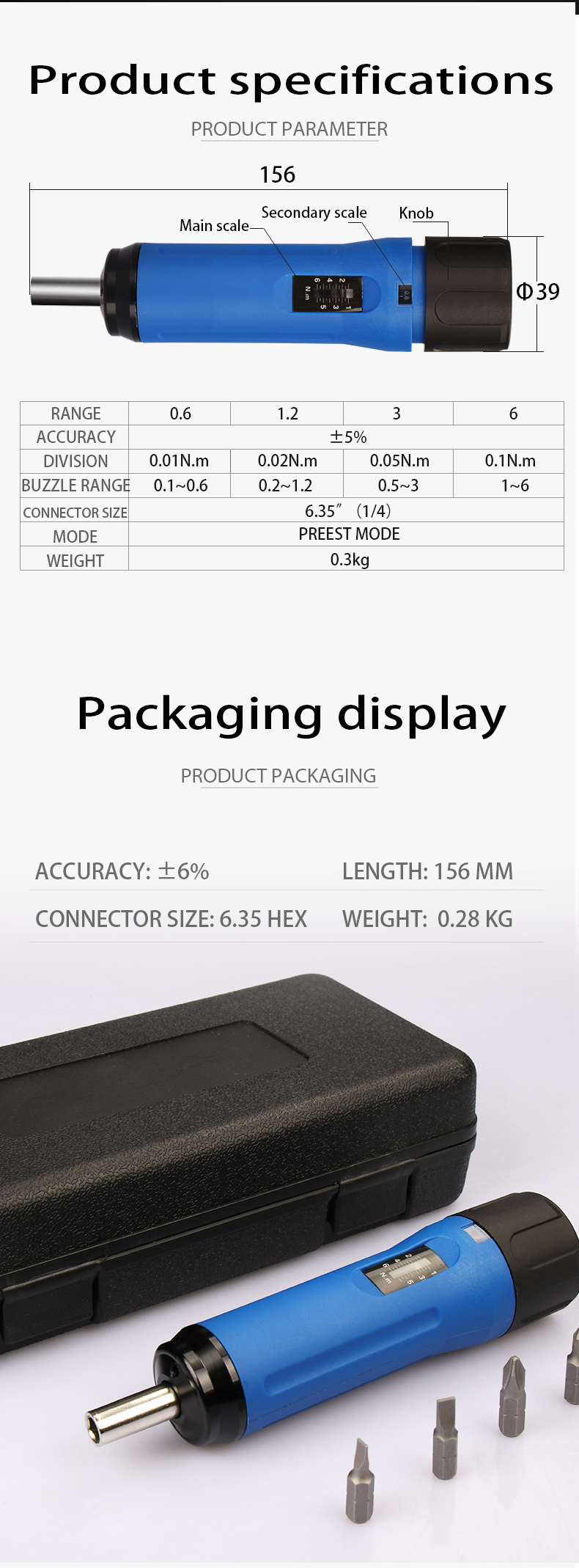

Product specification

Model	NYQ-0.6	NYQ-1.2	NYQ-3	NYQ-6
Brand	NEWJIELI
Customized support	OEM
Range(N.m)	0.1-0.6	0.2-1.2	0.5-3	1-6
Unit	N.m
Division value（N.m）	0.01	0.02	0.05	0.1
Precision	±6%
Length	156mm
Gross weight(kg)	0.275		0.4
Screw Head Type	HEX
Joint size	6.35 Hexagon
Handle outer diameter	∅39mm
Material	Alloy Steel
Place of origin	Zhejiang, China
Warranty	1 year
Package Quantity	Up to order
Package Sizes	Up to quantities

Note:

● This product is only suitable for tightening and detection within the calibration range value.

● Do not strongly impact use are absolutely

● Do not allowed to act as other tools.

● Do not continue the force after the screwdriver "clicks" the alarm.

● The measured value of this product has been corrected, it is not allowed to is assemble privately, so as not to cause errors in the measurement accuracy.After the is finished,the torsion value should be adjusted to zero position to maintain the lifting accuracy and prolong the service life.

● This product do not contact with acid.alkali,and its corrosive gas.
