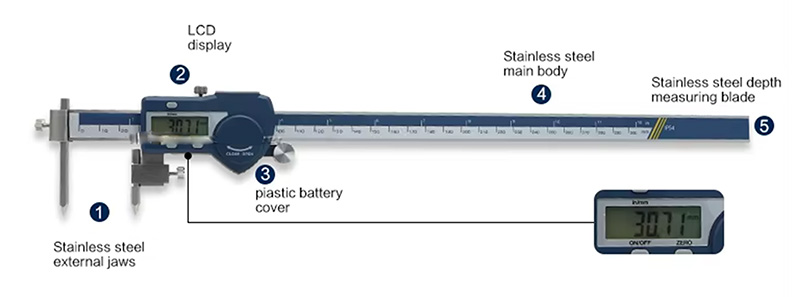

300mm Center distance digital caliper Electronic caliper with LCD display

The Center Distance Digital Caliper is designed for precise measurement of the center-to-center distance between holes, shafts, and other components. Featuring a clear digital display, it ensures quick and accurate readings, making it ideal for mechanical, engineering, and woodworking applications with adjustable jaws and a durable construction.

Product Detail

Features

● Hardened stainless steel main scale and measuring jaws
● knurled locking screw for more convenient measurement and reading
● Relative/absolute measurement interchange at any position
● Higher quality glass fixed grid, stable, durable and high accuracy
● Quick display of the measured value on LCD screen, no over-speed error
● Three function button, with USB interface
● With on-off power button, automatic power off, waterproof IP54
● Zero-setting at any position, mm/inch measurement system conversion
● Direct measurement for center distance between holes ( Φ>1 ), by adjusting the height of left measuring bar and moving the caliper frame
● Measurement for distance between plane and hole center

Product Specification

Model	NZXK-150	NZXK-200	NZXK-300
Measuring Range	0-150mm	0-200mm	0-300mm
Resolution	0.01mm	0.01mm	0.01mm
Accuracy	±0.03mm	±0.03mm	±0.04mm
Battery Type	3V lithium CR2032	3V lithium CR2032	3V lithium CR2032
Capacitive Grid Transducer	Glass fixed grid	Glass fixed grid	Glass fixed grid
Protection	IP54	IP54	IP54
Place of Origin	Zhejiang, China	Zhejiang, China	Zhejiang, China
Warranty	1 year	1 year	1 year
Customized Support	OEM	OEM	OEM
Certificate	CE, RoHS, ISO 9001	CE, RoHS, ISO 9001	CE, RoHS, ISO 9001
Display	LCD	LCD	LCD
Data Output	Yes	Yes	Yes
Battery Included	No	No	No
Package	Plastic Box	Plastic Box	Plastic Box
