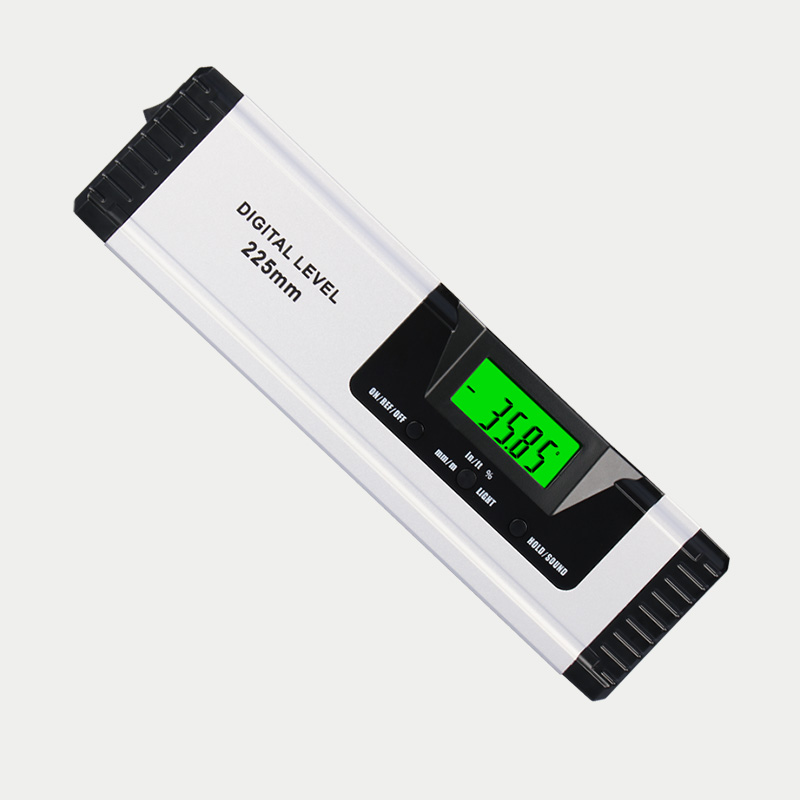

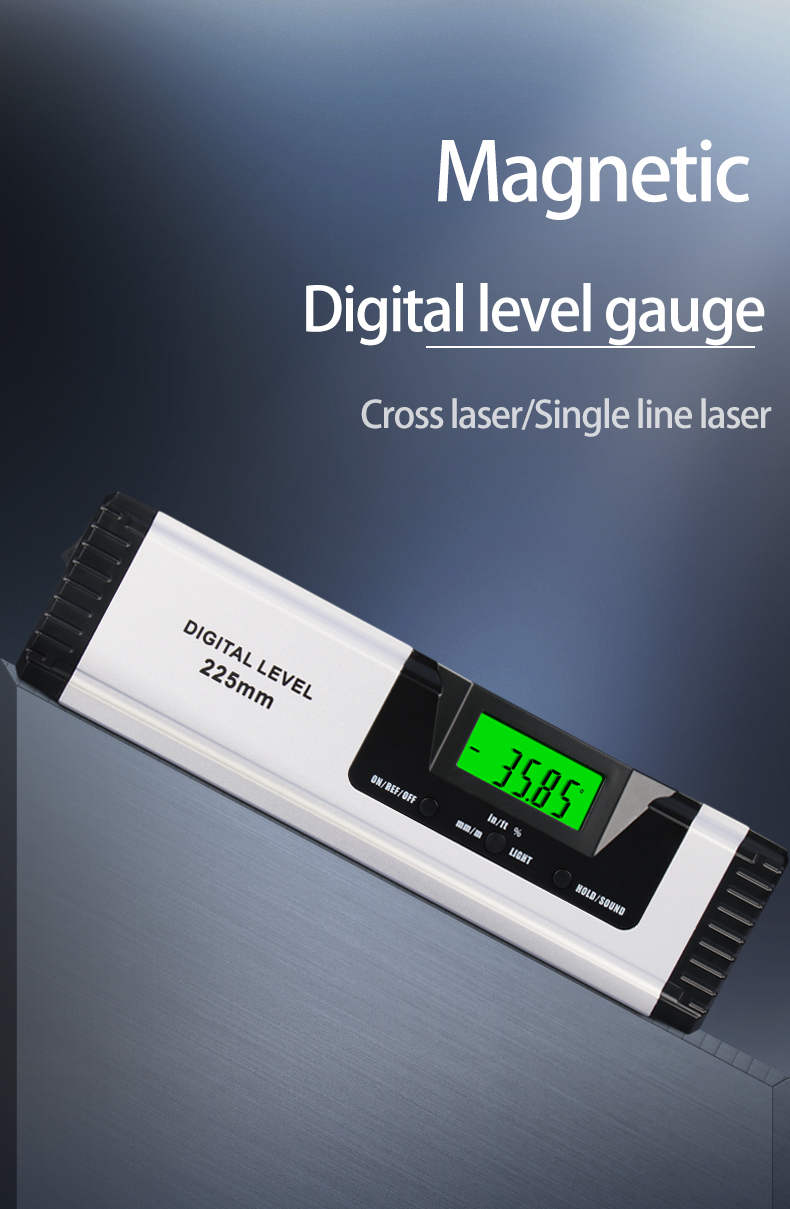

225 400 600 1000mm Aluminum Alloy Magnetic Laser Digital Level Protractor
product detail
Features
- High strength aluminum alloy ruler
- Digital display, clear and intuitive, with high accuracy.

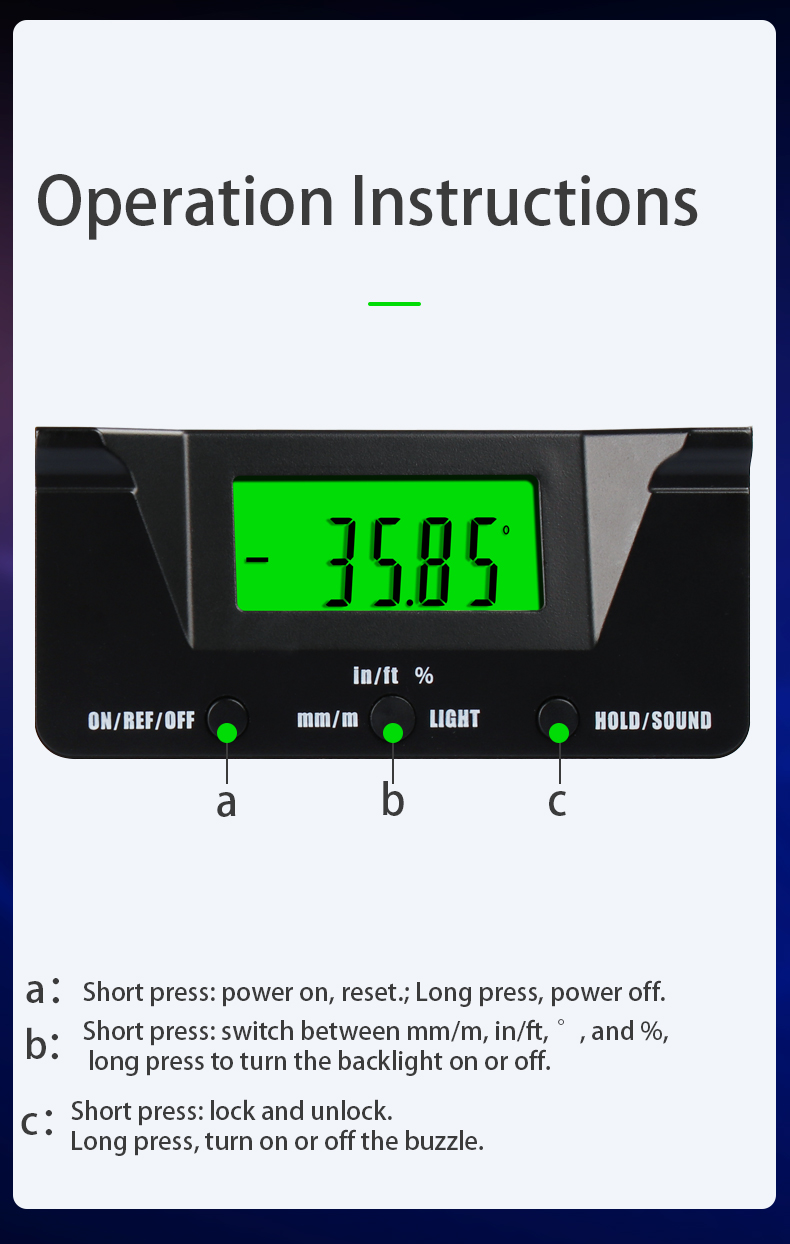

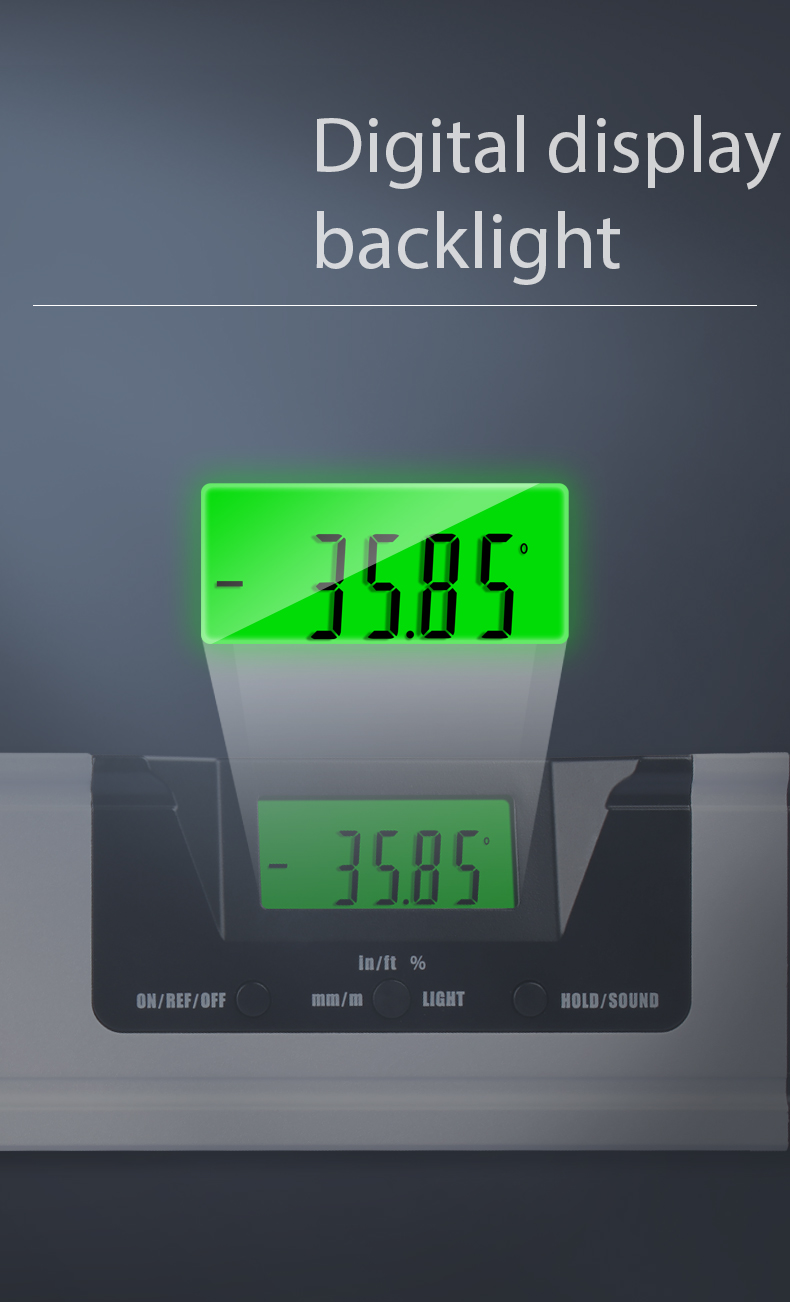

- The LCD screen is illuminated and can be used normally in a dark environment. Long press the reset button to realize illuminate switch.
- The digital level will be automatic power off in 3 minutes.

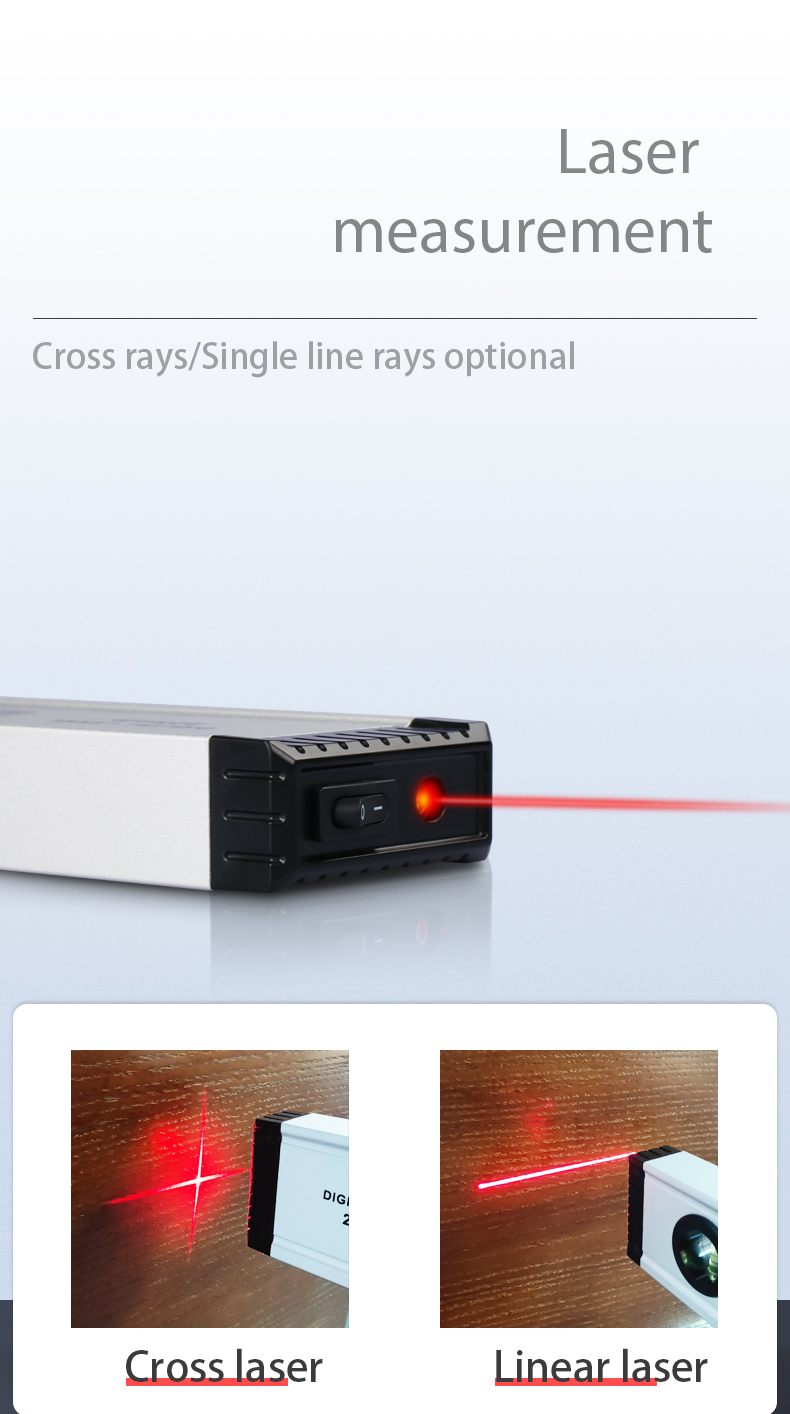

- With a laser emitter, it could do horizontal correction and scribing.

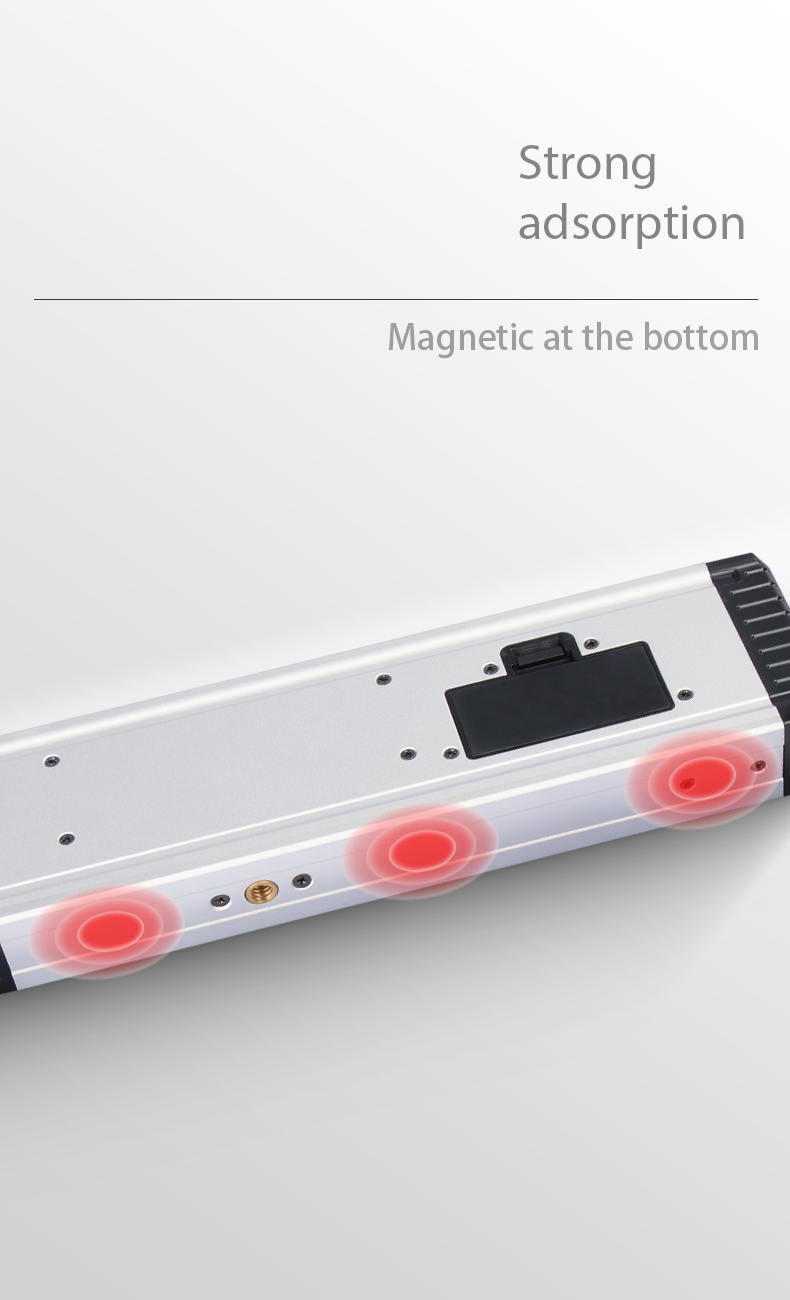

- There are magnets on the bottom.
- There are two versions available, with laser or without laser .Please order the one you need before you purchase. The magnetic strip at the bottom can be adsorbed to the working face and the measurement is more accurate.

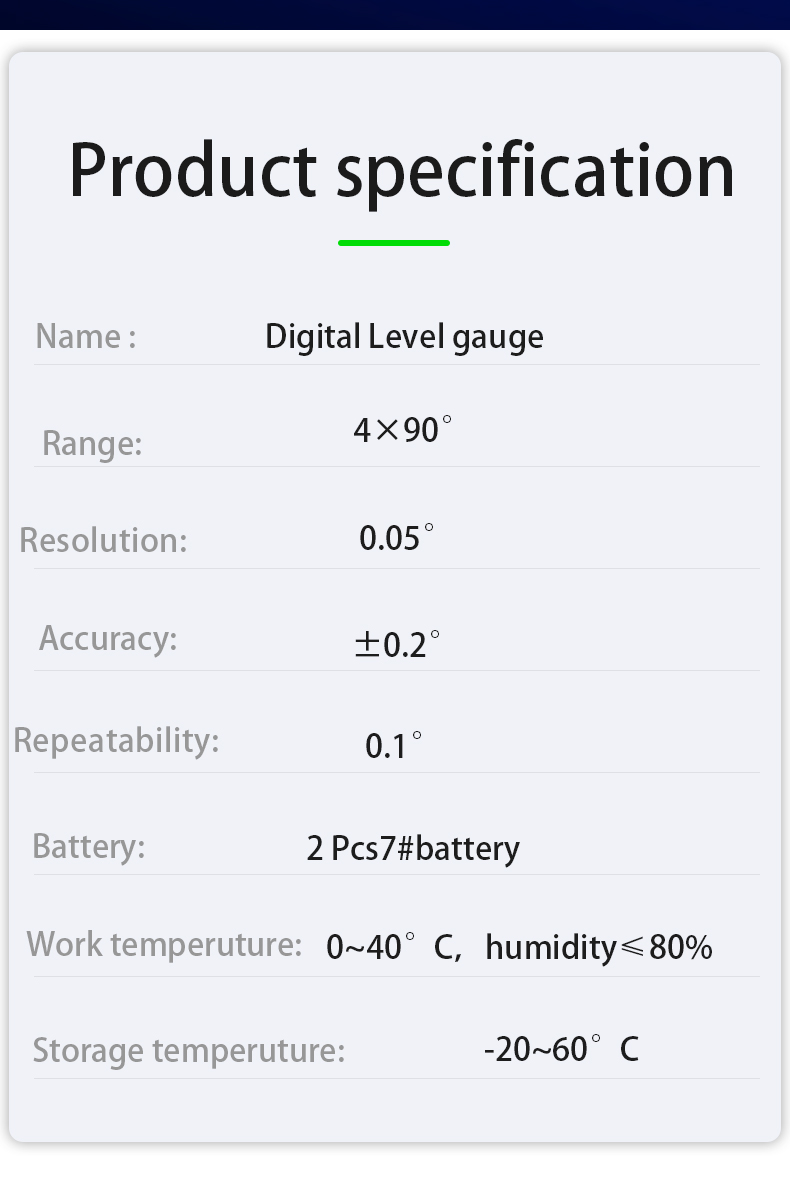

Product specifications
|
Model |
NSPY-225 |
NSPY-400 |
NSPY-600 |
NSPY-1000 |
|
Brand |
NEWJIELI |
|||
|
Laser |
No/Yes |
|||
|

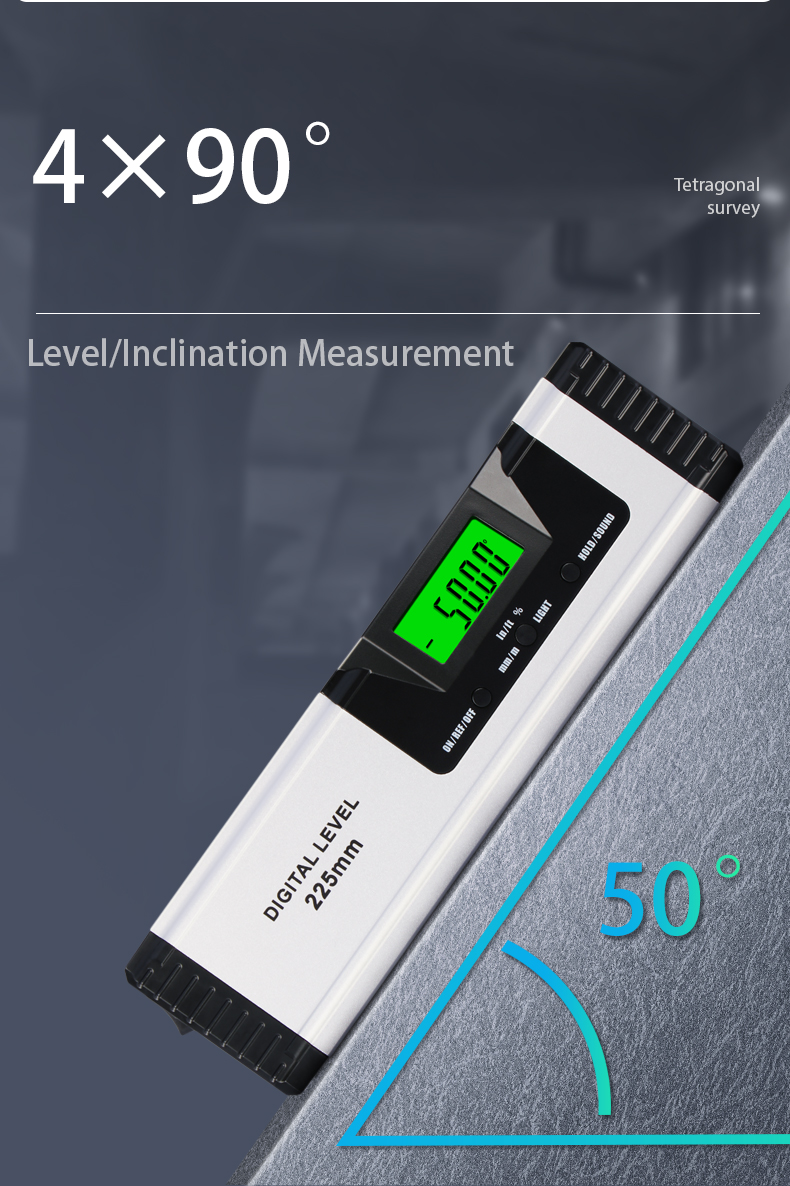

Measuring range |
4×90°; 0-360° |
|||
|
Magnet |
Yes |
|||
|
Length(mm) |
225 |
400 |
600 |
1000 |
|
Resolution |
5% |
|||
|
Accuracy |
±0.2° |
|||
|
Repeatability |
0.1° |
|||
|
Material |
Aluminum Alloy |
|||
|

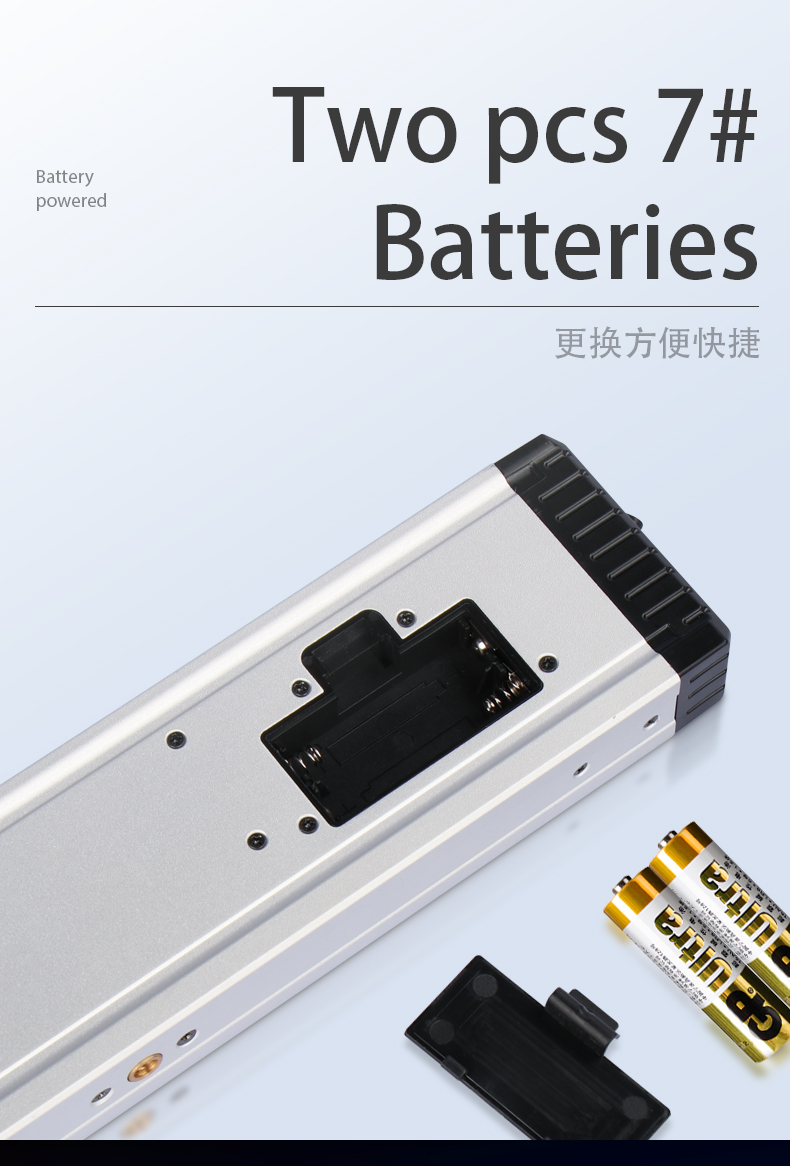

Battery |
2*AAA Batteries |
|||
|
Work temperature |
0-40℃ |
|||
|
Work humidity |
≤80%
|
|||
|
Storage temperature |
-20-60℃ |
|||
|
Grade |
Industrial |
|||
|
Warranty |
1 |
|||
|
Place of Origin |
Zhejiang, China |
|||
Product Structure

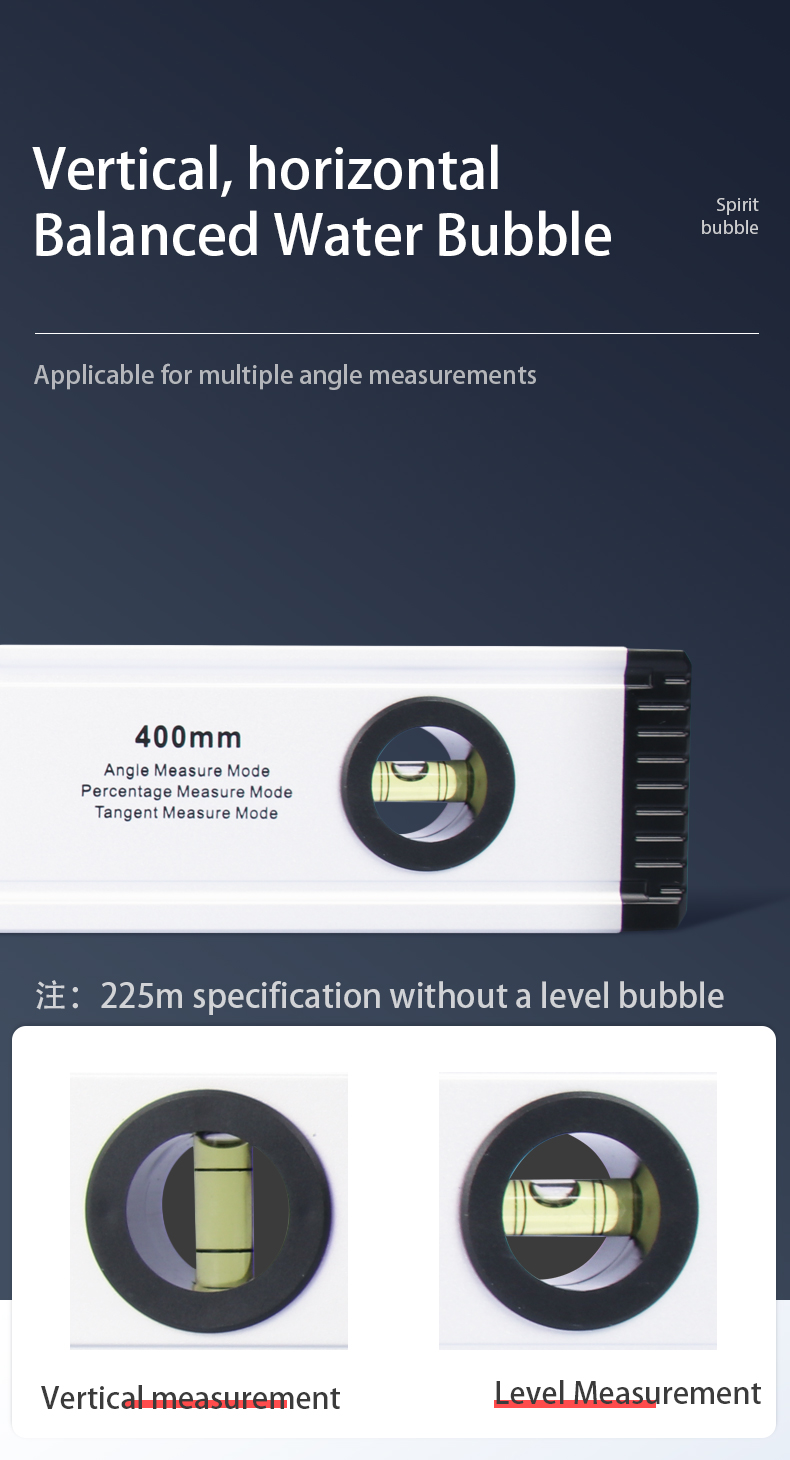

Picture Details
