Salt Spray Corrosion Test Kit for Reliable Material Testing
Features
Spray method: A (continuous salt spray testing machine) ; B (programmable salt spray testing machine)
● The full detection system can be displayed with lights when a fault occurs
● The whole machine is made of imported 5MMPVC board, with strong structure, never deformed, and resistant to acid and alkali, high temperature and never aging
● The precision glass nozzle mist spreads evenly and naturally falls on the test piece to ensure that there is no crystalline salt blockage
● The controllers are all on the same board, which is easy to operate and easy to see at a glance
● It is equipped with double temperature protection, and the water level is insufficient to warn to ensure the safety of use
● The imported temperature controller has manual and automatic control mode, using digital display, PID control, error ±0.1°C, and the maximum setting time can reach 999HrS
● The laboratory adopts the direct heating method of steam, which is fast and uniform in heating speed and shortens the standby time
● The spray tower is equipped with a conical disperser, which has the functions of guiding the fog, adjusting the fog volume and evenly falling the fog
● The pressure drum adopts Henry's law to heat and humidify, and provides the humidity required by the laboratory
● The upper cover of the test tank of the oversized model is automatically opened and closed by a pneumatic cylinder, which is easy to operate and has good safety
● After the test is completed, it has an automatic defogging device, which can clearly observe the samples in the laboratory
Product specification
| Item | Model | ||||
| 60 | 90 | 120 | 160 | 200t | |
| Inner box dimensions | 600*450*400 | 900*600*500 | 1200*1000*500 | 1600*1000*600 | 2000*1000*600 |
| Outer box dimensions | 1075*630*1185 | 1400*800*1385 | 1900*1400*1300 | 2250*1350*1300 | 2700*1200*1485 |
| Laboratory temperature | Salt water test 35°C土 1°C | ||||
| Saturation barrel temperature | Salt water test 47C± 1°C | ||||
| pH | Salt water test (6.5~ 7.2)/Acid test (3.0~ 3.2) | ||||
| Salt water temperature | 35°C土1°C sodium chloride solution concentration 5% | ||||
| Compressed air pressure | 1.00±0.01kgf/c㎡ | ||||
| Spray volume | 1.0~2.0ml/80c㎡ /h | ||||
| Laboratory relative humidity | 85%以上 | ||||
| Spray method | Continuous spraying; Programmable spraying (including continuous spraying and intermittent spraying) | ||||
| Laboratory volume | 108L | 270L | 720L | 800L | 1200L |
| Brine tank volume | 15L | 25L | 35L | 45L | 45L |
| Power supply | 1∮, AC220V10A | 1∮, AC220V15A | 1∮, AC220V20A | 1∮, AC220V,20A | 1∮, AC220V,20A |

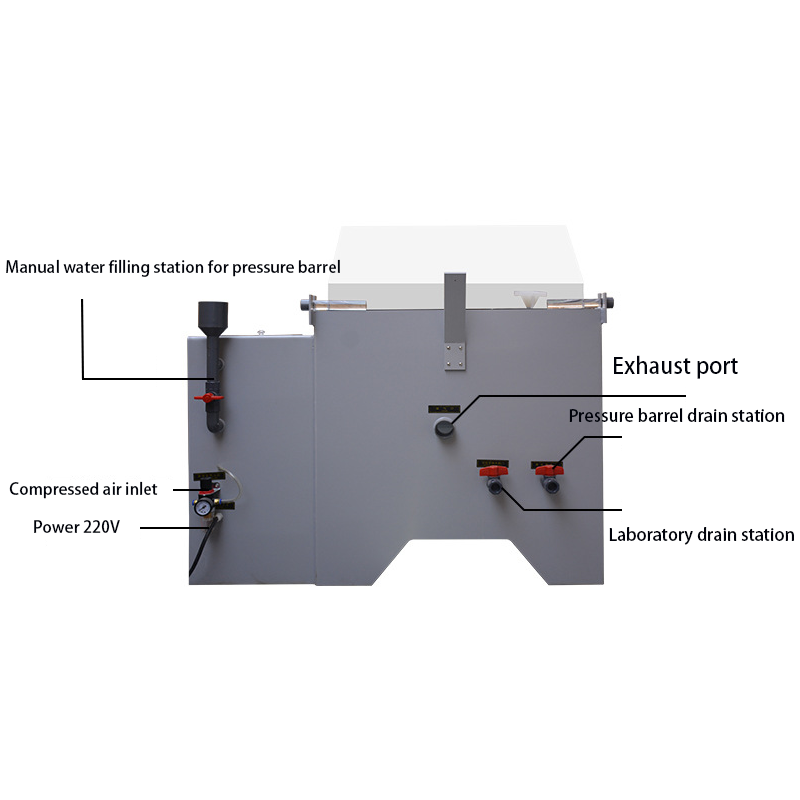

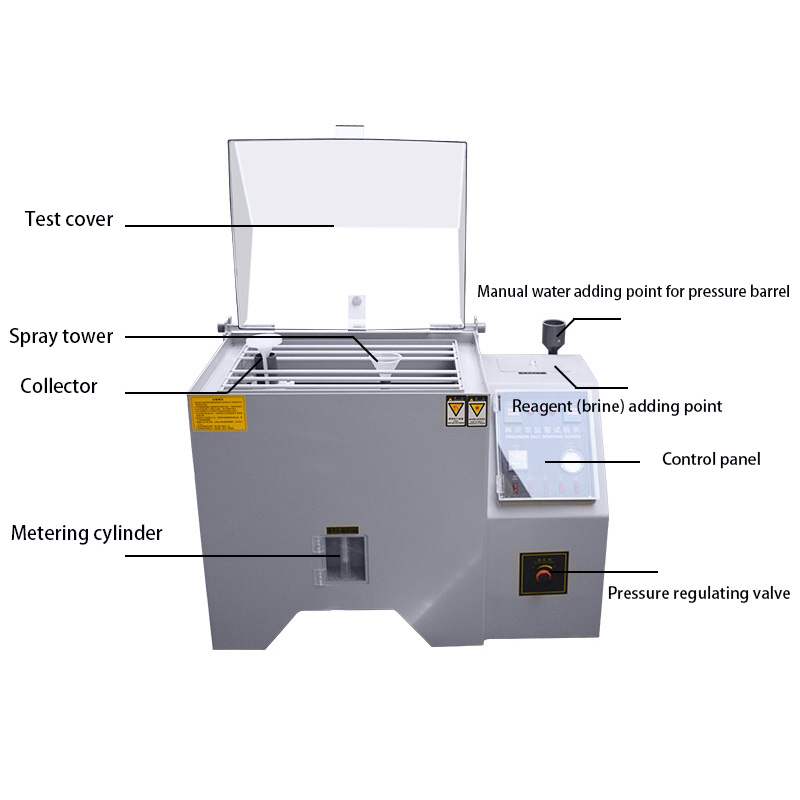

Product Structure
