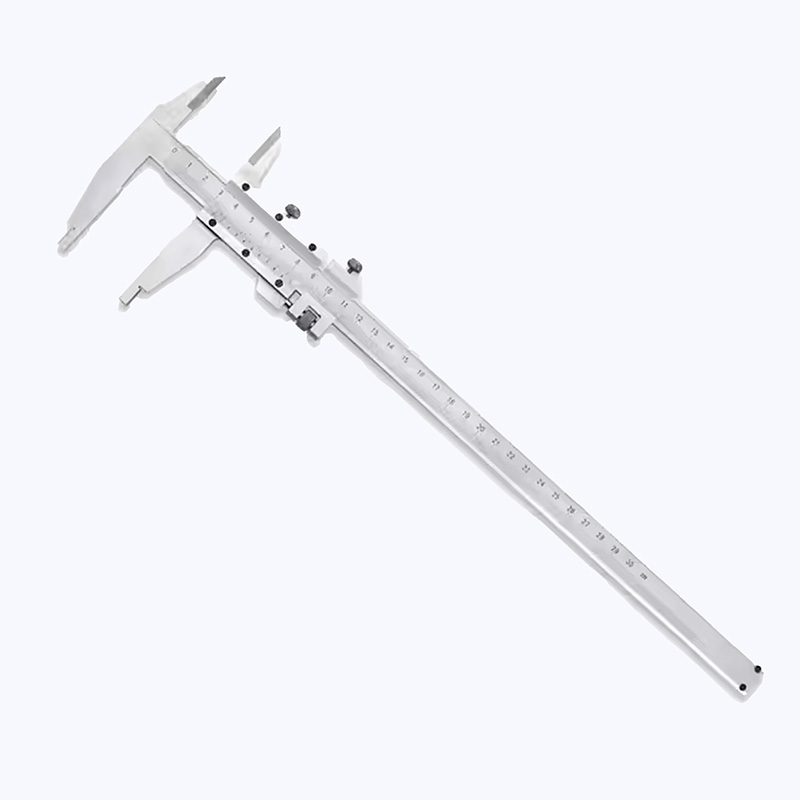

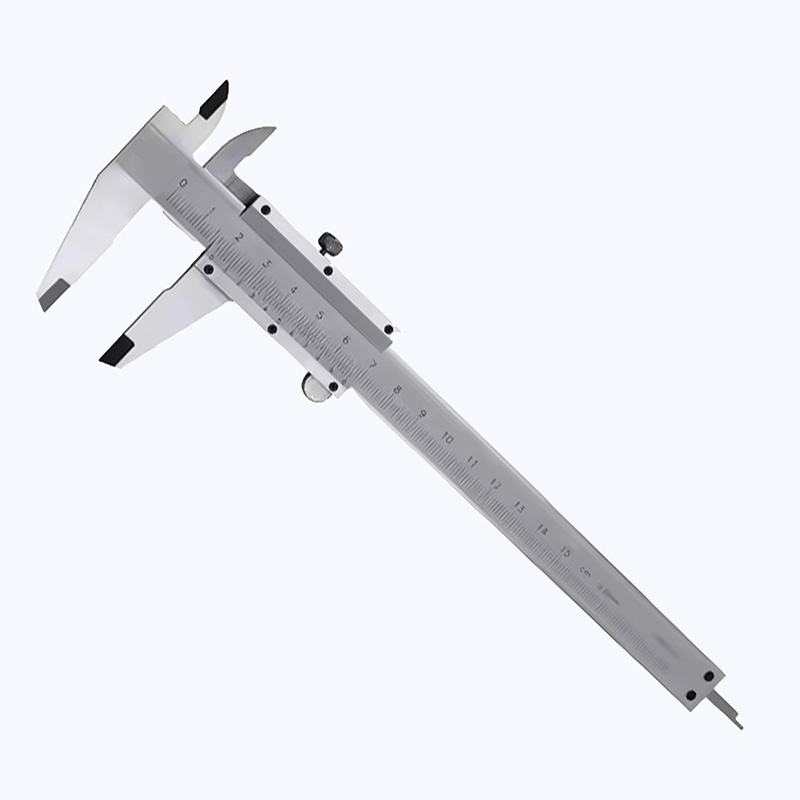

0.02mm High accuracy vernier caliper stainless steel Dial caliper
Features
● Material is stainless steel, and all measuring plane is quenching, grinding
● Accurate laser scribed graduation guarantees more accurate measuring
● Thumb roll &knurled locking screw makes measurement and reading more convenient
● With a fine-adjustment carriage to fine-feed the slider for heavy duty series
Product Specification
| Model Number | Measuring Range | Resolution | Accuracy |
|---|---|---|---|
| NZYK-500 | 0-500mm | 0.02mm | ±0.05mm |
| NZYK-600 | 0-600mm | 0.02mm | ±0.07mm |
| NZYK-1000 | 0-1000mm | 0.02mm | ±0.07mm |
| NZYK-1500 | 0-1500mm | 0.02mm | ±0.10mm |
| NZYK-2000 | 0-2000mm | 0.02mm | ±0.14mm |
| NZYK-2500 | 0-2500mm | 0.02mm | ±0.18mm |
